Goliath - 4AFMID Stainless Steel Hand Winch - 190kg SWL

Goliath SKU: 151-5-1

1 8

AFID - Stainless Steel (Grade 316L) Winch Lifting capacity 190 kg to 900 kg Ideal for marine boating leisure pharmaceutical and clean room applications. Read More

€602,36

RRP TODAY'S PRICE €602,36

In stock

Tax included.

Product variants

View more goliath afid stainless steel winches

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

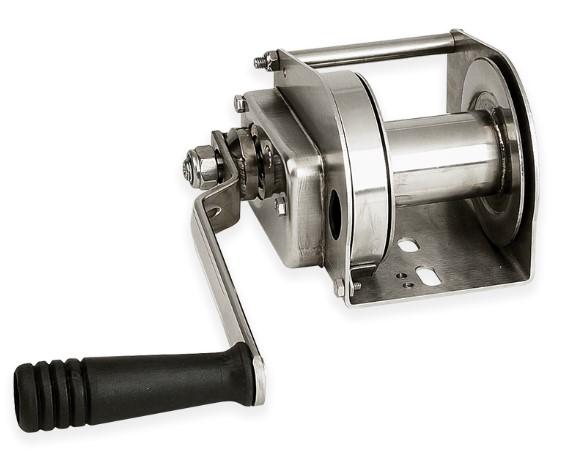

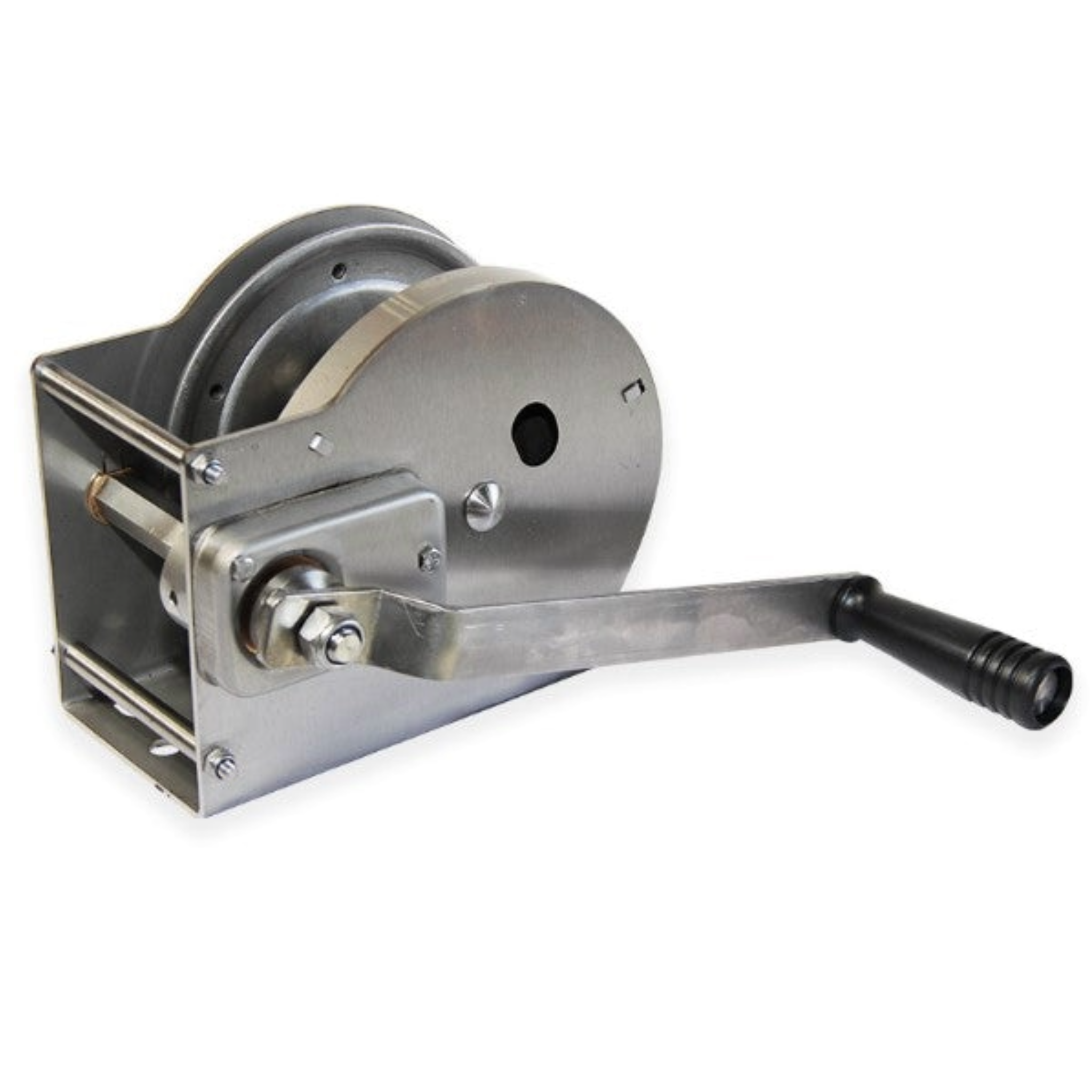

4AFMID - Goliath Stainless Steel (316L) Hand Winch

Lifting capacity 190kg

Stainless Steel 316L material, ideal for marine and other outdoor applications in corrosive environments.

Can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate. (note winch plate is zinc plated finish only)

Key Features

Lightweight
Smooth running and high efficiency through spur gearing
Automatic load pressure brake
Stamped gears with gear protection
Complies with BS EN 13157
For use with wire rope (available as extra cost option contact our sales department for a personalised quote)
Haulage load capacity based on 20% incline
Minimum load for the brake to function = 10kg

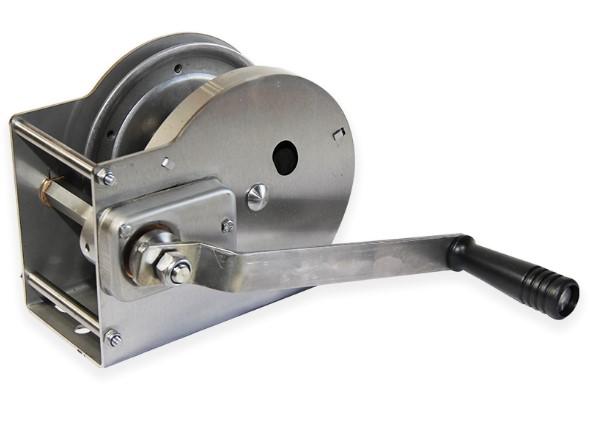

GO-AFID - Goliath Stainless Steel (316L) Wire Rope Winch
