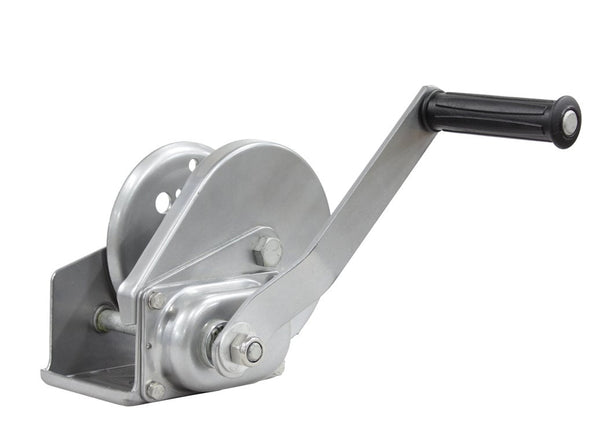

TIGER BRAKE HAND WINCH BHW OCP (CORROSION PROTECTION) WITH SINGLE or DUAL HANDLE OPTIONS

• OCP corrosion protection
• Compact, light-weight and rugged construction
• Very low operator effort required for easy operation
• For cable and strap
• High quality multi-purpose winch
• Gears and brakes fully covered to prevent dust, dirt and rain contamination
• Universal mounting plate
• Automatic load-actuated brake can hold the load in any position
• Heat treated gears
• Also offered as dual option

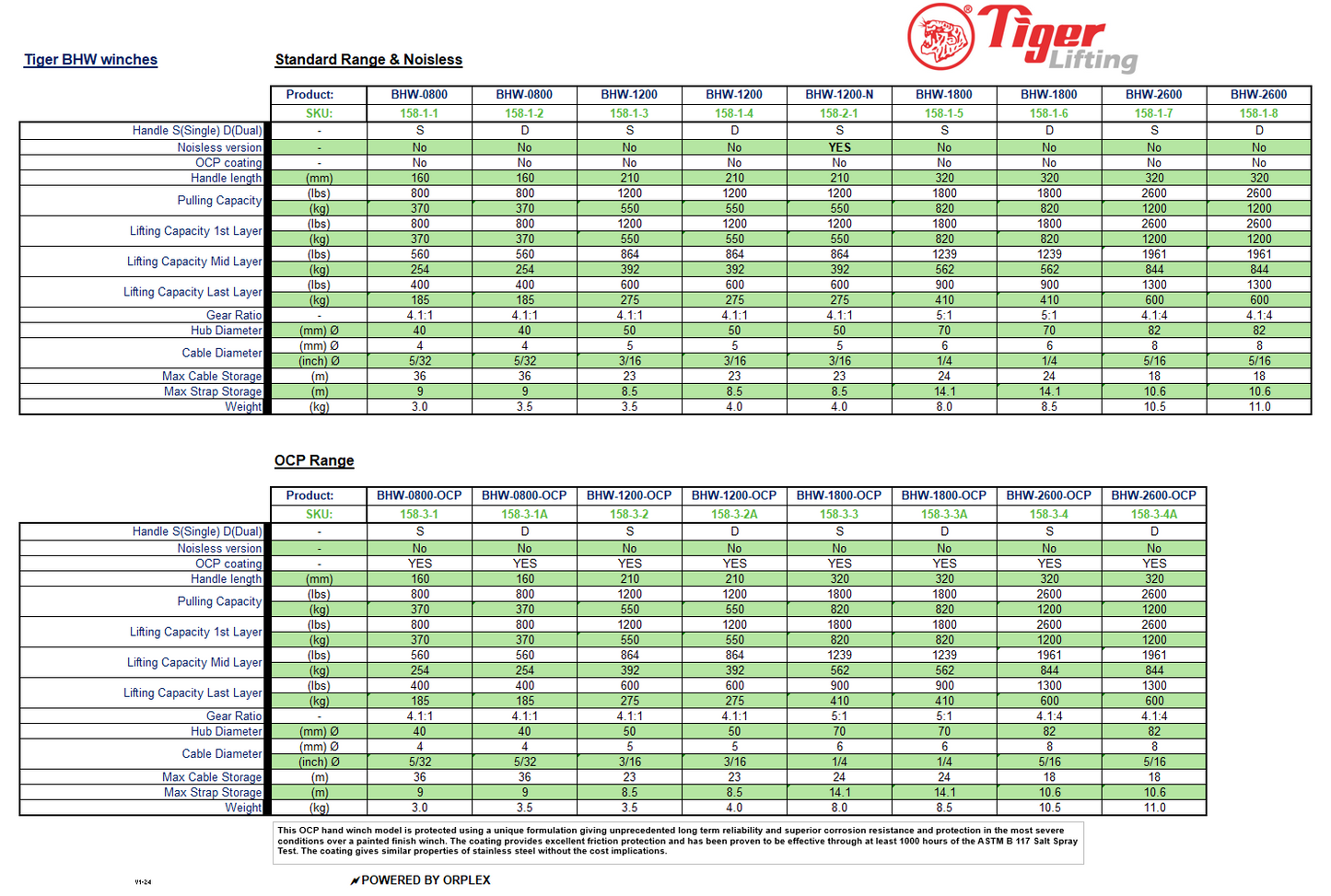

• Available as 800lb (360kg), 1200lb (550kg), 1800lb (800kg), and 2600lb (1180kg) maximum lifting capacity models.

What is OCP Protection?

This OCP hand winch model is protected using a unique formulation giving unprecedented long term reliability and superior corrosion resistance and protection in the most severe conditions over a painted finish winch. The coating provides excellent friction protection and has been proven to be effective through at least 1000 hours of the ASTM B 117 Salt Spray Test. The coating gives similar properties of stainless steel without the cost implications.

These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009.

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
