AFD Hand Winch 190kg to 1180kg - Zinc Finish

Goliath SKU: 151-1-1

1 6

AFD, Goliath Zinc Plated Hand Winch Goliath AFD winch Self-braking hoist winches for cable: - Lifting up to 1180 kg - Hauling up to 2500 kg - Quick cable... Read More

€93,34

RRP TODAY'S PRICE €93,34

In stock (17)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

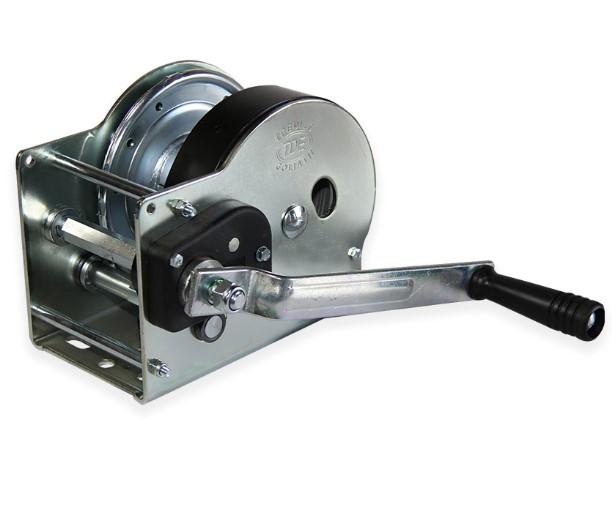

AFD, Goliath Zinc Plated Hand Winch

Goliath AFD winch

Self-braking hoist winches for cable: - Lifting up to 1180 kg
- Hauling up to 2500 kg
- Quick cable fixing, cable clamp included.
- Enveloping frame
- Quick cable fixing
- Can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate.
- Lightweight
- Inexpensive
- High efficiency through spur gearing
- Smooth running
- All components are zinc plated
- Automatic load pressure brake holds the load. The load can be held without any action from the handle
- Enclosed and protected stamped gears

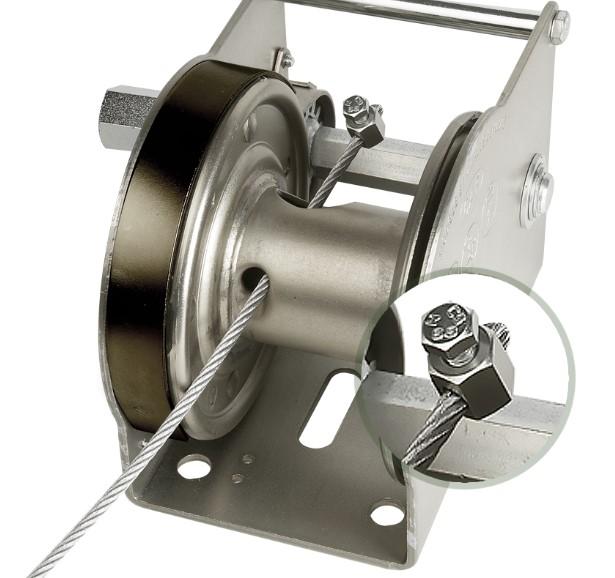

- For use with wire rope, easy cable mounting without drum removal

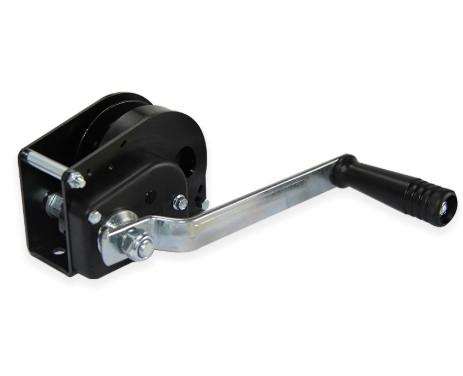

** 4AFMD is supplied in Black finish

Complies with BS EN 13157
CE and TUV Security Accreditation
Models available 4AFMD, 4AFD, 6AFD, 8AFD, 12AFD, 20AFD

**As Standard supplied without Wire Rope - Prices available on request**

Specification

Haulage load capacity is based on a 20% incline
Minimum load for the brake to function = 10kg

Type	4AFMD-190	4AFD-340	6AFD-500	8AFD-650	12AFD-900	20AFD-1180
Order Code	151-1-1	151-1-2	151-1-3	151-1-4	151-1-5	151-1-6
Lifting Capacity 1st Layer:	190 Kg	340 Kg	500 Kg	650 Kg	900 Kg	1180 Kg
Lifting Capacity Last Layer:	80 Kg	190 Kg	240 Kg	270 Kg	490 Kg	650 Kg
Haulage Capacity:	350 Kg	500 Kg	750 Kg	900 Kg	1500 Kg	2500 Kg
Rope Capacity 1st Layer:	1 m	2 m	2 m	2 m	2 m	2 m
Rope Capacity Total:	8 m	10 m	12 m	19 m	12 m	10 m
Rope Diameter:	3 mm	4 mm	5 mm	6 mm	7 mm	8 mm
No. of Layers:	8	4	5	7	5	4
Ratio:	2.57:1	2.57:1	3.5:1	4.85:1	9.71:1	9.71:1
Required Effort:	15 N	24 N	24 N	23 N	25 N	19 N
Weight:	2.2 Kg	2.7 Kg	3.7 Kg	5.5 Kg	7.4 Kg	7.8 Kg
