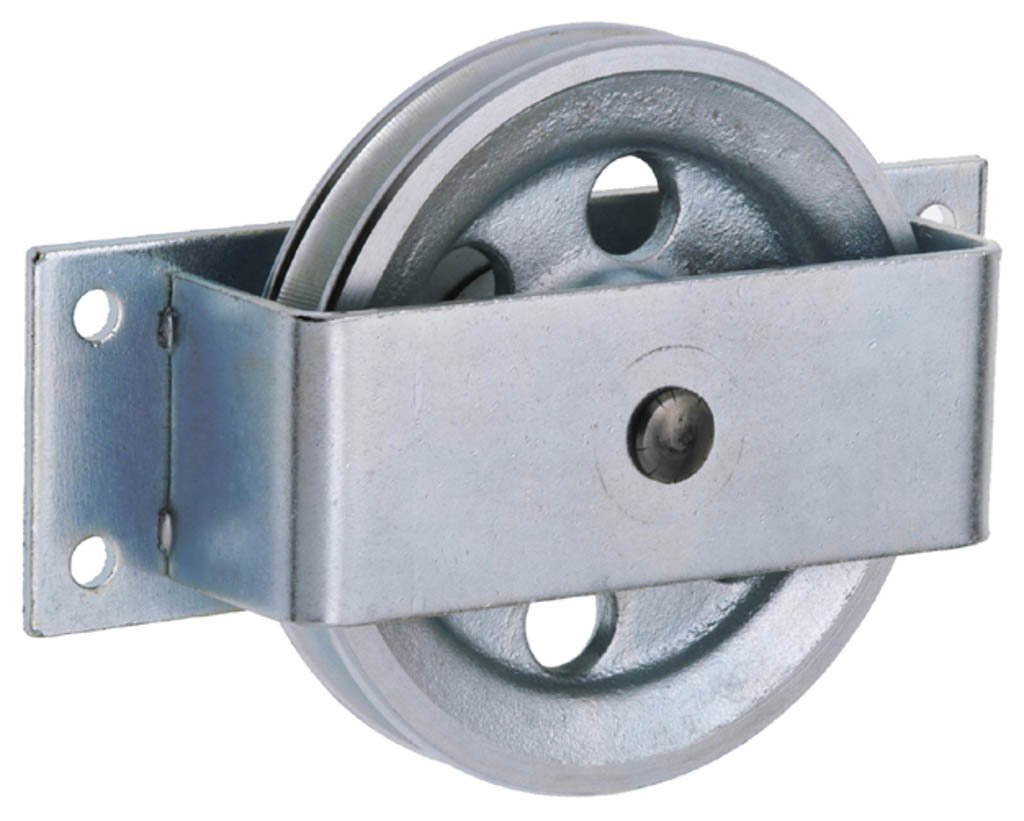

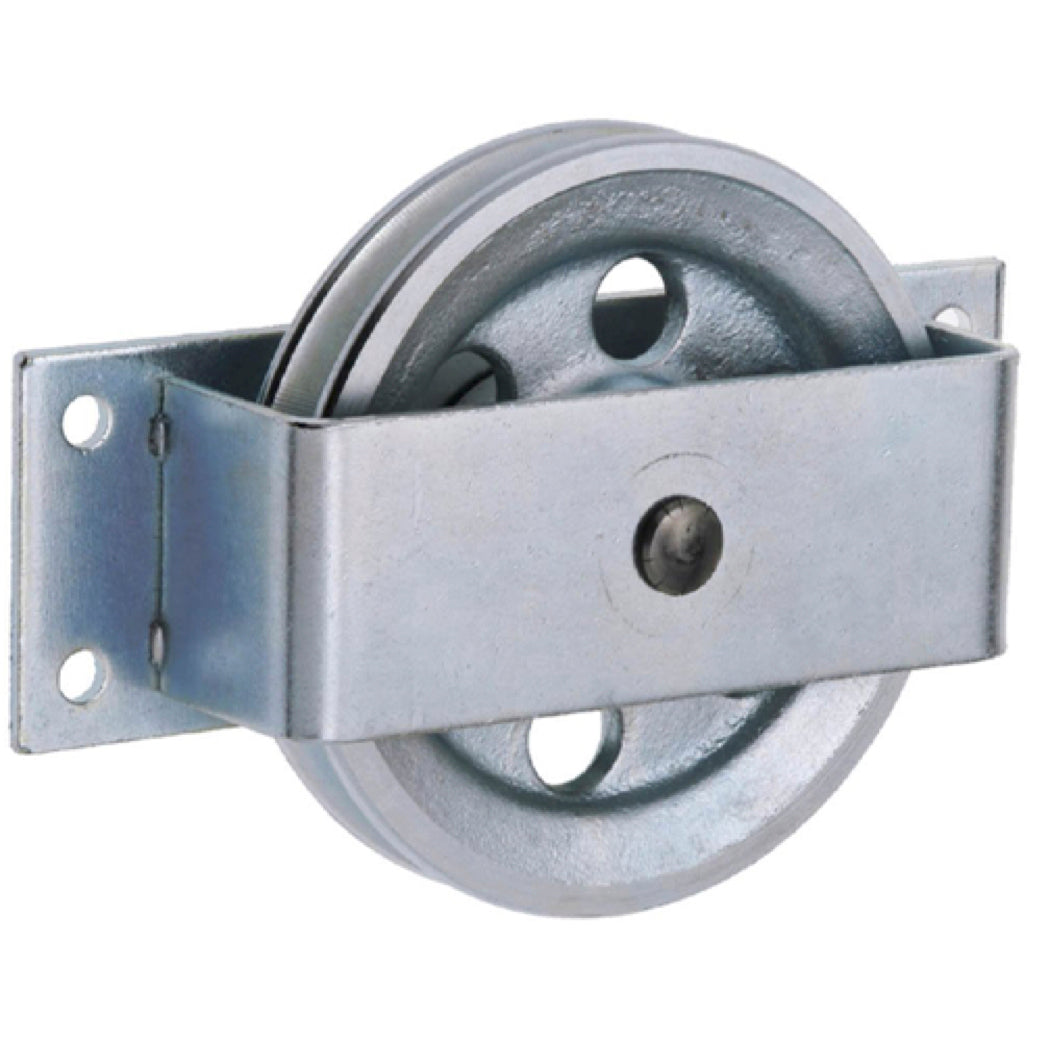

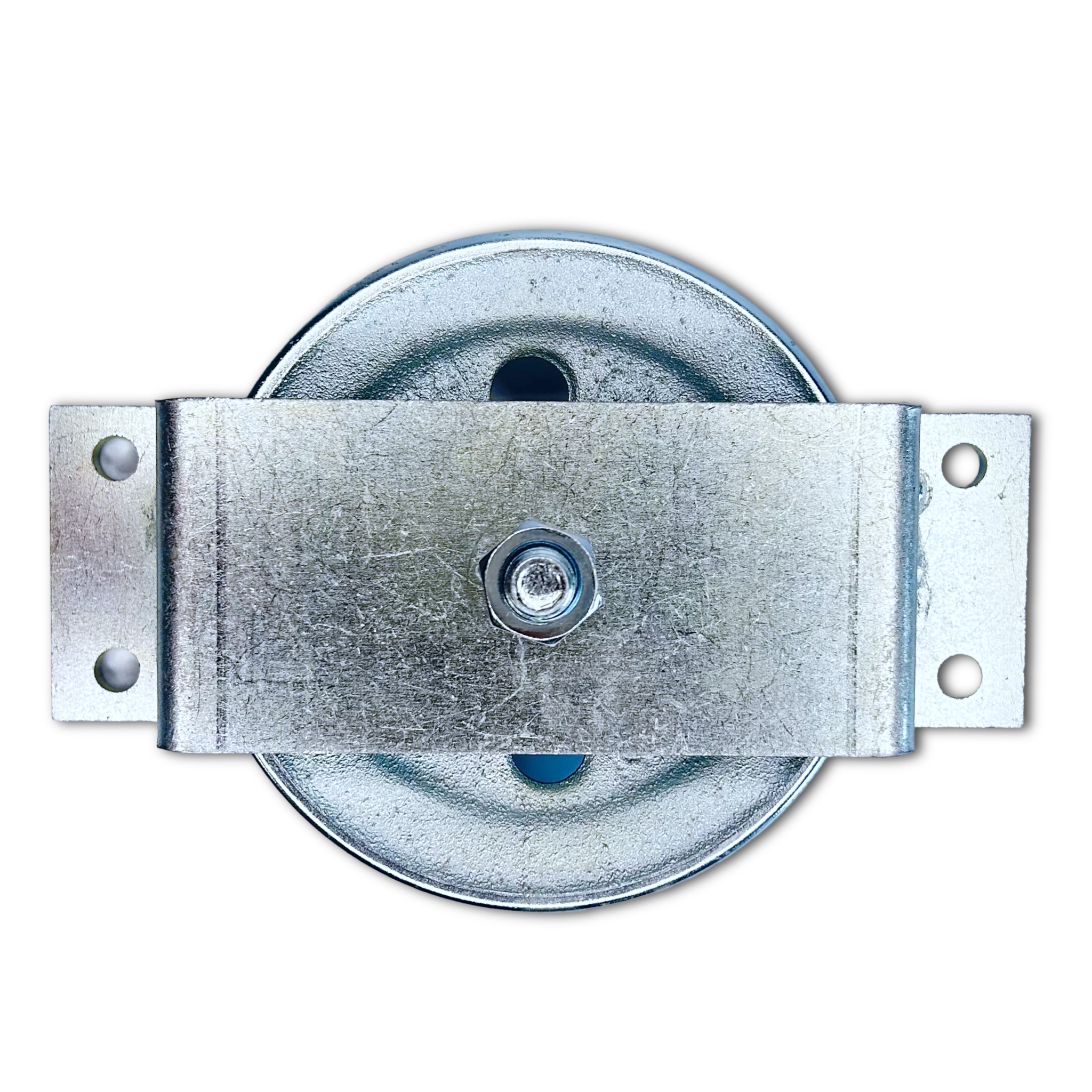

Galvanised Cast Iron Side Mounted Pulley Type ETT-170 : 100kg to 500kg

Galvanised Cast Iron Side Mounted Pulley Type ETT-170 : 100kg to 500kg

• WEBI Galvanised cast iron pulley with bearing and pressed steel bracket
• Complete with bearing and fixing bolt
• Material finish - galvanised cast iron
• Capacities from 100kg up to 500 kg
• To suit either 2.5mm, 3mm, 4mm or 5mm wire rope (see specification PDF for full details)
• For use with manual and powered winches (any applications where rope needs to be diverted)
• SWISS MADE "ETTER"

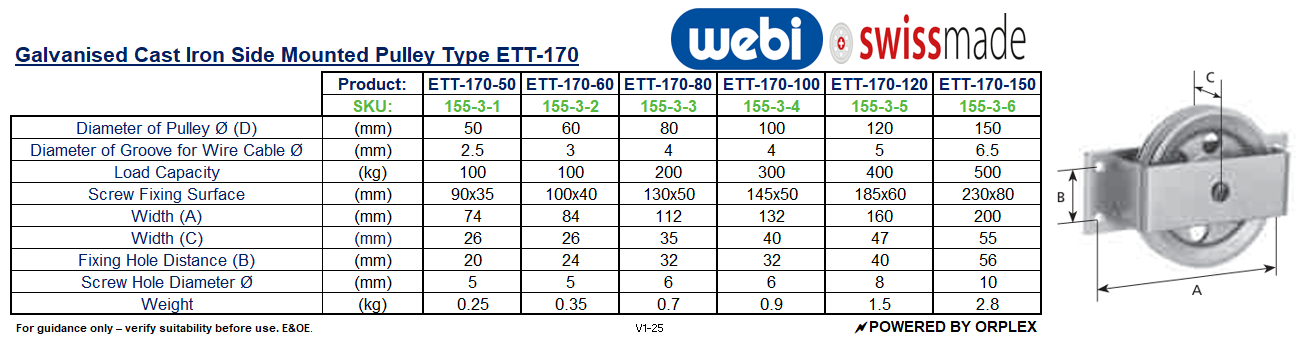

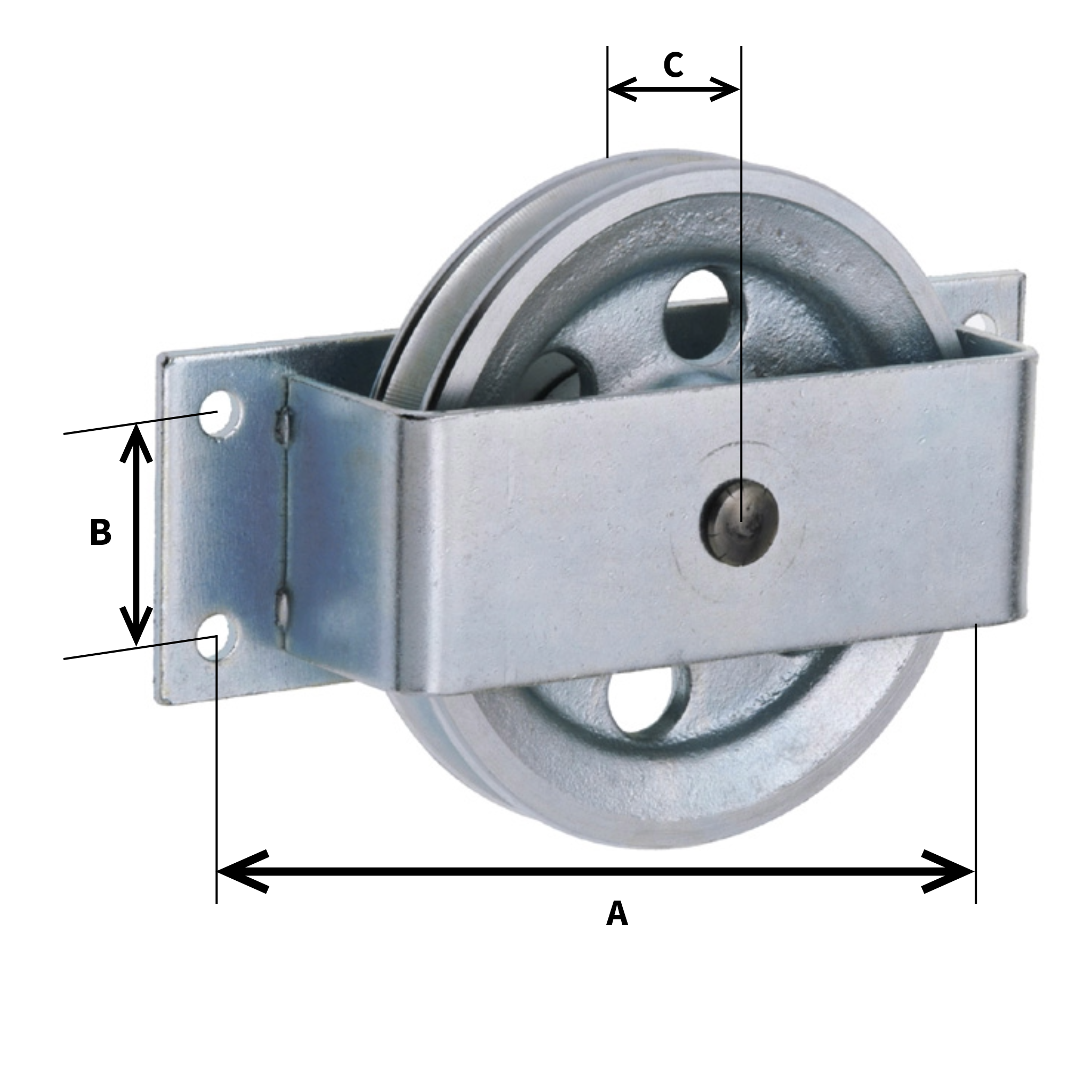

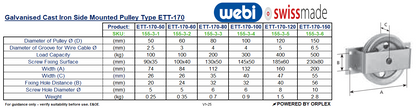

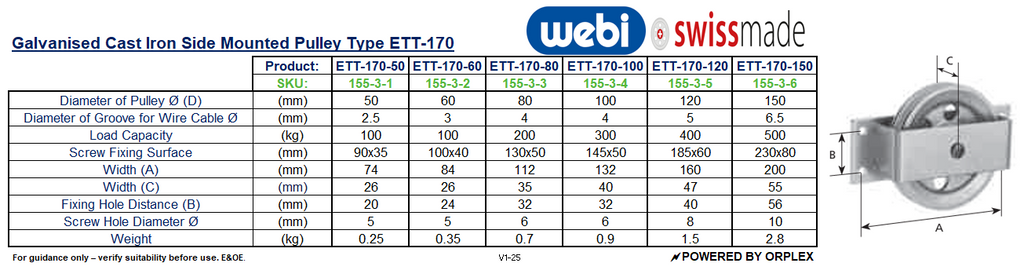

Spec

Model	Capacity	Pulley Diameter	Rope Diameter
155-3-1	100 kg	50 mm	2.5 mm
155-3-2	100 kg	60 mm	3 mm
155-3-3	200 kg	80 mm	4 mm
155-3-4	300 kg	100 mm	4 mm
155-3-5	400 kg	120 mm	5 mm
155-3-6	500 kg	150 mm	6.5 mm

Downloads

Pulley Cat 2018

Etter 170 Pulley Data Sheet
