• WEBI Pulley Type ETT-74 - Galvanised Cast Iron Pulley (ETTER)

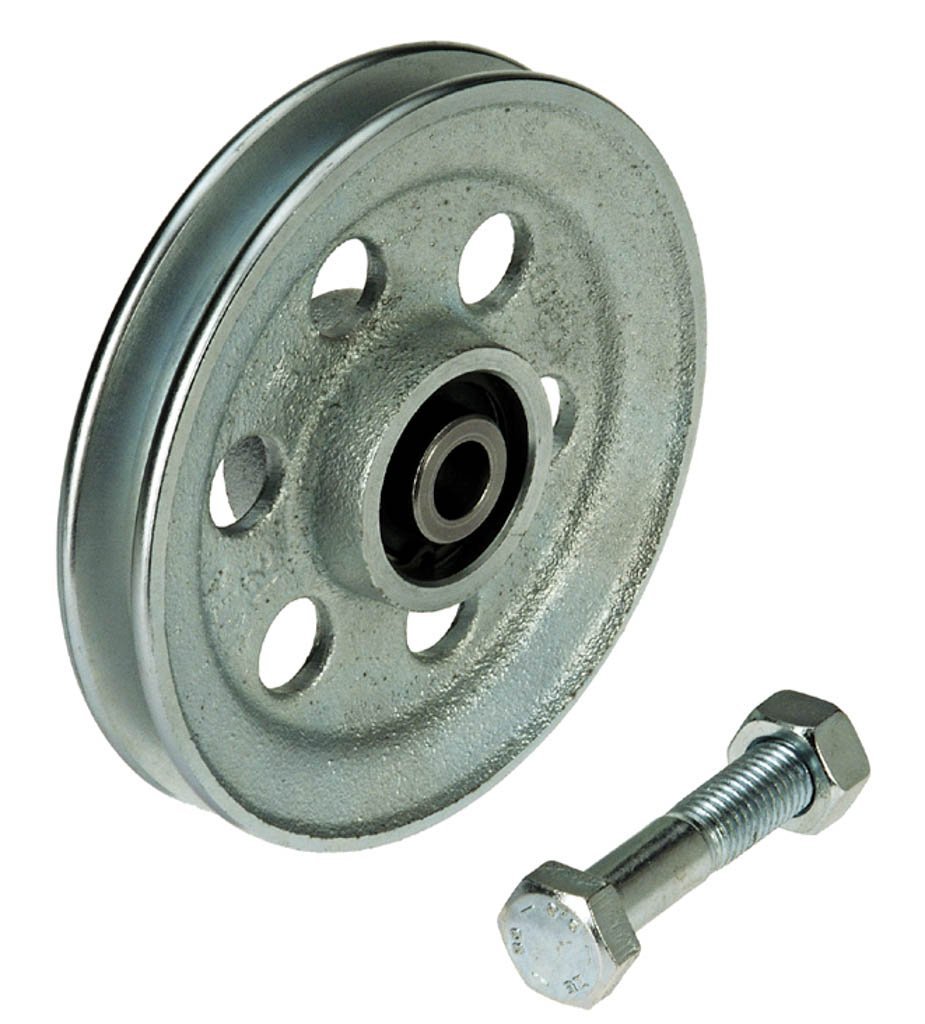

  • Galvanised Cast Iron Single Pulley Type ETT-74 : 100 to 1,000kg complete with fixing bolt
1 2

Etter (WEBI) Pulleys

Galvanised Cast Iron Pulley Type ETT-74 : 100 to 1000kg

Galvanised Cast Iron Pulley Type ETT-74 : 100 to 1000kg

€30,00 EUR
€30,00 EUR
Sale Sold out
Taxes included.
Choose by Max Capacity - Pulley Dia and Max Rope Dia Below :

Galvanised Cast Iron Single Pulley Type ETT-74 : 100-1000kg

  • A range of galvanised cast iron single pulleys / sheaves ETT-74
  • Complete with bearing and fixing bolt
  • Material finish - galvanised cast iron
  • Capacities available range from 100 kg to 1,000 kg
  • Pulley diameter ranges from 50mm up to 300mm
  • To suit from 3mm up to 12mm wire rope (see specification PDF for full details)
  • For use with manual and powered winches
  • SWISS MANUFACTURED

Spec

Model Capacity Pulley Diameter Rope Diameter
155-2-1 100kg 50mm 2.5mm
155-2-2 100kg 60mm 3.0mm
155-2-3 200 kg 70 mm 3.0 mm
155-2-4 200 kg 80 mm 4.0 mm
155-2-5 300 kg 100 mm 4.0 mm
155-2-6 400 kg 120 mm 5.0 mm
155-2-7 500 kg 150 mm 6.5 mm
155-2-8 500 kg 180 mm 8.0 mm
155-2-9 800 kg 210 mm 9.0 mm
155-2-10 800 kg 240 mm 10.0 mm
155-2-11 1000 kg 300 mm 12.0 mm

    Downloads

    PulleyPulley Cat 2018

    PulleyEtter 74 Pulley Data Sheet


      View full details
