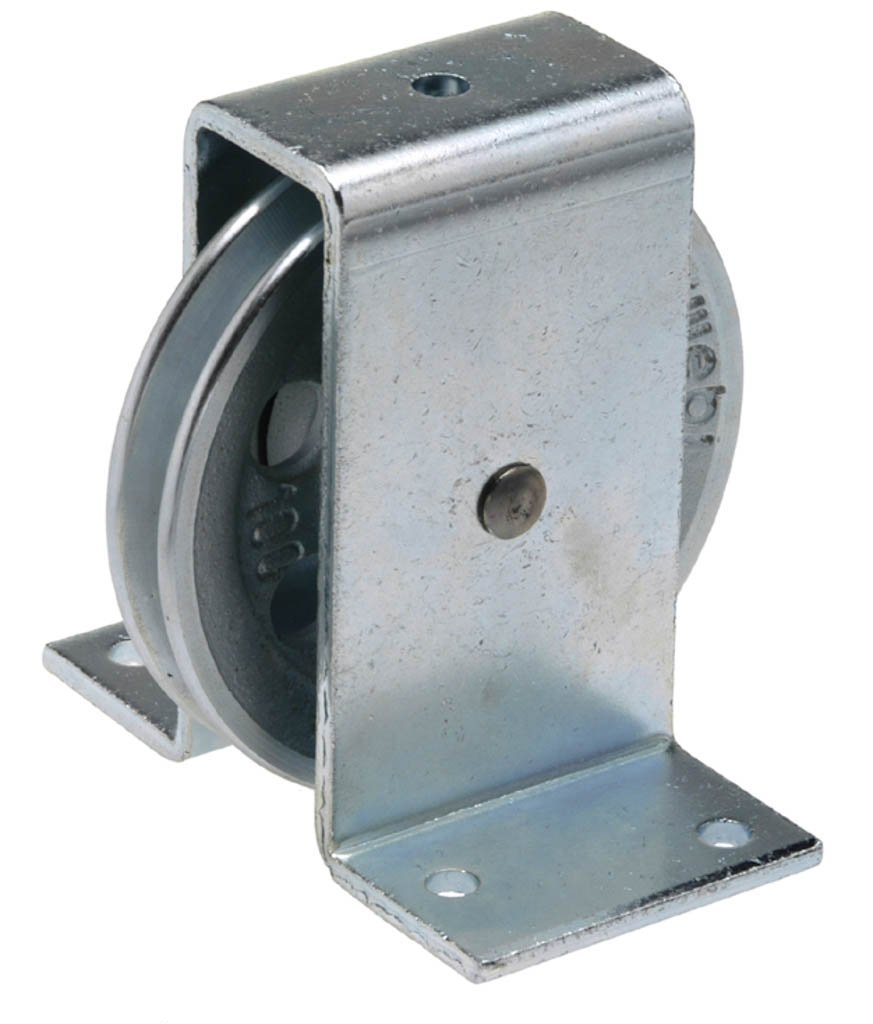

• WEBI Pulley Type ETT-160 - Galvanised cast iron pulley with pressed steel bracket (ETTER)

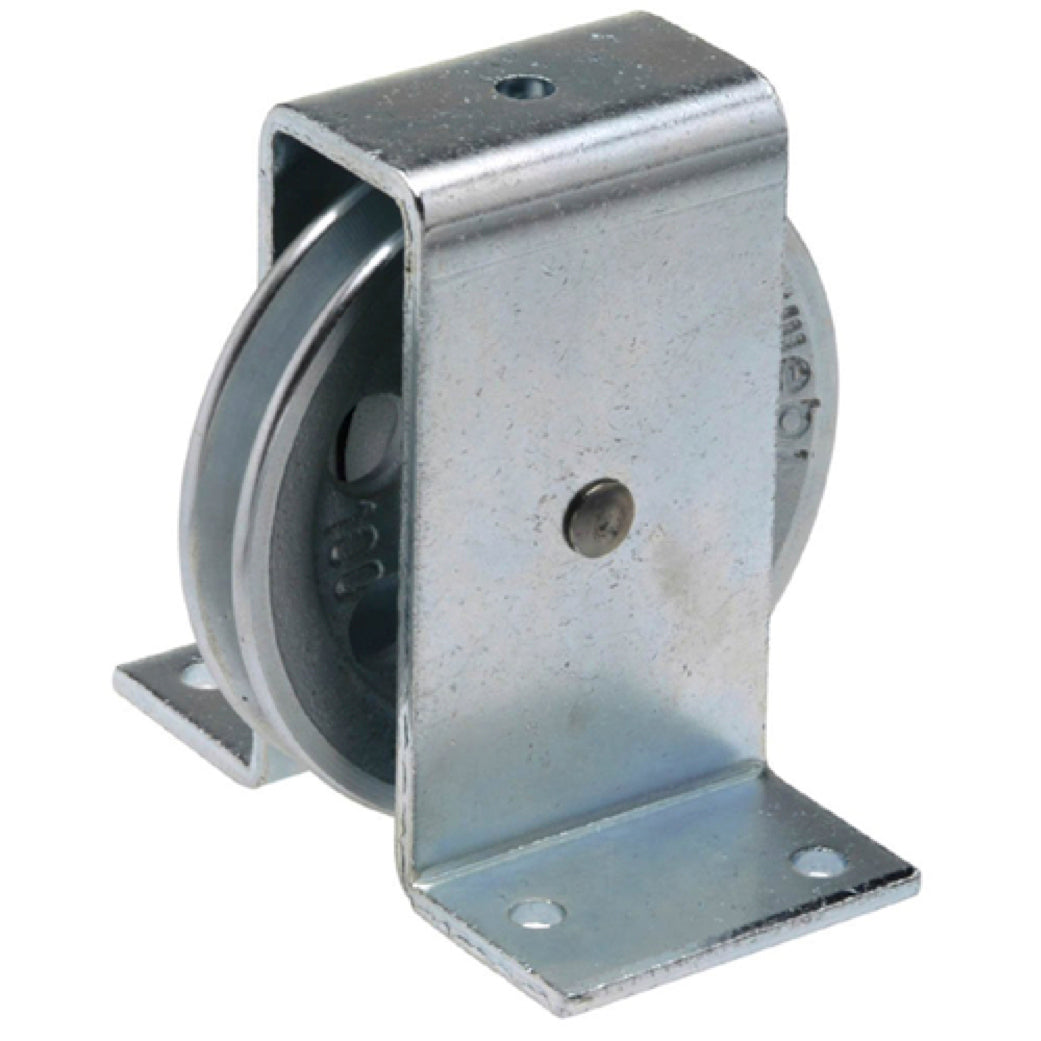

  • ETT-160 - Galvanised cast iron pulley with Bracket
1 2

Etter (WEBI) Pulleys

Galvanised Cast Iron Pulley with Pressed Steel Bracket Type ETT-160 : 100kg to 400kg

Galvanised Cast Iron Pulley with Pressed Steel Bracket Type ETT-160 : 100kg to 400kg

€48,00 EUR
€48,00 EUR
Sale Sold out
Taxes included.
Choose by Max Capacity - Pulley Dia and Max Rope Dia Below :

WEBI Pulley Type ETT-160 - Galvanised cast iron pulley with pressed steel bracket (ETTER) Ref: 155-4


  • WEBI Galvanised cast iron pulley with bearing and pressed steel bracket
  • Complete with bearing and fixing bolt
  • Material finish - galvanised cast iron
  • Capacities from 100 kg to 400 kg
  • To suit 3 mm - 5 mm wire rope (see specification PDF for full details)
  • For use with manual and powered winches (any applications where rope needs to be diverted)
  • SWISS MADE "ETTER"
  • Four model types available from stock

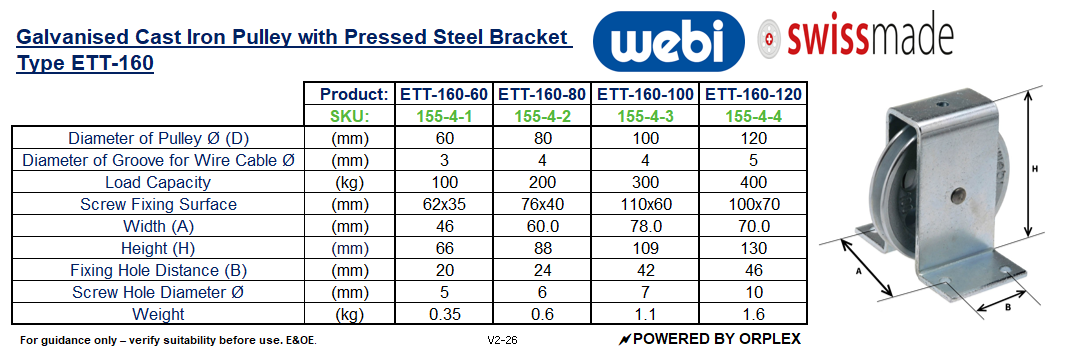

Spec

Model Capacity Pulley Diameter Rope Diameter
155-4-1 100 kg 60 mm 3 mm
155-4-2 200 kg 80 mm 4 mm
155-4-3 300 kg 100 mm 4 mm
155-4-4 400 kg 120 mm 5 mm

    Downloads

    pulleysPulley Cat 2018

    pulleys 160 Pulley Data Sheet
