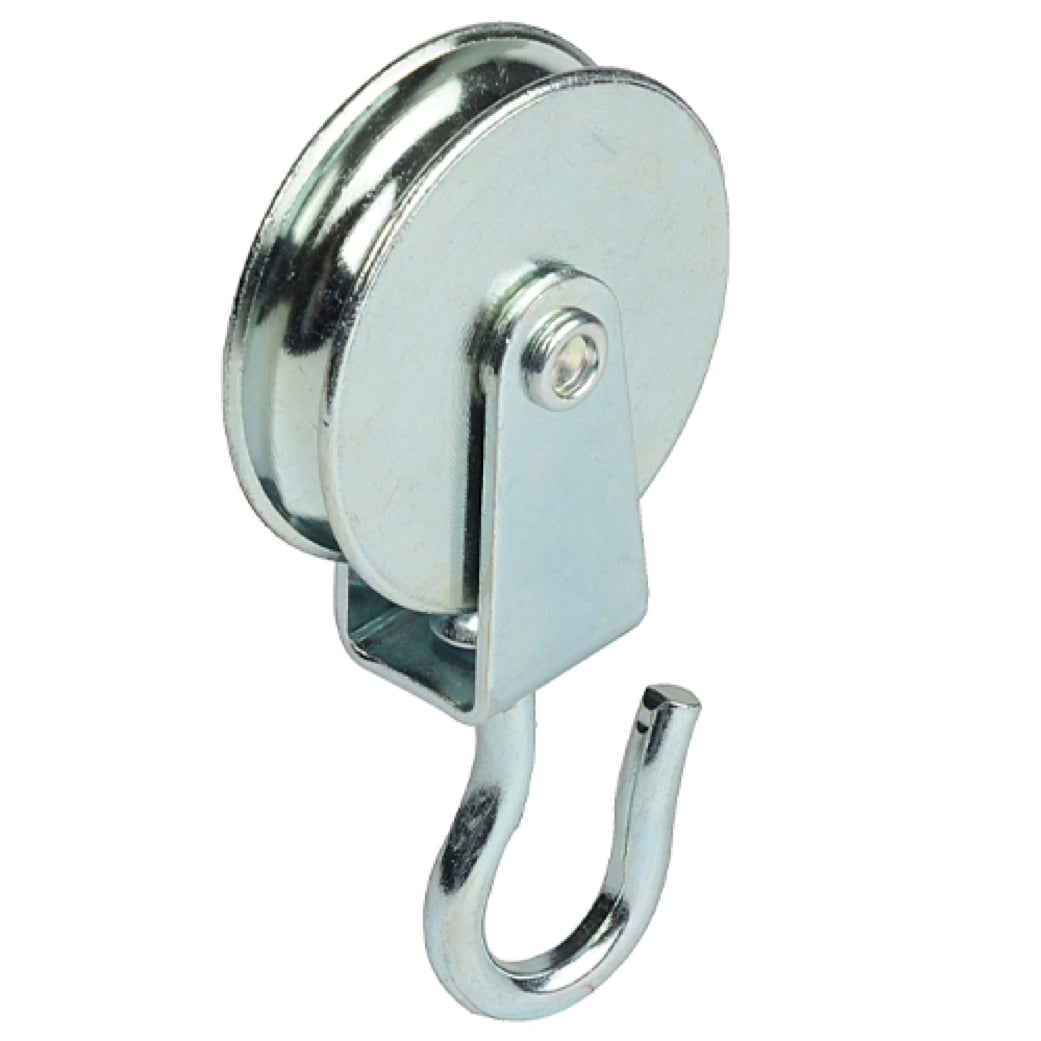

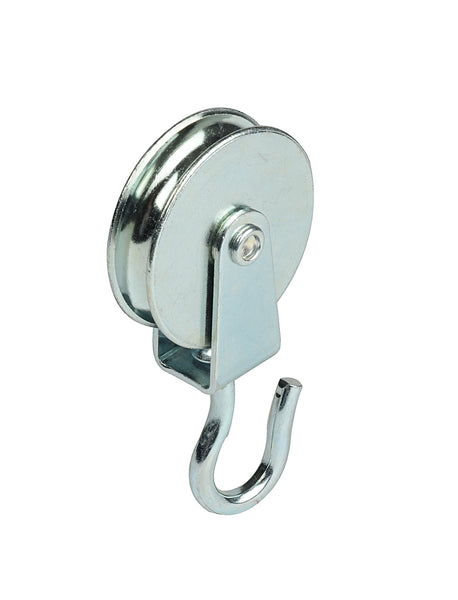

Steel or Galvanised Cast Iron Pulley with Rotating Hook Type ETT-198 : 15kg to 70kg

Etter (WEBI) Pulleys SKU: 155-20-1

1 2

Steel Galvanised Cast Iron Pulley with Rotating Hook Type ETT-198 : 15kg to 70kg Steel galvanised cast iron single pulley / sheave with rotating hook Fitted with Plain bearing Material finish -... Read More

€15,06

RRP TODAY'S PRICE €15,06

In stock (9)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Steel Galvanised Cast Iron Pulley with Rotating Hook Type ETT-198 : 15kg to 70kg

Steel galvanised cast iron single pulley / sheave with rotating hook
Fitted with Plain bearing
Material finish - steel for pulley diameter sizes 30, 40, 50 and 60mm, galvanised cast iron for diameter sizes 80 and 100mm
Capacities available from 15kg through to 70kg
To suit 5mm through to 16mm diameter rope (see specification PDF for full details)
For use with hemp and synthetic fibre ropes
SWISS MANUFACTURED

Not to be used for personal winching, only use for material winching.

Specification

Model	Max Capacity	Pulley Diameter	Max Rope Diameter
155-20-1	15 kg	30 mm	5 mm
155-20-2	20 kg	40 mm	7 mm
155-20-3	30 kg	50 mm	8 mm
155-20-4	40 kg	60 mm	10 mm
155-20-5	50 kg	80 mm	12 mm
155-20-6	70 kg	100 mm	16 mm
