Etter (WEBI) Pulleys

WEBI Pulley Type ETT-201 - Construction Site Pulley with Rotating Steel Hook

WEBI Pulley Type ETT-201 - Construction Site Pulley with Rotating Steel Hook

€127,90 EUR
€127,90 EUR
Sale Sold out
Taxes included.
Choose by Max Capacity - Pulley Dia and Max Rope Dia Below :

WEBI Pulley Type ETT-201 - Construction Site Pulley with Rotating Steel Hook (ETTER)

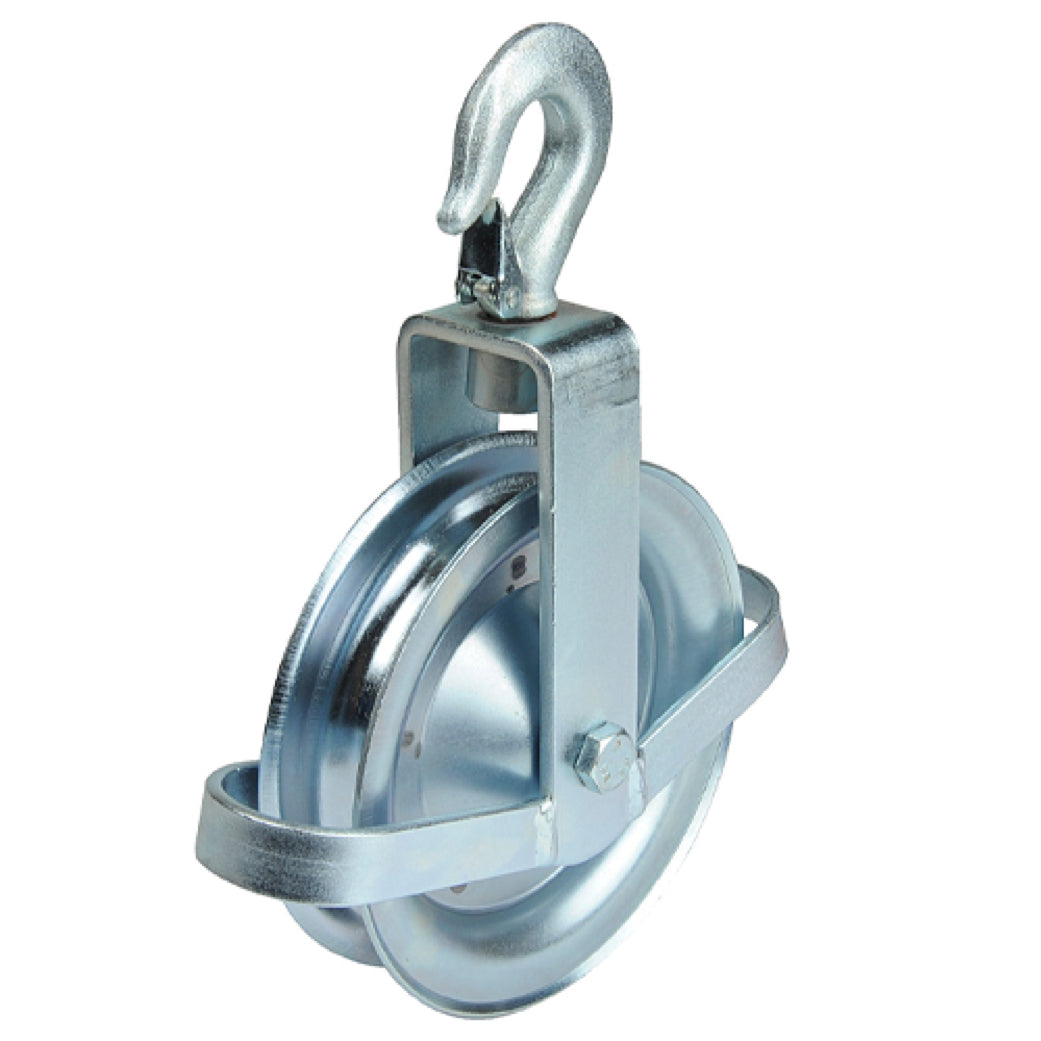

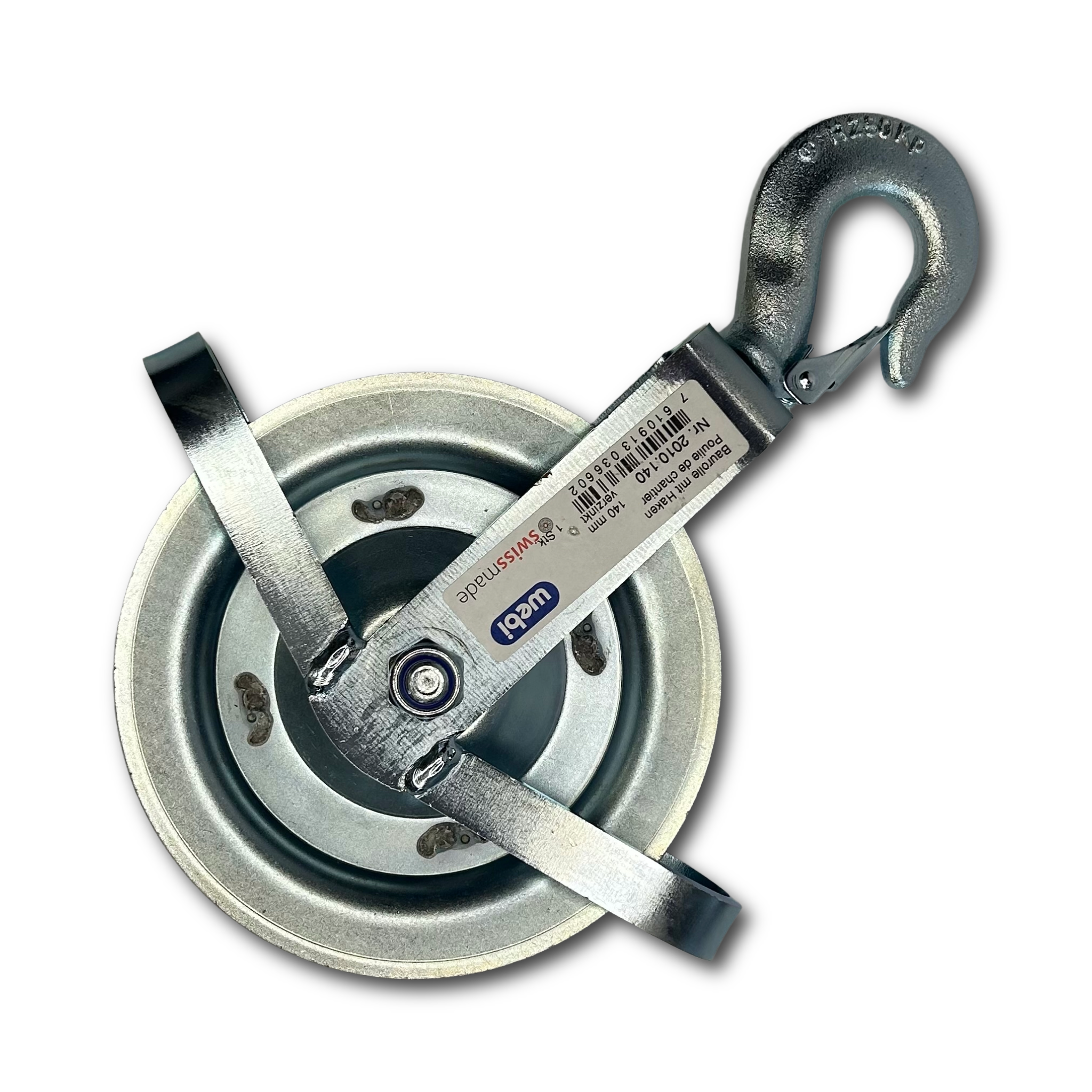

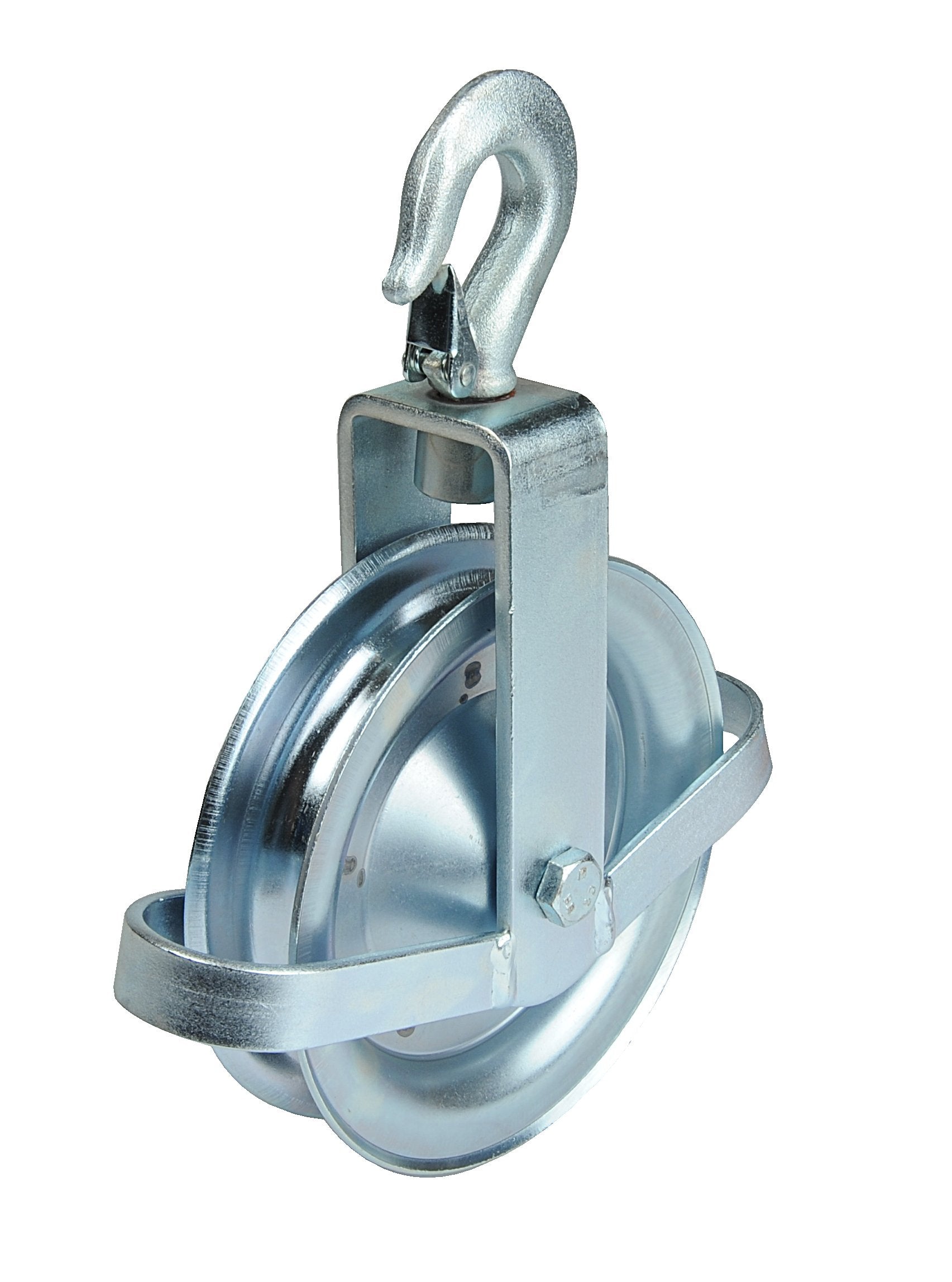

  • WEBI steel pulley / sheave with rotating hook for use on a construction site for moving materials only.
  • Plain bearing, with self-lubricating polyamide bearing bush
  • Material finish steel pulley with galvanised steel housing, steel hook with security spring
  • Hook load capacities from 200 kg through to 250 kg (manual operation only)
  • Width of groove on pulley to suit 25 mm through to 32 mm rope (see specification PDF for full details)
  • For use with hemp and synthetic fibre ropes
  • SWISS MANUFACTURED

Not to be used for personal winching.

Spec

Model Capacity Pulley Diameter Rope Diameter
155-22-1 200 kg 140 mm 25 mm
155-22-2 250 kg 160 mm 28 mm
155-22-3 250 kg 200 mm 32 mm
155-22-4 250 kg 250 mm 32 mm


Downloads

pulleyPulley Cat 2018

pulleyEtter 201 Pulley Data Sheet
