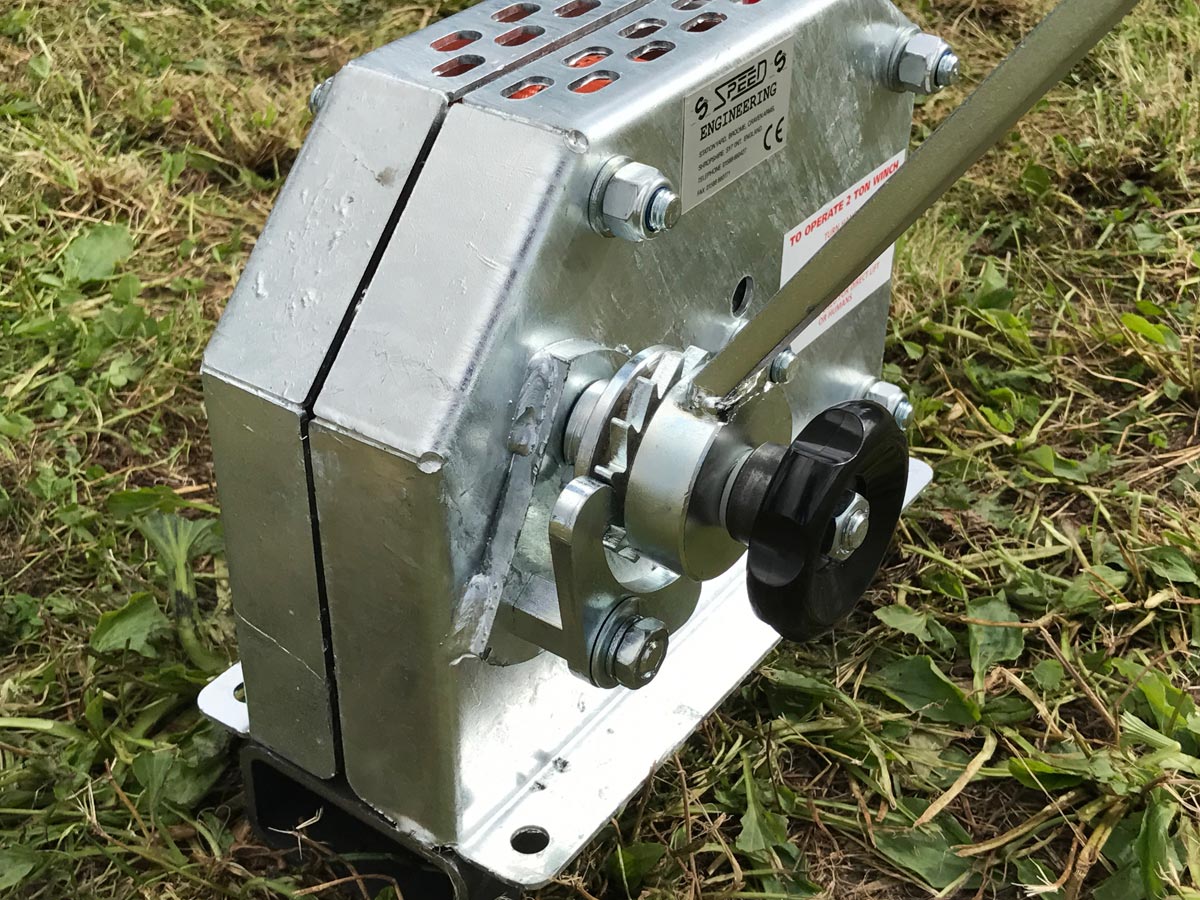

Trailer Winch 2T Horizontal Mount C/W Hook & 8m Webbing

These UK Built Trailer winches are of a high build quality and the best materials are used to ensure a long trouble-free life, needing only the minimum of maintenance. A truly well built product which will reflect the quality you build into your trailer.

✓ All parts are galvanised or zinc plated, offering a superior corrosion resistance.
✓ Gears are machine cut from solid blanks to ensure long life and trouble-free operation.
✓ The body is made from 3 mm steel and is held together with multiple stay pins.
✓ Gravity operated double ratchet has no spring to weaken or lose, plus can never disengage accidentally.
✓ The braking system is simple and automatic to operate.
✓ The mechanical advantage is designed into each winch to keep handle effort low for smooth operation.
✓ The complete winch is enclosed for safe operating, ie trapped fingers in the gears, etc.

The SP2TS10 can be fitted to various trailers, eg Ifor Williams ranges CT/TB/GH/TT, Bateson’s Transport, PRG, Brian James.

Manufactured in the UK

Spec

The SP2TS10 comes fitted with a 50 mm wide x 8 metre polyester strap complete with eye hook on the end. Polyester strapping is kinder to the hands of the operator and is positively anchored to the drum for safety.

Mount: Horizontal mounted
Rating: 2000 kg rolling weight up a 30 degree slope
Shipping Weight: 12kg

SP2TS10

Downloads

Datasheet.pdf
