High Tensile Collared Eyebolt Metric Thread

SKU: 286-619-1

High Tensile Collared Eyebolt Metric Thread

SKU: 286-619-1

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigging-eu.co.uk

0% Finance Available

Through PayPal Credit - Find out more

View full details

Description

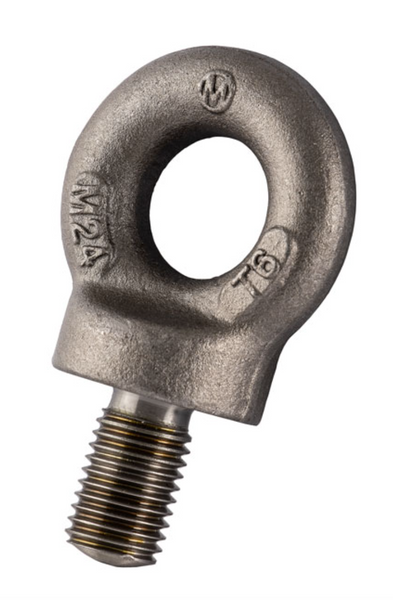

High Tensile Collared Eyebolt Metric Thread

Drop forged, high tensile steel, heat treated.
Self colour and electro galvanised finish.
Meets the W.L.L. performance requirements of BS 4278.
Minimum breaking load is 5 times the W.L.L.
Marked with CE, W.L.L, size and product ID mark.
For further clarification on reductions for non-axial loading, please consult RiggingUK.
Certification available

Read what our customers have to say about our Collared Eyebolts

Great product and service

I needed a lifting bolt in a hurry and found these guys on the web. Easy to navigate and order, everything clear and easy. Quick shipping and service all round and we moved what we had to in good time. Thanks!

Spec

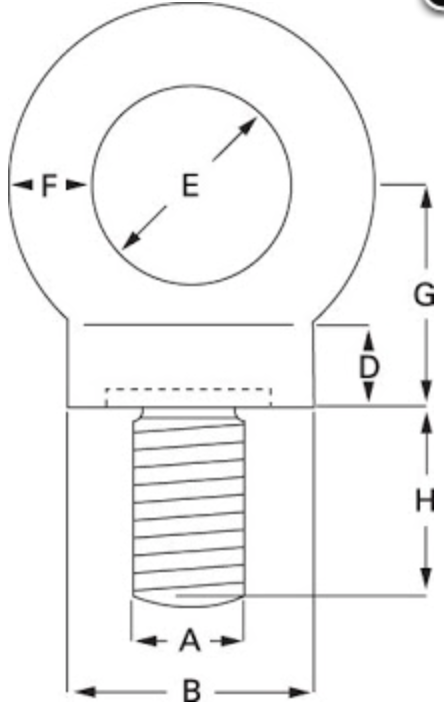

SKU	W.L.L.	A	B	D	E	F	G	H	Weight
	t	mm	mm	mm	mm	mm	mm	mm	kgs
286-619-1	0.1	6	22	7	15	9	20	18	0.06
286-619-2	0.15	8	22	7	15	9	20	19.5	0.06
286-619-3	0.33	10	22	7	15	9	20	19.5	0.06
286-619-4	0.4	12	22	7	15	9	20	19.5	0.06
286-619-5	0.5	14	29	10	20	12	26	23	0.15
286-619-6	0.8	16	29	10	20	12	26	24.5	0.15
286-619-7	1.2	18	40	14	27	16	36	29.5	0.27
286-619-8	1.6	20	40	14	27	16	36	33.5	0.3
286-619-9	1.6	22	45	14	30	17	41	35	0.54
286-619-10	2.5	24	52	17	35	21	46	41.5	0.85
286-619-11	2.5	27	58	20	39	23	51.5	46	1.13
286-619-12	4	30	65	22	44	26	58	51	1.62
286-619-13	4	33	72	24	48	29	64	56	2.37
286-619-14	6.3	36	81	27	54	32	72	63	3.12
286-619-15	8	42	101	30	68	40	90	79	6
286-619-16	10	48	101	34	68	40	90	79	9
286-619-17	12.5	52	115	38	76	46	102	89	10
286-619-20	16	56	128	43	86	51	114	100	13
286-619-18	20	64	144	48	96	58	128	112	17.5
286-619-19	25	72	162	54	108	65	144	126	31
