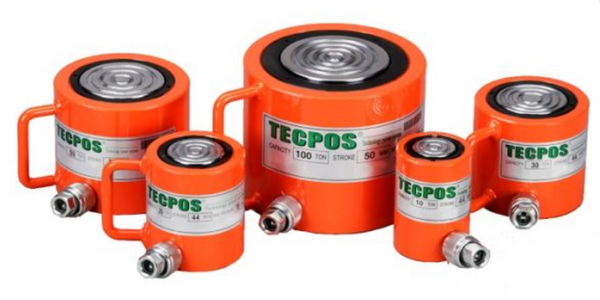

Tecpos Shorty Cylinder

Tecpos SKU: 286-702-1

1 2

Tecpos Shorty Cylinder - TSSC Series Maximum Pressure: 700 Bar. Hydraulic Coupler: TBC 381F(PT3/8). Orange painted finish. Compact, flat design for use where other cylinders will not fit. Marked with CE, capacity, manufacturers ID, product ID mark and traceability code. Certification available 2.1 DoC Understanding the Read More

€485,15

RRP TODAY'S PRICE €485,15

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Tecpos Shorty Cylinder - TSSC Series

Maximum Pressure: 700 Bar.
Hydraulic Coupler: TBC 381F(PT3/8).
Orange painted finish.
Compact, flat design for use where other cylinders will not fit.
Marked with CE, capacity, manufacturers ID, product ID mark and traceability code.
Certification available 2.1 DoC

Understanding the Code

T – Tecpos
SSC – Shorty cylinder
10 – Capacity: 10 tonnes
44 – Stroke: 44mm

Please refer to specification table for pump to suit cylinder.

Specification

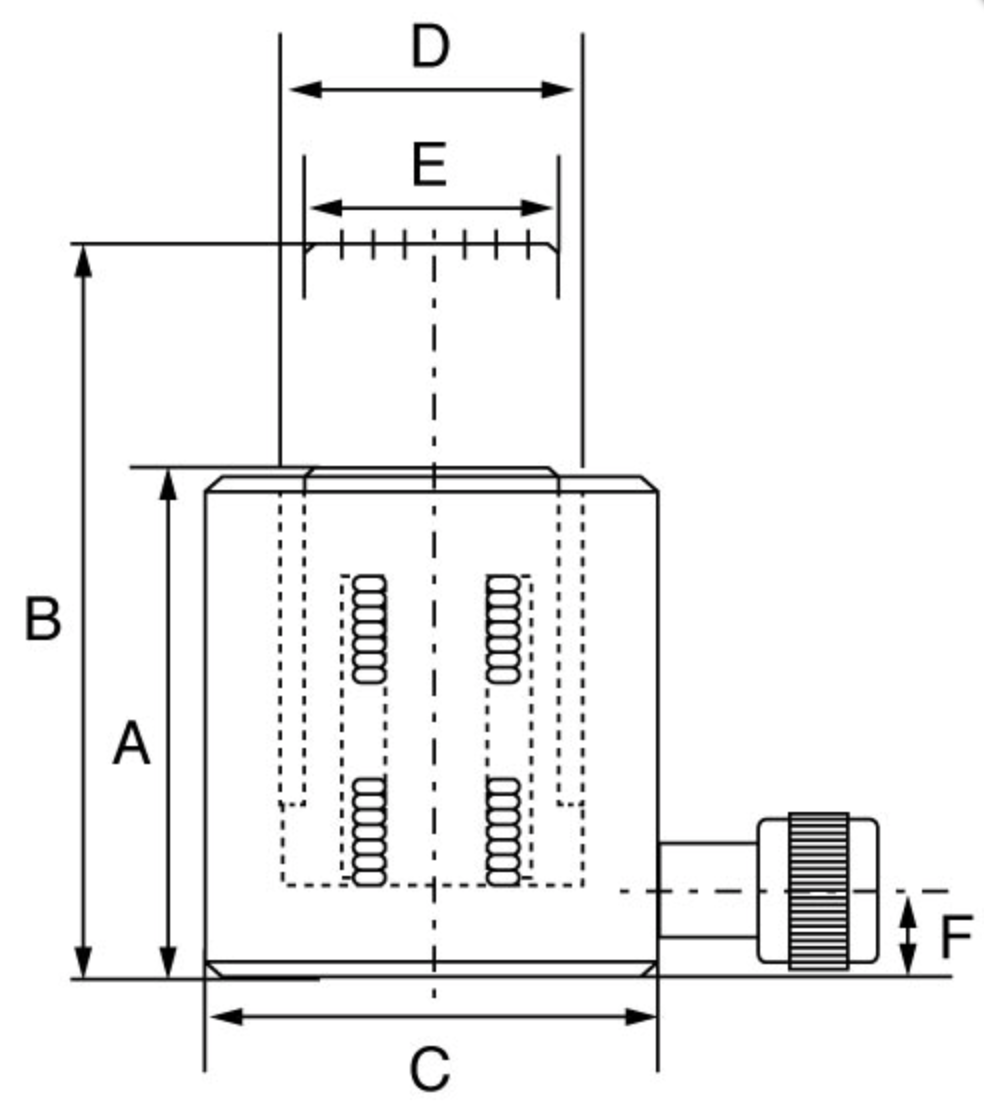

SKU	Cyl. Cap.	Stroke	Suits Pump	Cyl. Effective Area	Oil Cap.	Retracted Height	Extended Height	Cyl. Out Dia.	Cyl. Bore Dia.	Piston Rod Dia.	Base to inlet port	Weight	Pump
	t	mm		cm²	cc	A mm	B mm	C mm	D mm	E mm	H mm	kgs
286-702-1	10	44	THP1B or ESP08	15.2	66	99	143	68	44	38	17	2.6	1B or 08
286-702-2	20	44	THP1B or ESP08	28.3	124	99	143	88	60	51	17	4.3	1B or 08
286-702-3	30	44	THP1B or ESP08	44.2	194	99	143	105	75	64	17	6.2	1B or 08
286-702-4	50	50	THP1B or ESP08	63.6	318	109	159	125	90	75	19	10.2	1B or 08
286-702-5	100	50	THP1C or ESP17	132.7	663	139	189	165	130	100	27	21	1C or 17
286-702-X	150	50		201	1005	170	220	208	160	135	33	41.1	1C or 17
286-702-6	200	50	THP1C or ESP17	283.5	1417	180	230	245	190	170	38	60.3	1C or 17
