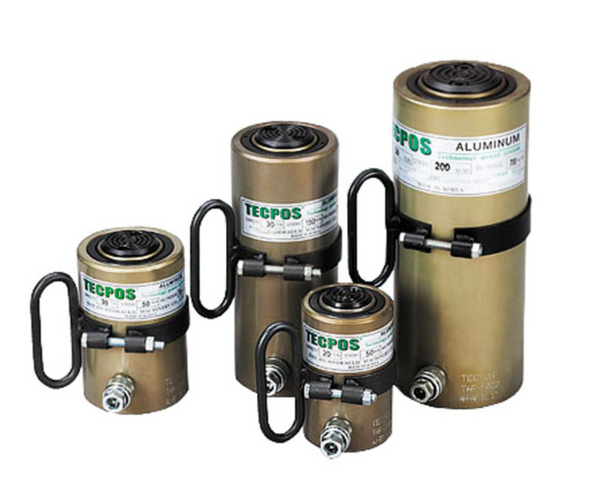

Tecpos Aluminium Cylinder

Tecpos SKU: 286-706-1

1 2

Tecpos Aluminium Cylinder - TAR Series Maximum Pressure: 700 Bar. Hydraulic Coupler: TBC 381F(PT3/8). Spring return. Marked with CE, capacity, manufacturers ID, product ID mark and traceability code. Certification available DoC Understanding the Code T – Tecpos AR – Aluminium 20 – Capacity: 20 tonnes 50 – Stroke: 50mm Read More

€1.458,25

RRP TODAY'S PRICE €1.458,25

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Tecpos Aluminium Cylinder - TAR Series

Maximum Pressure: 700 Bar.
Hydraulic Coupler: TBC 381F(PT3/8).
Spring return.
Marked with CE, capacity, manufacturers ID, product ID mark and traceability code.
Certification available DoC

Understanding the Code

T – Tecpos
AR – Aluminium
20 – Capacity: 20 tonnes
50 – Stroke: 50mm

Compatible pumps can be found on these links: Hand Pump Aluminium Hand Pumps

Specification

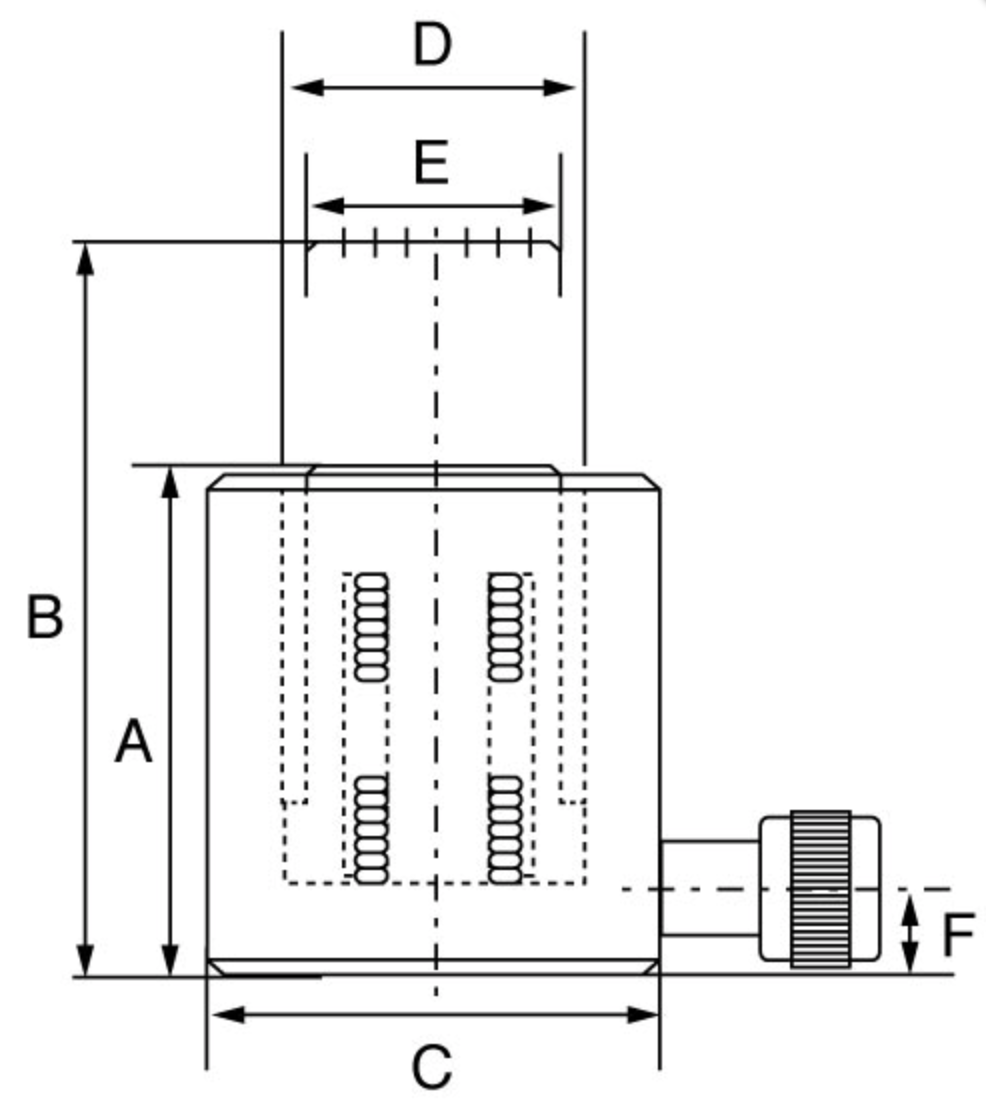

SKU	Cyl. Cap.	Stroke	Cyl. Effective Area	Oil Cap.	Retracted Height	Extended Height	Cyl. Out Dia	Cyl. Bore Dia	Piston Rod Dia	Base to Inlet Port	Weight	Pump
	t	mm	cm²	cc	A mm	B mm	C mm	D mm	E mm	F mm	kgs
286-706-1	20	50	28.3	145	150	200	89	60	54	28	3.2	1B or 08
286-706-2	20	100	28.3	290	200	300	89	60	54	28	4.1	1B or 08
286-706-3	20	150	28.3	435	250	400	89	60	54	28	4.8	1B or 08
286-706-4	30	50	44.2	220	168	218	108	75	65	35	5	1B or 08
286-706-5	30	100	44.2	440	218	318	108	75	65	35	6.3	1B or 08
286-706-6	30	150	44.2	660	268	418	108	75	65	35	7.5	1C or 17
286-706-7	50	50	70.9	355	182	232	134	95	85	35	8.7	1B or 08
286-706-8	50	100	70.9	708	232	332	134	95	85	35	10.2	1C or 17
286-706-9	50	150	70.9	1,063	282	432	134	95	85	35	12.9	1C or 17
286-706-10	100	50	132.8	660	193	243	189	130	110	40	16.5	1C or 17
286-706-11	100	100	132.8	1,320	243	343	189	130	110	40	20.6	25
286-706-12	100	150	132.8	1,980	293	443	189	130	110	40	23.4	25
286-706-13	150	50	201.1	1,005	208	258	238	160	135	45	27	25
286-706-14	150	100	201.1	2,010	258	358	238	160	135	45	33.4	25
286-706-15	150	150	201.1	3,016	308	458	238	160	135	45	39.8	50
