SD125 SST - 125kg Stainless Swivel Hoisting Davit (Built in winch with 9m Cable)

SKU: 156-22-30

SD125 SST - 125kg Stainless Swivel Hoisting Davit (Built in winch with 9m Cable)

SKU: 156-22-30

€4.332,80

RRP TODAY'S PRICE €4.332,80

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Description

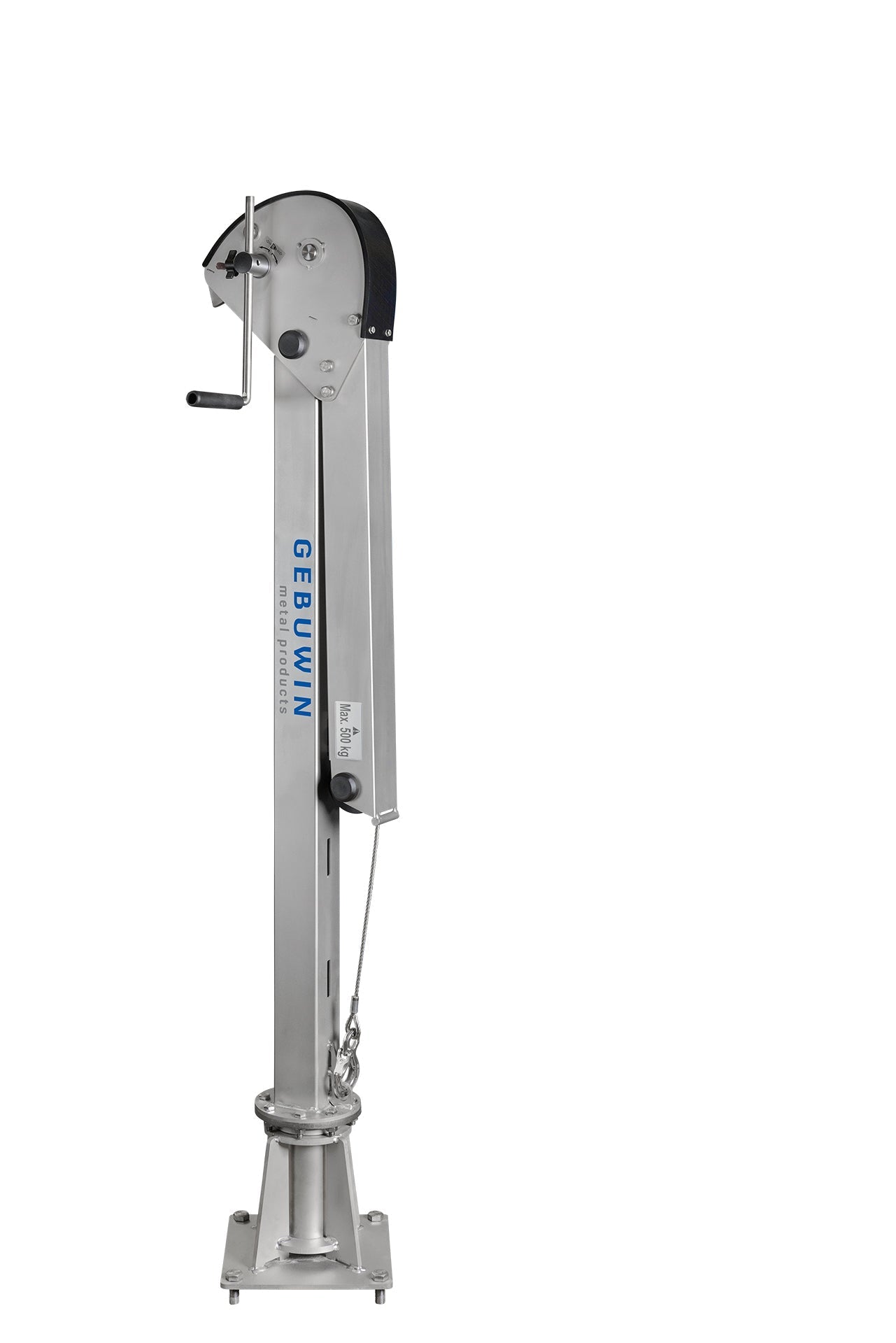

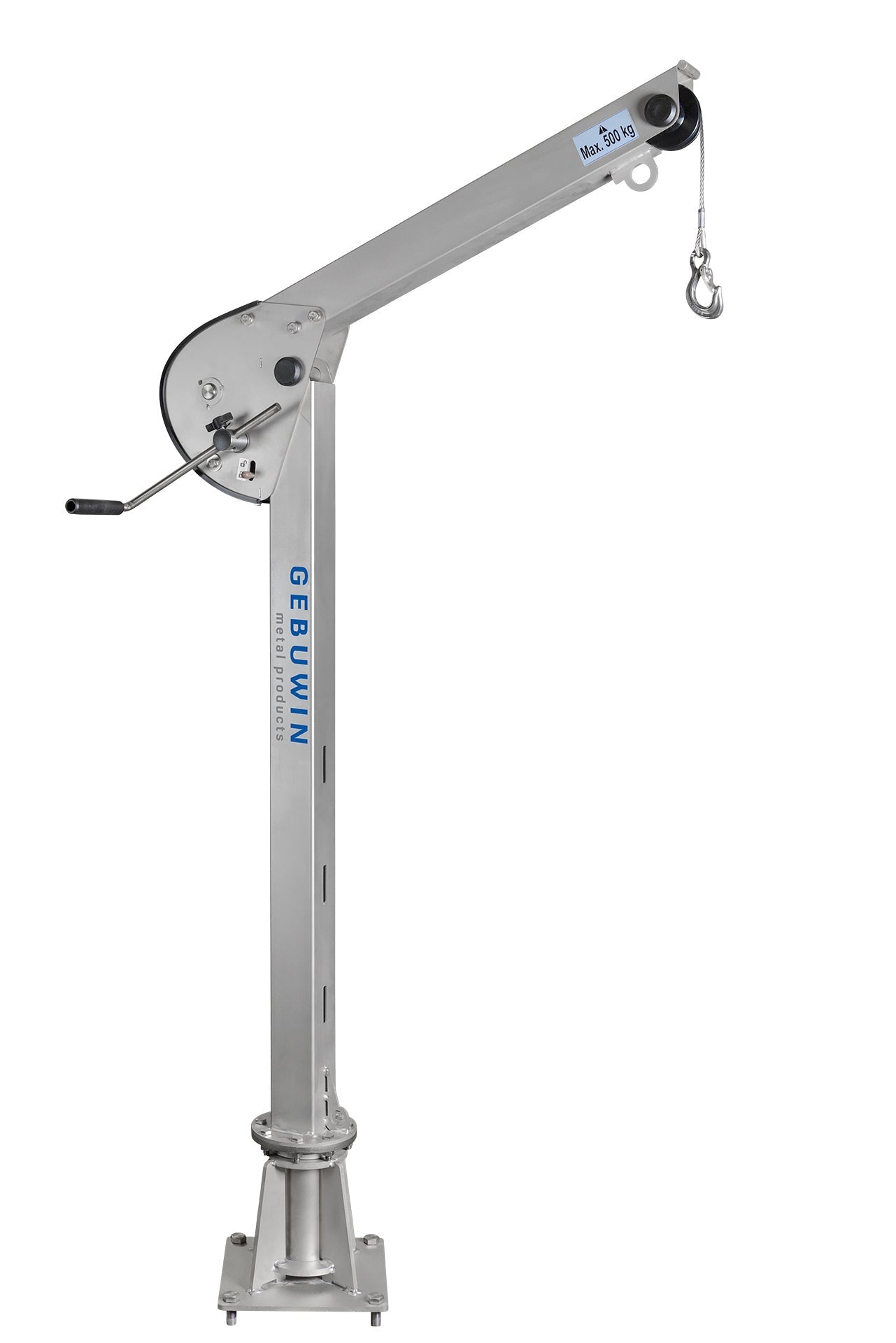

Gebuwin has developed this modern designed folding swivel davit crane especially for lifting goods on location. This davit crane helps you carry out your work efficiently without the risk of physical strain. Gebuwin produces three types of lifting davits, which vary in lifting capacity and length of the boom. Because of the integrated winch and cable, the davit crane is not only compact but also low-maintenance. The crank is also adjustable in length, so that the lifting speed can be adjusted. It is a very good solution to lift or lower a load in a very user-friendly way.

Robust and safe lifting davit crane in compliance with EN13157
Ready to use in 5 seconds
Integrated winch and cable in an ergonomic modern design
Easy to transport

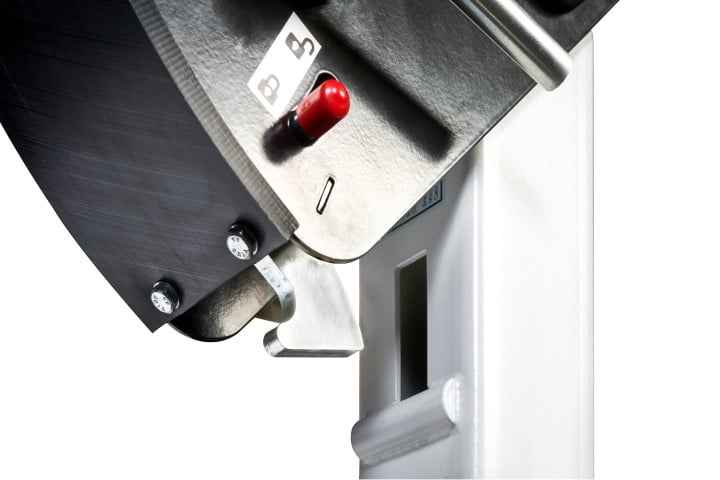

Load pressure brake with double ratchet system for safe stable hold of the load in any position
Possible to rotate 360° due to the use of ball bearings
Adjustable crank, with ergonomic grip
Maintenance free

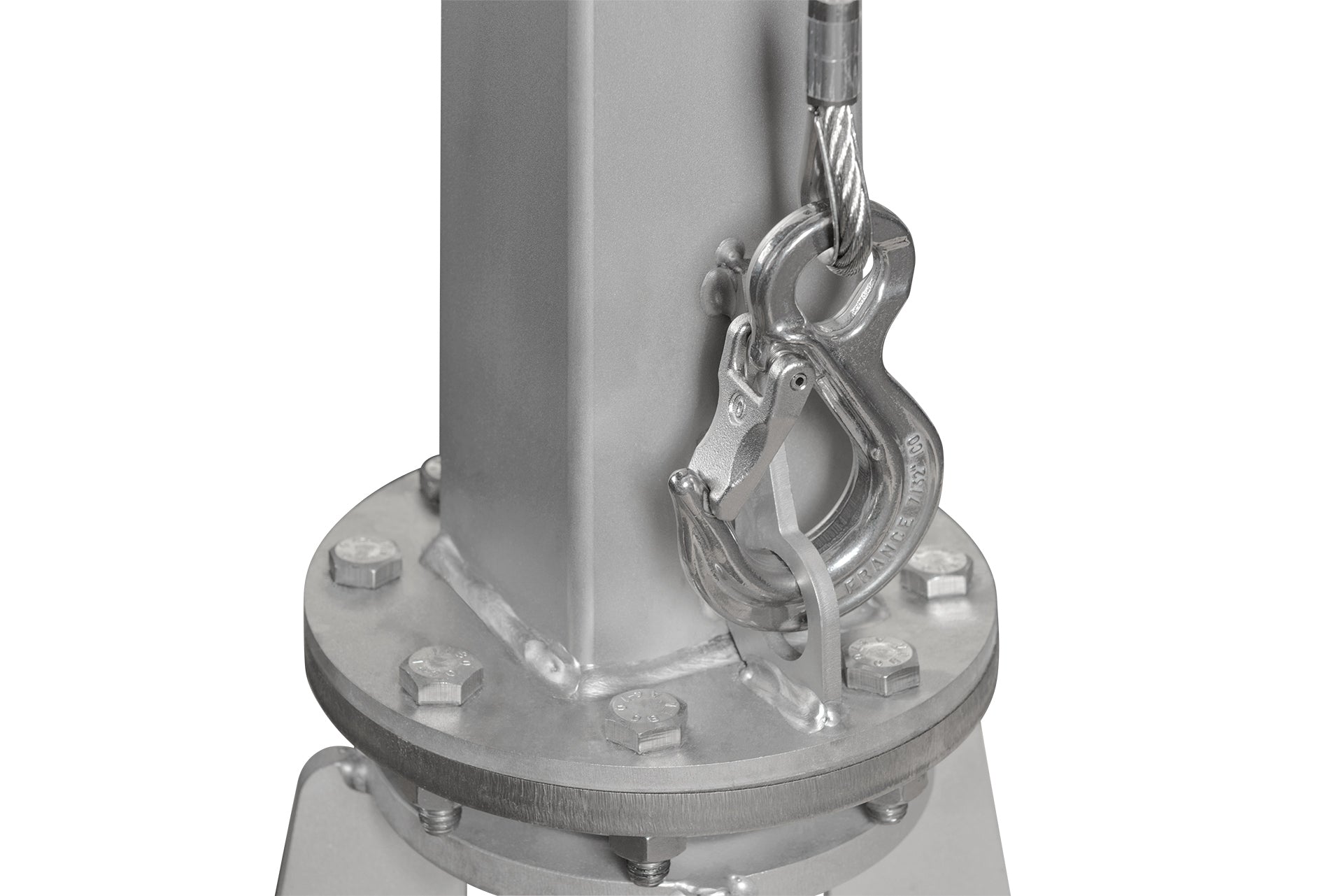

The davit includes a 9 metre length stainless steel wire rope (5mm diameter) with hook
Stainless steel grade 316 body
For standard painted (GR) or enhanced corrosion resistant models with zinc painted finish (EV), please contact our sales team sales@winchshop.co.uk

SKU 156-22-30 is for the Zinc SD125 SST Swivel Davit Only

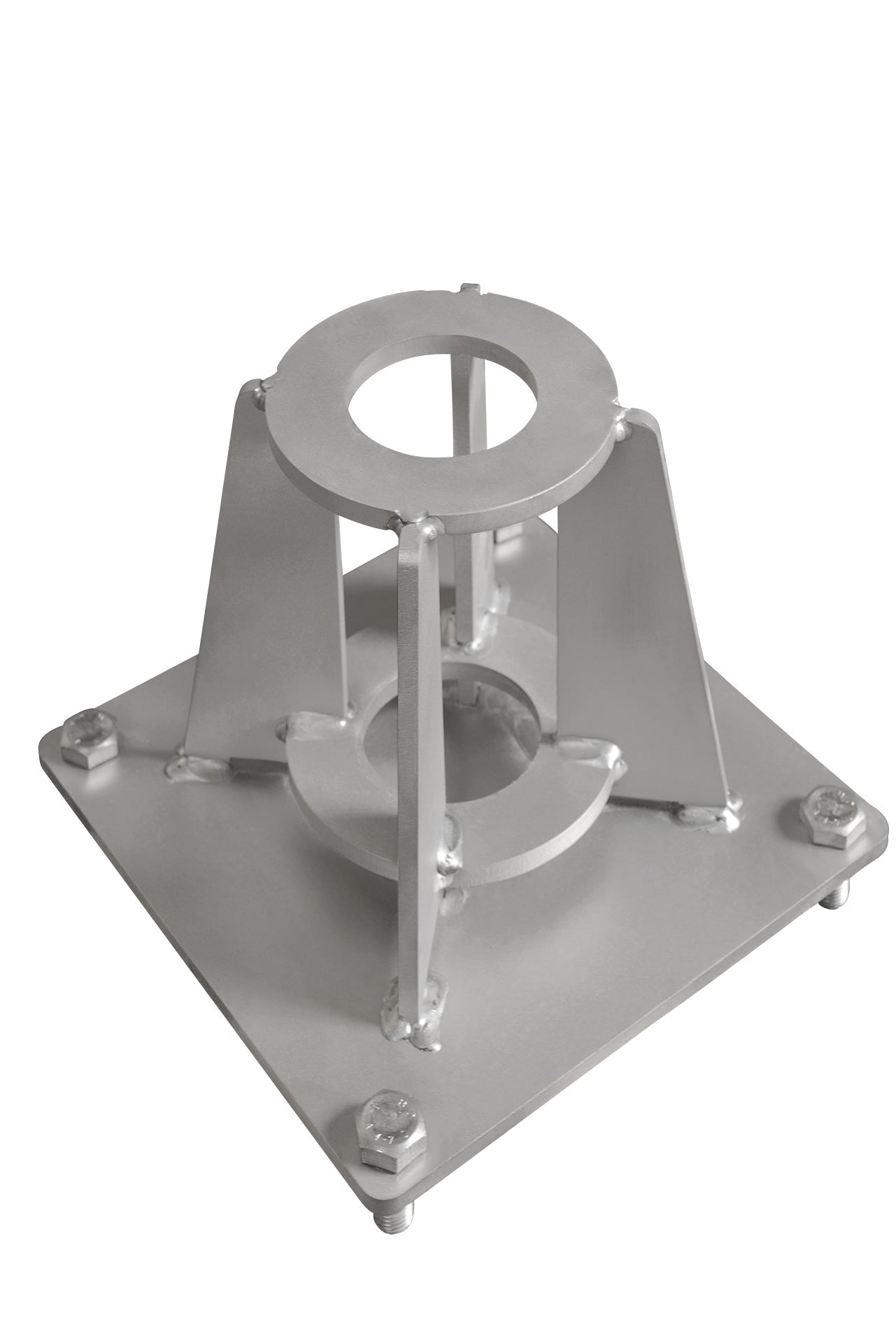

SKU 156-22-35 is for the Zinc SD125 SST Swivel Davit and Socket Box

Please note if these items are not in stock in our UK warehouse, the lead-time can be up to 3 weeks from order and will be confirmed at point of order.

Technical Info

Reach arm	60cm, 80cm, 100cm
Use near Salt or Fresh Water	Salt Water
Options	ATEX certified
Capacity 1st layer	125 kg
Capacity top layer	125 kg
Lifting speed	1.2m/min (4 ft/min)
Rope diameter-Ø	5 mm
Rope storage top layer	13 meter
Lift per crank rotation	20 mm
Crank effort at full load	6 daN
Weight Swivel davit	30 kg
Weight floor-socket	8,9 kg
Type name	SD125 SST
