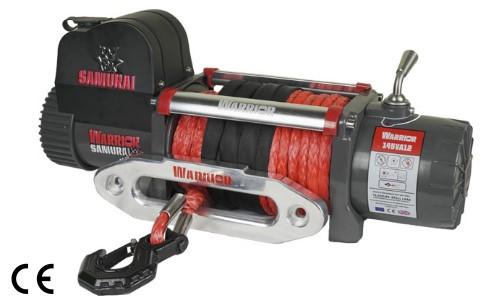

Samurai 14500 (6577kg) Electric Winch with Synthetic Rope

Samurai top performance vehicle winches just got better!

The premium “Next Generation V2” Samurai range are even faster than their predecessors, with a lower current draw and boasting a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there’s no heat build up in the drum, perfect for Synthetic Ropes.

With a line capacity of 14,500lb (6577kg), the Samurai 14500 vehicle winch is ideal for reliable recovery and 4x4 applications.

Outstanding features include high quality reversible 7.2hp series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with Aluminium Fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.

• Line Capacity: 14500lb (5400kg)
• Motor: Reversible 7.2hp 12v series wound motor - Powers In and Out
• Gearbox: Freespooling Clutch - Allows cable to be unwound manually
• Warranty: Limited Lifetime Warranty with 3-Year Electrical Cover

Please use this winch with the 15000lbs installation plate, our SKU 161-28-2

Features of 12v Option, our SKU 161-8-32

1. All Brass (no corrosion) Series Wound Motor

2. Double Sealed Motor

3. Sealed Waterproof Contactor

4. Contactor Cover for Added Protection

5. Double Sealed Drum (Gearbox/Motor)

6. Hook

7. Integrated Wireless Remote (12V only)

8. Aluminium Fairlead

9. Sealed 3 Stage Planetary Gears

Accessories included

• Wired Hand Control: 3m Wired Hand Control
• Wireless Control - 12v MODEL ONLY: Pre-Installed Heavy Duty Wireless Control with Lanyard
• Mounting Plate: Available as an optional extra
• Mounting Bolts: Included for Standard installations
• 5m Heavy Duty Battery Cables (May need extending depending on application)
• Battery Isolation Switch (Failure to fit will invalidate warranty)
• Instruction Manual

The wireless control supplied with this winch is intended for use in Leisure and Non Commercial applications only.
For commercial and industrial applications we would recommend fitting the Warrior Centurion control.

Specification

• Dimensions: 593mm L x 160mm D x 248mm H
• Mounting Bolt Pattern: 254mm x 114.3mm
• Line Pull - No Load: 9.5 m/min (60 Amps)
• Line Pull - Full Load: 1.4 m/min (380 Amps)

CE Certified
