IMER
SKU: 294-2-1
Read MoreIn stock (1)
Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

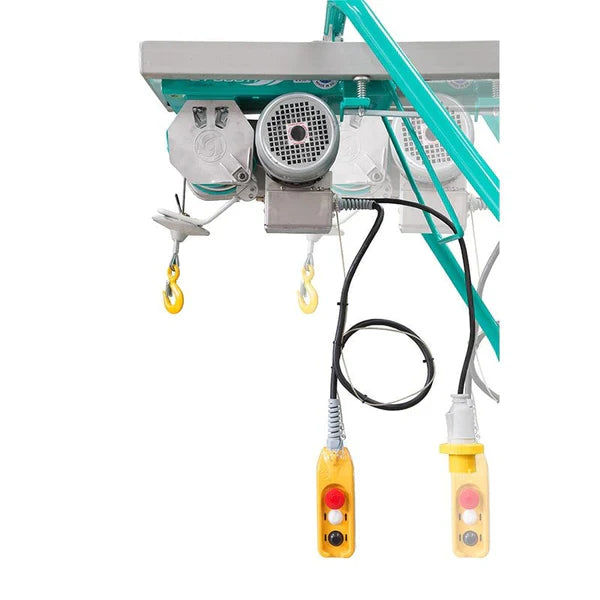

IMER ET300 Scaffold Hoist 300kg - 110v - 30m High Capacity
Stand hoist. Single-phase 110V/50Hz electric motor.
Average full load lifting speed: 19 m/min. Max. capacity 300 kg
It ensures maximum reliability and durability. The gearmotor is built with helical-toothed steel gears in oil bath.
SCAFFOLD HOIST ONLY
Available as part of a Complete Gantry Hoist Kit (294-2-11)
110v (294-2-1) and 230v (294-2-2) versions available.
| SKU | 294-2-1 | |
| Max Capacity | kg | 300 |
| Av. Full Load Lifting Speed | m/min | 19 |
| Max. Working Height | m | 30 |
| Steel Rope Dia. | mm | 5 |
| Rope Length | m | 31 |
| Electric Power Supply | V /Hz | 230 / 50 Sph 110 / 50 Sph |
| Motor Power Rate | kW | 1.1 |
| Motor Speed | rpm | 1320 |
| Running Current 230v (110v) | A | 12 (18) |
| Weight | kg | 50 |
| Dimensions w/l/h | mm | 330/780/380 |
| Packing Dimensions w/l/h | mm | 350/820/440 |
