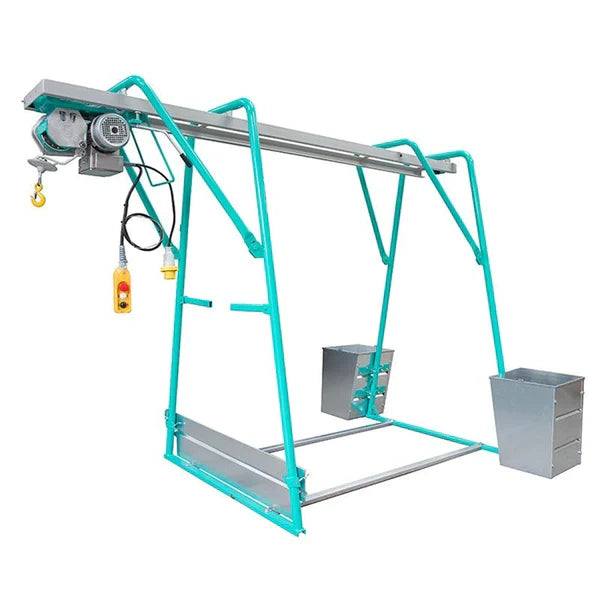

IMER ET300 Complete Builders Gantry Hoist System 300kg - 110v - 30m Wire Rope High Capacity

This 300kg Builders Gantry Hoist has a 30m height of lift which is designed to be used within scaffolding or on a flat room where there is no scaffold to attach a lifting hoist to. It has a running beam 3.3m long and allows an overhang of 1m beyond the edge of the safety board to enable material to be manoeuvred along the hoist runway safely and without effort.

It is ideal for the small builder or larger contractor to lift material from the ground or lower material to the ground safely. It has a top limit lever and micro switch to stop the hoist when it is at the top of its lift safely. The hook has a spring loaded safety catch to keep the load carrier within the hook. The Hoist also has a Brake to control the travel along its runway and Rubber stops at each end of the travel.

To comply with lifting regulations it comes complete with a front kickboard and lockable back ballast boxes.

*250kg Ballast Weight in each box is required but not supplied*

The Complete Hoist comes with:

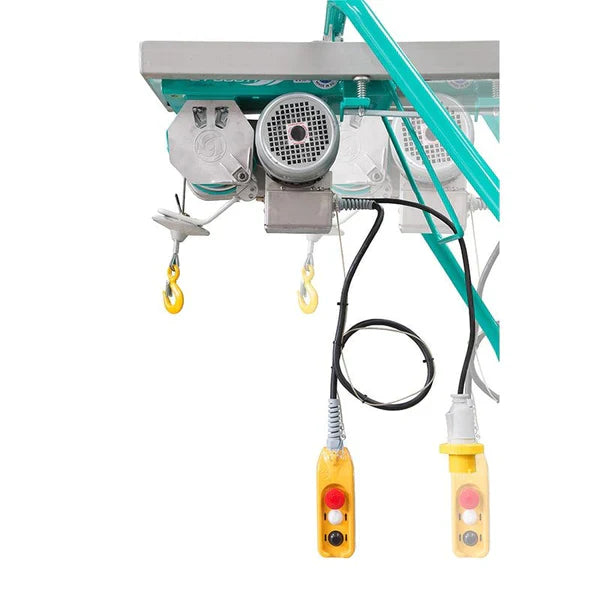

• ET300 Hoist
• ET300 Pendant
• Beam Trolley
• Gantry
• A-Frame
• Kick Plate
• Ballast Boxes
• IP65 plug
• Hook with block and wedge
• Hoist trolley with 4 aluminium wheels
• Upper limit safety device
• Hoist trolley positioning brake
• Self-braking motor with brake rectifier
• Lockable ballast boxes

110v (294-2-11) and 230v (294-2-12) versions available.

Available to buy as Scaffold Hoist ONLY without attachments: 110v (294-2-1) and 230v (294-2-2).
