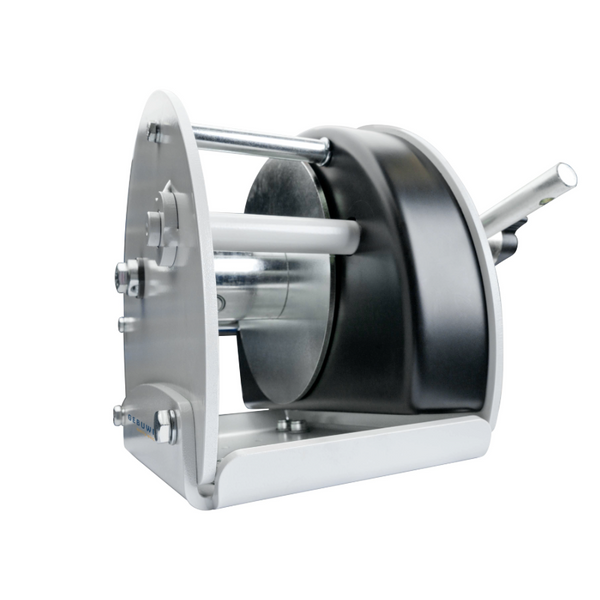

Gebuwin CW700 Console Hand Winch

The user advantage for this Gebuwin CW700 spur gear winch is it's fast winching action (2.2 m/min) compared to comparable models. It's spur gear cranking is easy for the operator. When it comes to positioning the winch for use, it can be mounted on both walls and floors.

An impressive 1st layer lifting capacity of 700kg, gives the CW700 a handy lifting capacity.

The free spool option on this CW700 winch makes it possible to disengage the drum from the winch to pull out the wire quickly. In addition free spooling operation is possible with the use of a drill (not supplied). See user instructions for further details on this operation.

Important, please note, the drill operation is not possible with the CW700 lifting or pulling operations, it can only be used for free spooling the cable.

Due to it's load pressure brake, the load is held in position when the user stops cranking the winch handle. In addition to IP54 water resistance, this winch is also available in stainless steel grade 304 and 316 as an extra cost option. Several cable outlets are also possible, making this winch a good option for many manual winching applications.

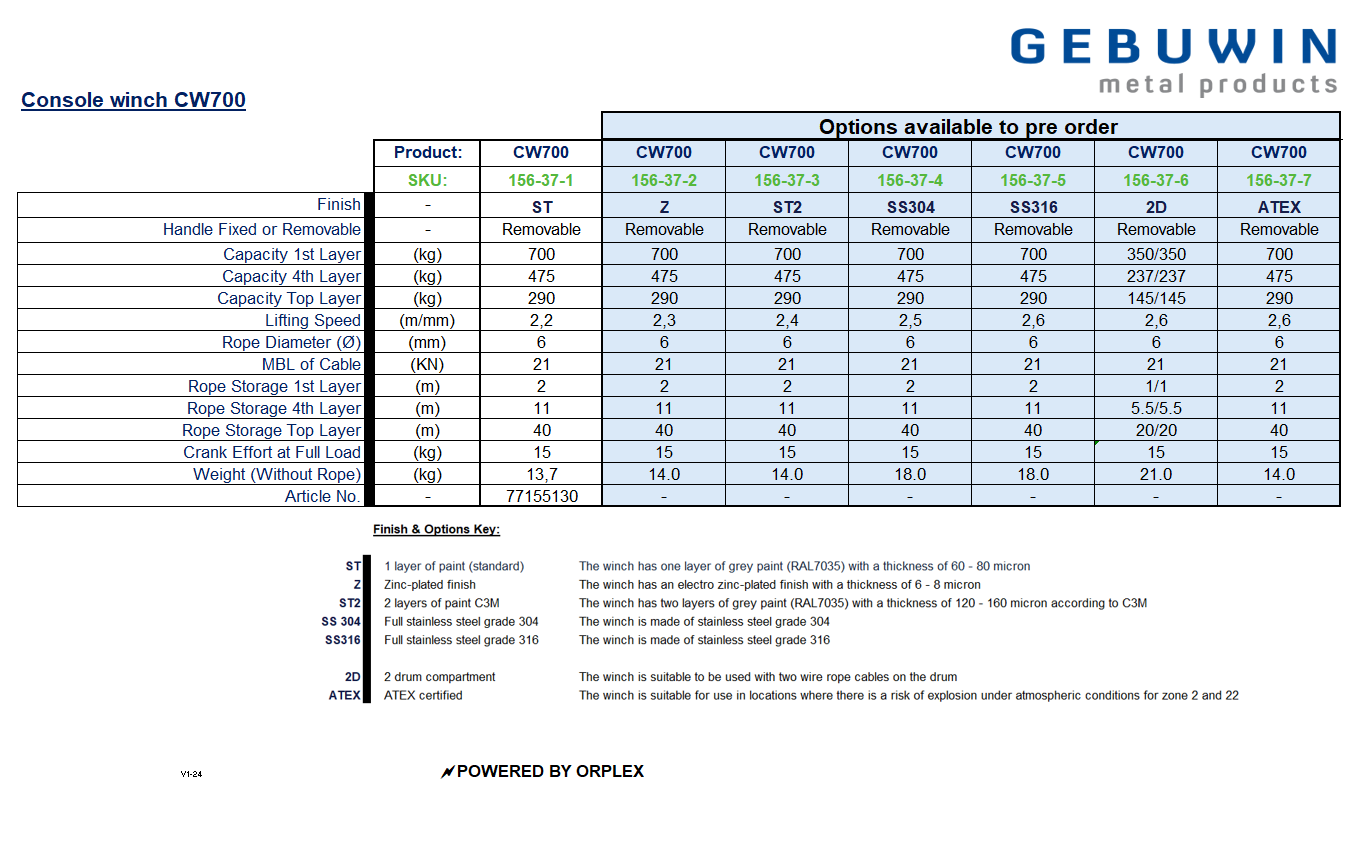

Specifications

• Winch suitable for lifting and pulling in compliance with EN13157
• Lifting capacity 1st layer 700kg.
• Lifting capacity top layer 290kg
• Lifting speed 2.2m/min
• Static safety factor 4:1
• Protection classification IP54
• Load pressure brake with double ratchet system for safe stable hold of the load in any position
• Cable outlet upwards, downwards or at the left
• Closed gearbox to protect against environmental influence
• Fast spur gear winching action at 2.2 metres per minute
• Free spool – to disengage the drum
• Adjustable crank
• Suitable for wall and floor mounting
• Painted Finish as standard - 1 layer of paint (304 and 316 Stainless Steel available as option)
