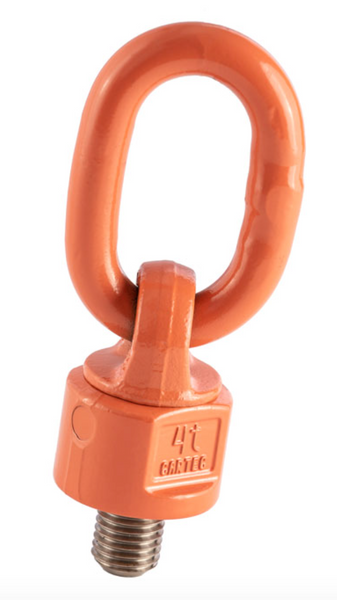

Cartec Grade 10 Rotating Eyebolt with Ring - 800X

SKU: 286-611-1

SKU: 286-611-1

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

Grade 10 alloy steel.
Pink painted finish.
Designed, tested and certified in compliance with the technical directives GS-OA15-04 – BS EN 1677.
Minimum breaking load is 4 times the W.L.L.
Can be oriented at 360° with self aligning tilting ring at 180°.
On the axial pull there can be variation of +/-5° with a 10% decrease in capacity.
Not suitable for continuous rotation under load.
Full CAD support available upon request.
Certification - Declaration of Conformity

Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

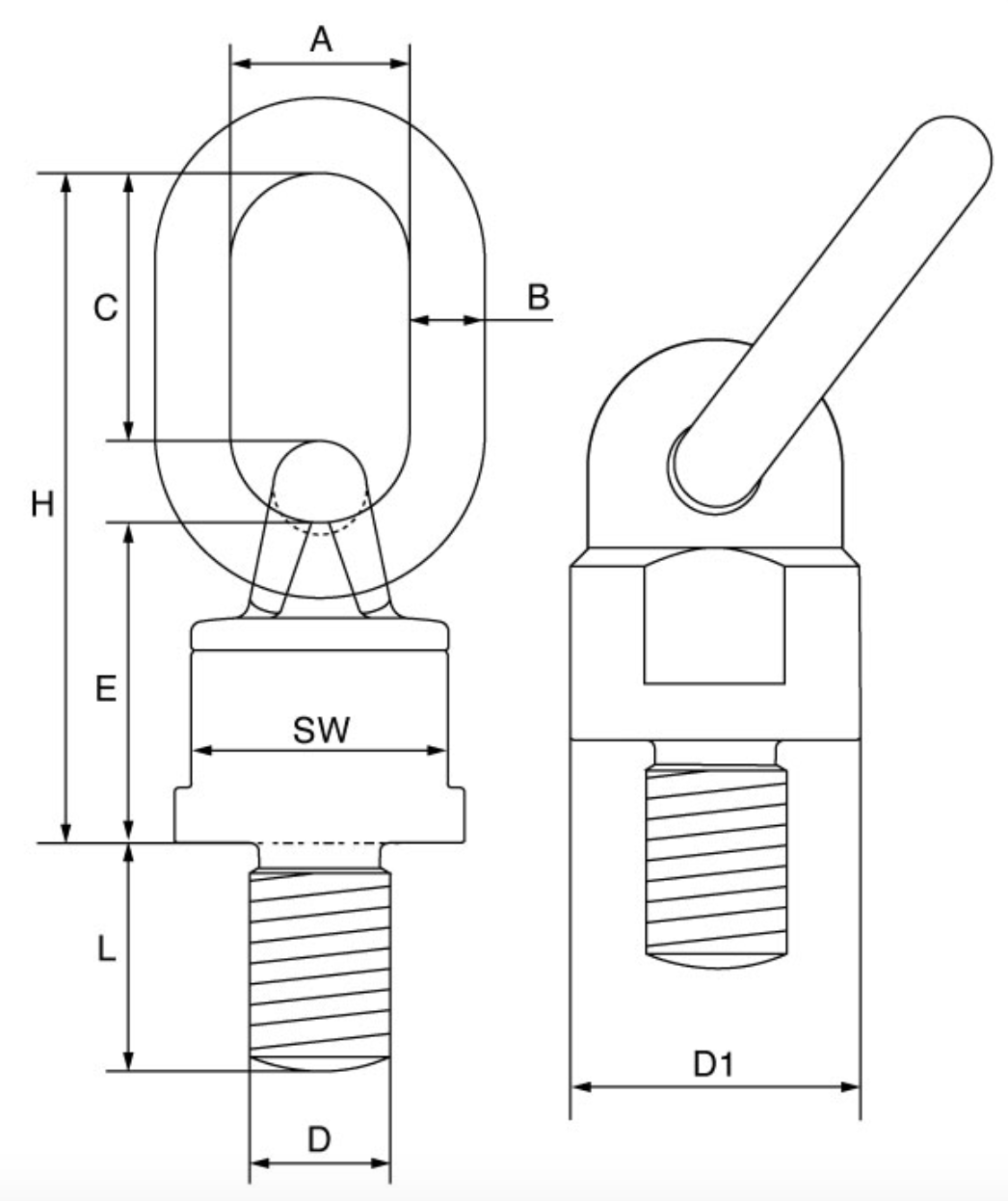

SKU	D	L	W.L.L	A	B	C	E	D1	H	SW	Torque	Weight
	mm	mm	t	mm	mm	mm	mm	mm	mm	mm	Nm	kgs
286-611-1	M10	18	0.5	30	13	46	50	38	105	30	16	0.48
286-611-2	M12	18	0.7	30	13	46	50	38	105	30	28	0.5
286-611-3	M16	20	1.4	30	13	46	50	38	105	30	70	0.53
286-611-4	M20	30	1.7	30	13	46	50	38	105	30	135	0.53
286-611-5	M20	30	2.5	34	16	57	61	50	131	40	135	1.05
286-611-6	M24	30	1.7	30	13	46	50	38	105	30	230	0.53
286-611-7	M24	30	4	40	18	70	68	58	153	48	230	1.63
286-611-8	M30	35	4	40	18	70	68	58	153	48	465	1.63
286-611-9	M30	35	6.7	45	22	65	71	80	156	70	465	2.85
286-611-10	M30	45	8	50	23	91	86	90	200	80	465	4.4
286-611-11	M36	54	10	50	23	91	86	90	200	80	814	4.62
286-611-12	M42	63	12.5	50	23	91	86	90	200	80	1304	5.2
286-611-13	M45	60	12.5	50	23	91	86	90	200	80	1670	5.2
286-611-14	M48	72	12.5	50	23	91	86	90	200	80	1981	5.2
286-611-15	M45	60	16	70	32	120	112	100	262	100	1670	10.9
286-611-6	M48	60	17	70	32	120	112	100	262	100	1981	10.9
286-611-17	M56	78	18	70	32	120	112	100	262	100	3000	10.9
286-611-18	M64	96	20	70	32	120	112	100	262	100	4738	10.9
286-611-19	M64	96	28	90	45	124	165	140	333	140	4738	29
286-611-20	M72	108	31.5	90	45	124	165	140	333	140	6913	29
286-611-21	M80	120	35	90	45	124	165	140	333	140	9625	29
286-611-22	M90	135	40	90	45	124	165	140	333	140	14000	29
