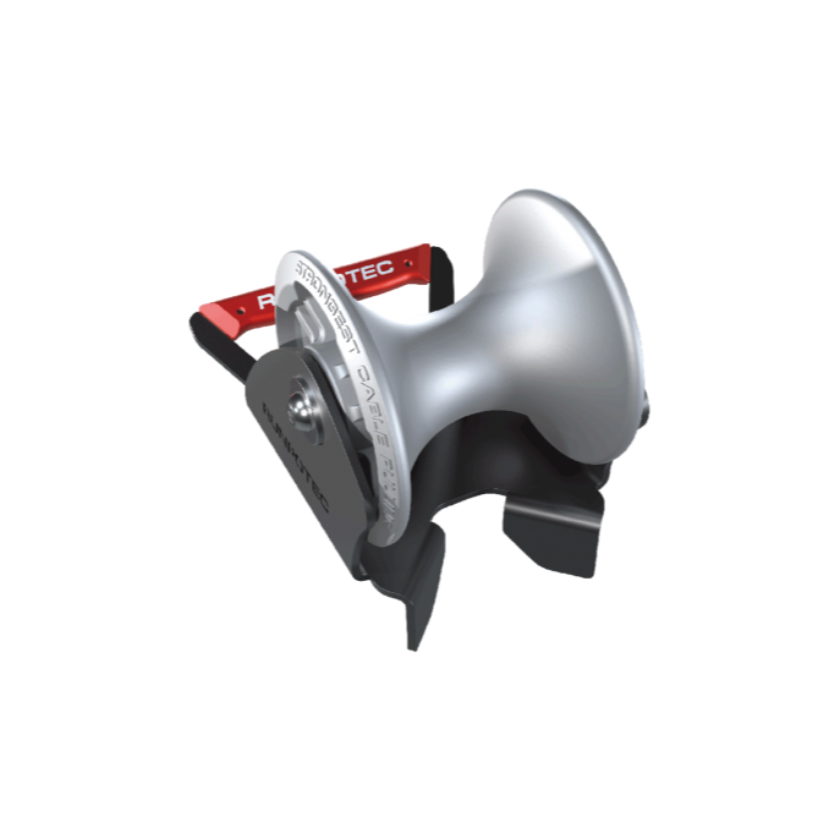

The cable guide roller - shaft inside edge is ideally suited for mounting on the edge of a shaft or on steps to pull cables gently around corners with the least possible resistance. A right-angled stop is provided by the two lugs. It can be secured in place with a belt or screws via the assembly opening. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality die-cast aluminium rollers with integrated ball bearing and the sturdy powder-coated steel frame guarantee a long service life.

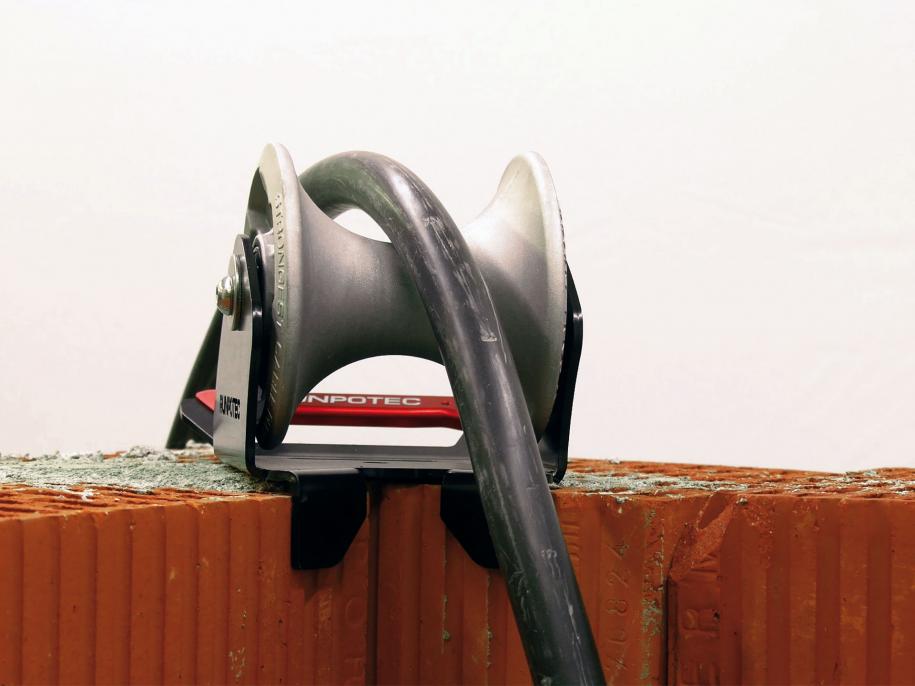

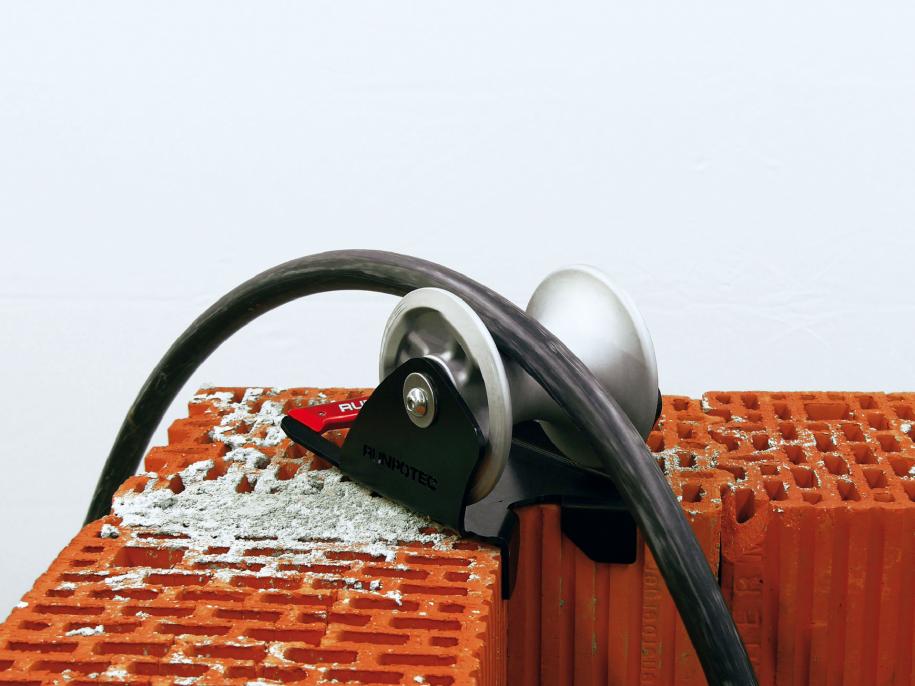

Optimum area of application: for mounting on the edge of a shaft or on steps to pull cables gently around corners
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: 1 x cable guide roller - shaft inside edge

• Aluminium heavy-duty rollers with stainless steel ball bearings

• Robust metal frame

• CDP coating

• Ergonomic aluminium carrying handle

• Load bearing capacity 1.500 kg

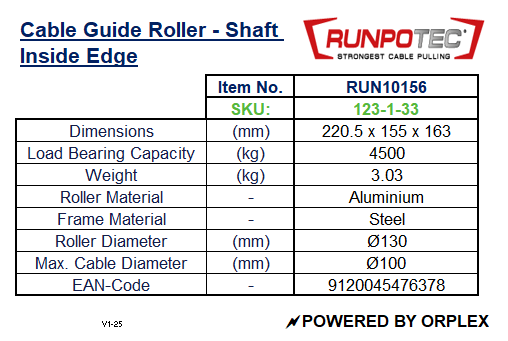

Spec
