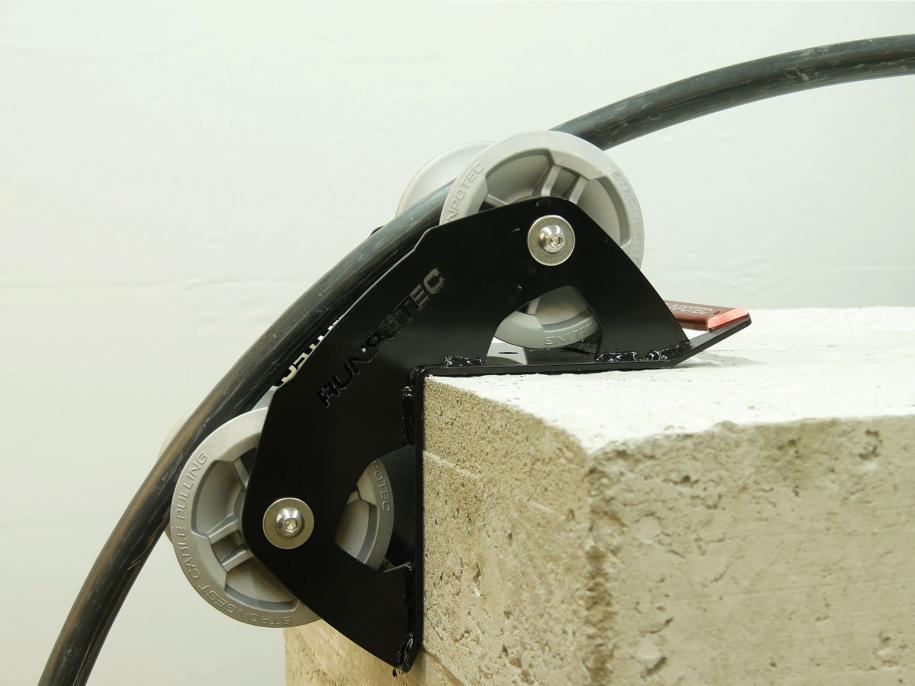

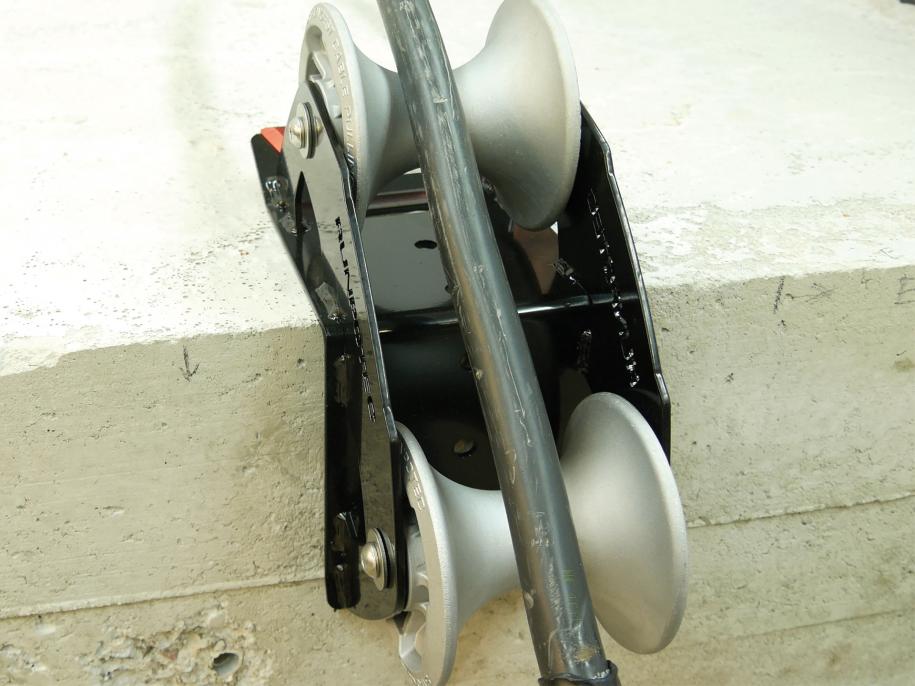

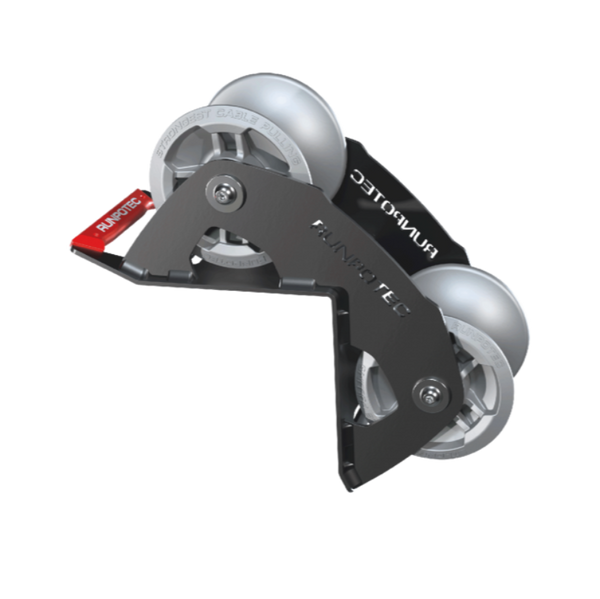

The 90° cable guide roller is ideally suited for use on various edges to pull cables gently around corners with the least possible resistance. It can be secured in place with a belt or screws via the assembly openings. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality, heavy-duty die-cast aluminium rollers with integrated stainless steel ball bearings and the sturdy powder-coated steel frame guarantee a long service life.

Optimum area of application: to pull cables gently and effortlessly around corners or edges
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: 1 x 90 degree cable guide roller

Advantages

• Aluminium heavy-duty rollers with stainless steel ball bearings

• Robust metal frame

• CDP and powder coated

• Ergonomic aluminium carrying handle

• Load capacity 4500 kg

Download - EN-RUNPOTEC-data-sheet-cabel-guide-roller-90-degrees-10153.pdf
