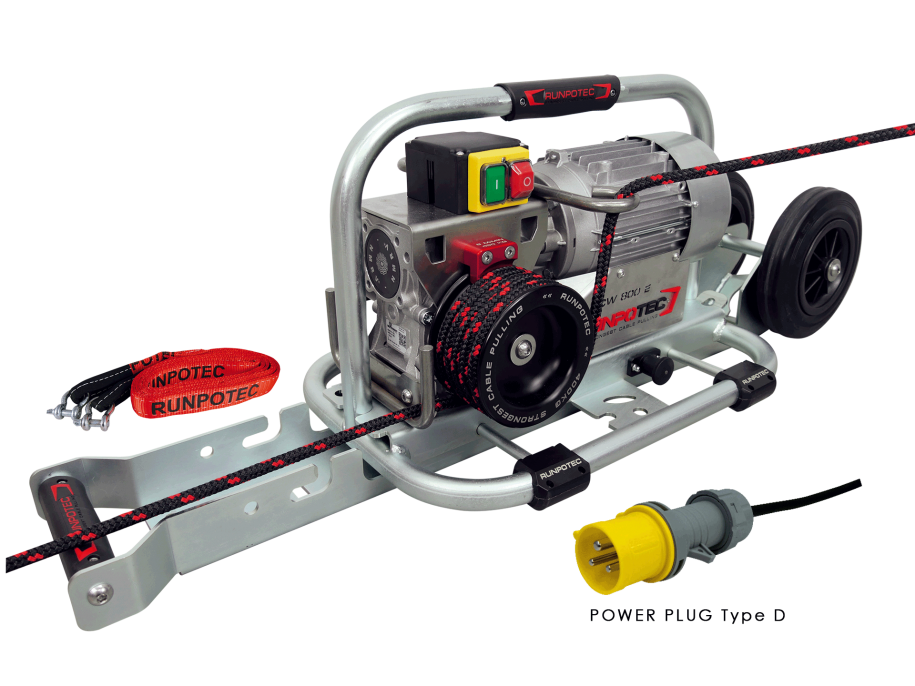

115V Powered Capstan Winch including Steel Trolley Mounting Rail And Strap

Ideally suited for horizontal pulling of one or more cables. Where several persons are needed for higher pulling loads on many sites, one person is sufficient to pull in the cables with the CW 800 E-115V capstan winch by RUNPOTEC with a choice of 800 kg or 400 kg.
The capstan winch can be fixed via the mounting holes or attached to solid objects with the enclosed strap. The trolley mounting rail also offers a very practical fastening option. It can be attached to the trailer hitch of a vehicle through the special coupling opening. It is also possible to mount the rail horizontally or vertically, and then simply hook in the CW 800 E-115V capstan winch and fasten it using the two fixing bolts.

The whole unit only weighs around 41kgs, making it suitable to move around to different locations on site.

NOTE - THIS PRODUCT HAS A LEADTIME OF 4 TO 5 WEEKS FROM ORDER IF OUT OF STOCK, GENERAL LEAD-TIME IS 2-3 DAYS FROM ORDER

RUNPOTEC recommends the use of Ø 10 mm polyester for the
pulling rope as this has the ideal wrap factor

Safety instructions:
Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons.

Optimal area of application: for horizontal cable pulling.
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: capstan winch CW 800 115V with UK Power Plug including 1x trolley mounting rail and 1 x 3m strap
