Electric 110v | 2500kg Pulling Capstan Cable Pulling Winch

Name: Electric 110v | 2500kg Pulling Capstan Cable Pulling Winch
Brand: CABLEITUK
SKU: 108-1-1
Price: 6022.08 EUR
Availability: InStock

CABLEITUK SKU: 108-1-1

1 1

Electric 110v | 2500kg Pulling Capstan Cable Pulling Winch

Electric Cable Puller Winch - 2500kg Pulling Capacity (with Small Drum) The Cable Puller provides the perfect solution to installing long or heavy lengths of cable in difficult locations. It reduces... Read More

CABLEITUK SKU: 108-1-1

€6.022,08

RRP TODAY'S PRICE €6.022,08

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

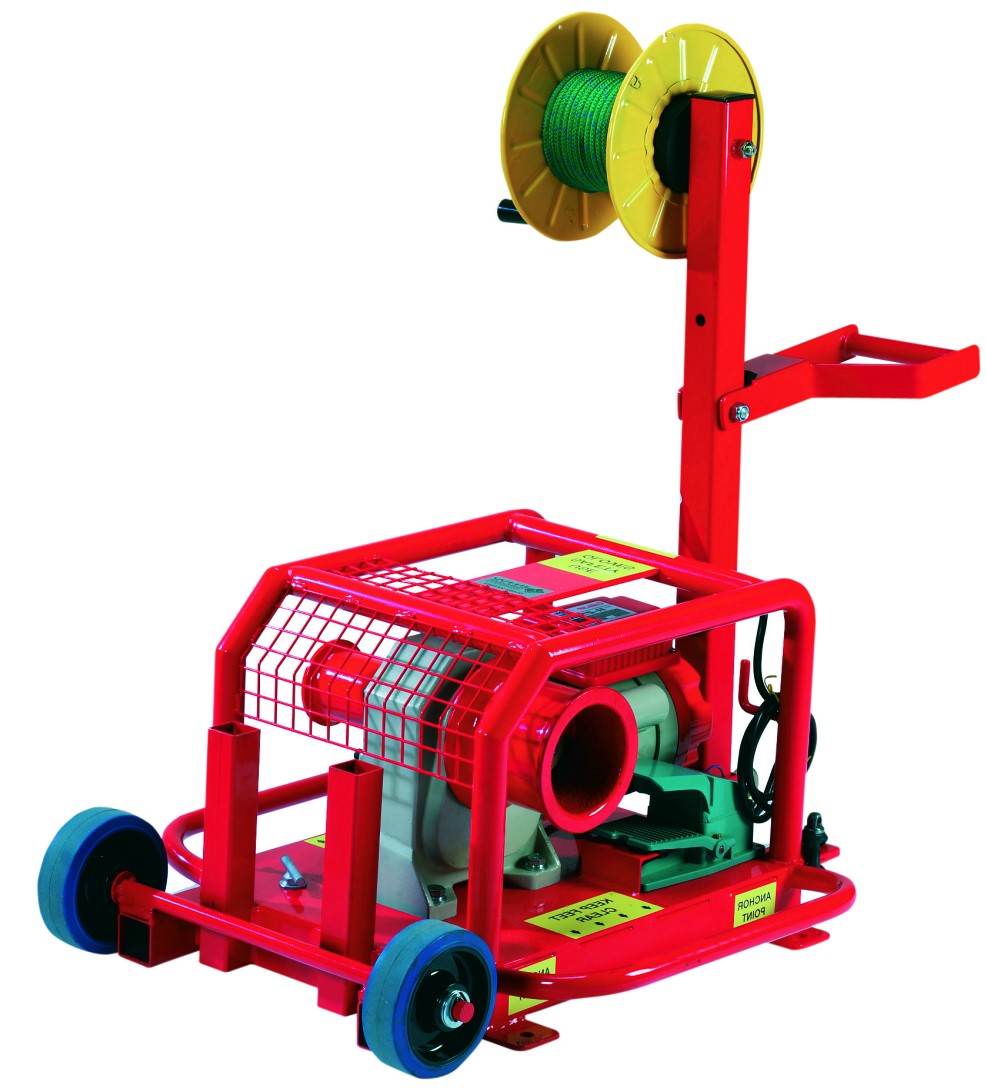

Electric Cable Puller Winch - 2500kg Pulling Capacity (with Small Drum)

The Cable Puller provides the perfect solution to installing long or heavy lengths of cable in difficult locations. It reduces the manpower hours required to meet installation deadlines, and is safer and faster.

Unlimited length of pull and choice of rope speed
Compact, lightweight and portable
110V or 240V AC model for internal use in buildings and tunnels
Reverse rotation for controlled release at high loads
Small drum supplied as standard, please request large drum
If not in stock this item can have a lead-time of 1 to 2 weeks, please enquire with sales@rigginguk.co.uk for further information.

Recommended 10mm pulling rope HERE

CABLE PULLER	*SMALL DRUM	LARGE DRUM
Cable Pulling Capacity (kg)	2500	1500
Rope Speed m/min (approx.)	2.5	4.0
Dimensions (mm)	L: 665 x W: 550 x H: 400	L: 665 x W: 550 x H: 400
Weight (kg)	80	80
Running current: 8amp = 110v : 4amp = 240v
Minimum Power required: 3.5 KVA Generator
