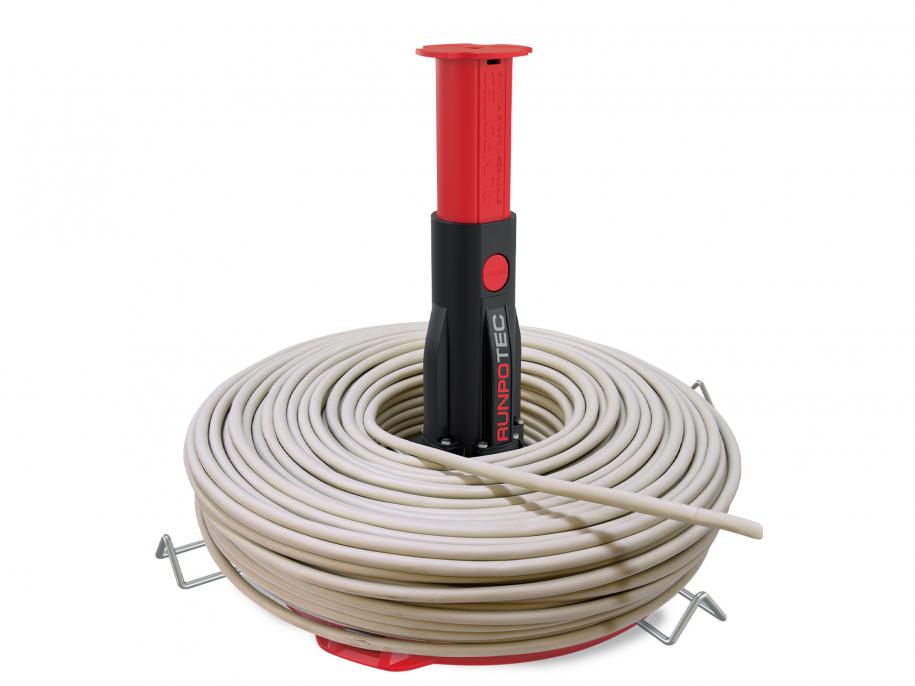

The compact X-BOARD - XB300 is a universal professional cable winder/unwinder for all small to medium cable reels. The XB300 impresses with its small, light and flat design, but can still be loaded up to 300 kg. Especially suitable for damaged cable drums. Due to the removable mandrel, cable drums with different hole sizes can be used.

The multi-function mandrel has been specially developed for the X BOARD XB 300 cable rolling system. Loose cable bundles can also be rolled by attaching them to the stainless steel centre mandrel of the XB 300 and then folding out the 4 side brackets.

6 rubberised feet ensure a non-slip and stable base. Optimal for protecting surfaces for already finished floor coverings.

Stowed in RUNPOTEC system-case - Sortimo compatible

Optimum area of application:

XB 300: rolling of (damaged) cable drums up to max. 300 kg and loose cable bund- les or individual wires up to a max. height of 294 mm and a max. diameter of 430 mm

Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.

Scope of delivery: 1 piece X BOARD XB 300 including multi-function mandrel in RUNPOTEC system case

• Universal cable drum rewinder and unwinder
  For all types of cables and cable drum even with very small inner diameters
• Compact - lightweight -
  1.26 g net weight
• Loadable up to 300 kg
• Excellent for damaged cable drums
• No cable clutter
• Trouble-free and rational work approach
• Non-slip and stable base
• Can be used in combination with XB 300 and XB 500
• allows loose cable bundles and individual wires to be rolled
• Telescopic centre mandrel, extendable up to 294 mm
  this allows high cable bundles or corresponding tube bundles to be accommodated
