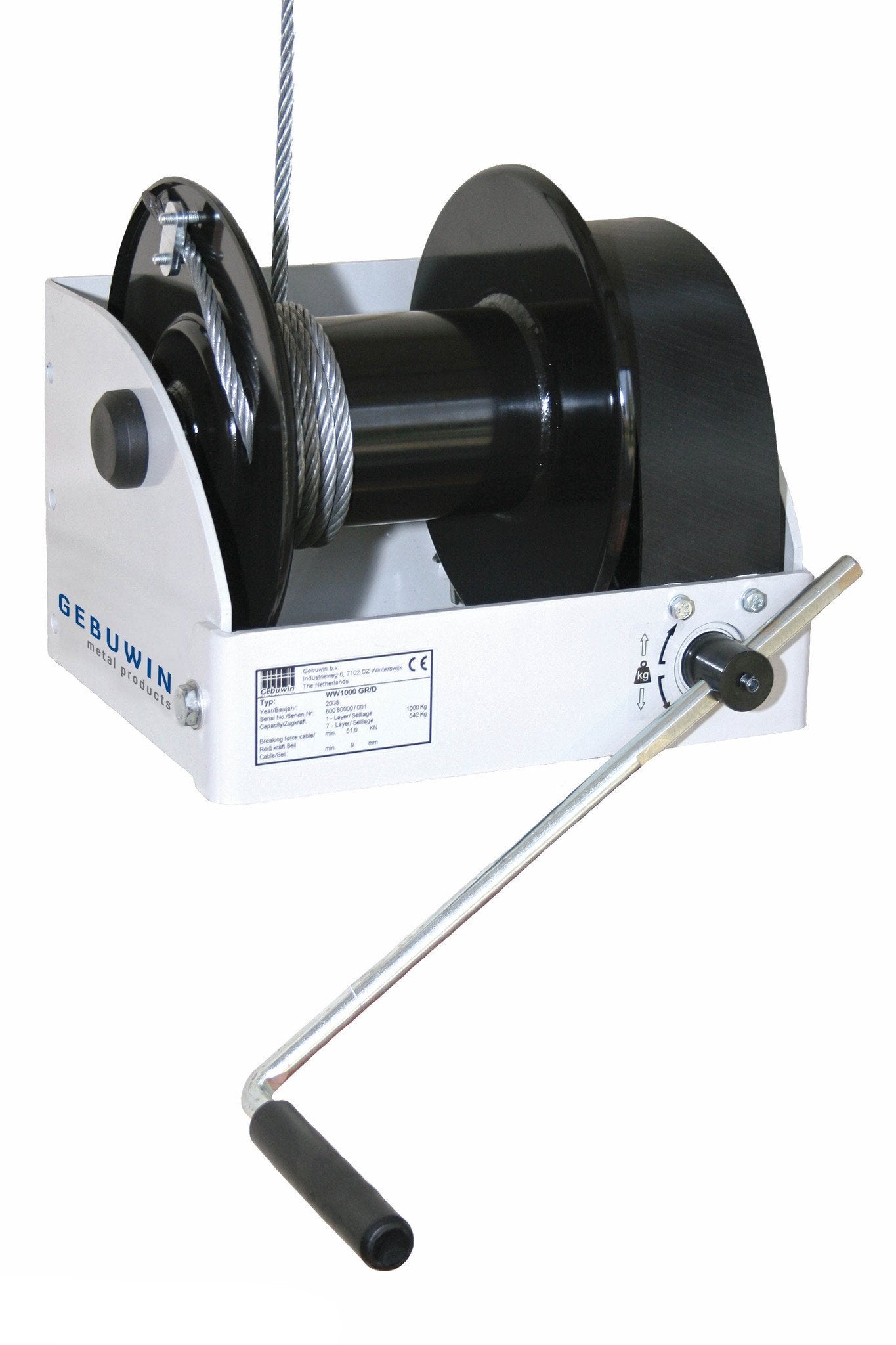

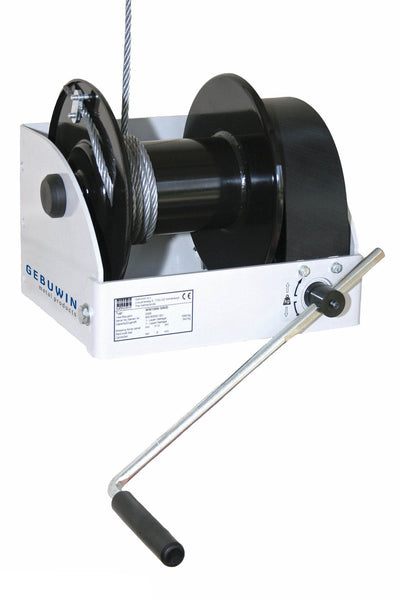

WW250, 500, 1000 & 1500 GR/D Single Drum Wormgear Winch Ref: 156-1

Worm gear hand winch 250 - 1500 kg Ref: 156-1

The Gebuwin worm gear hand winch has a transmission that consists of a worm shaft and wheel. Due to the fact that this transmission causes friction loss it also provides 50% of the braking system. The load pressure brake provides the other 50%. The combination of the braking system and robust design results in a very safe hoisting and pulling winch.

• Robust construction
• Primarily used for hoisting, also possible for pulling loads
• The braking mechanism consists of 50% by the friction in the worm gear transmission and 50% by a load pressure brake
• Static safety minimum factor 4
• Adjustable crank and recoil free
• All rotating parts run in maintenance free bearings
• The numbers in the product name correspond with the hoisting capacities on the first cable layer. Pulling capacity is approx. 2.5 times the hoisting capacity
• Cable outlet possible upward, downward and at rear.
• Standard paint finish in grey (RAL 7035) and black (RAL 9005) according to DIN 12944, C1M
• WW1000 and WW1500 are suitable for winch power tool AM5000

Options

1. GD = Grooved cable drum
2. EV = Zinc plated finish with a minimum of 6 micron
3. EX = ATEX certified, for zones 2 and 22
4. XD = Multiple (X) cable compartments possible
5. 2D = Twin Drum LINK

Specification

Product Sheet WW250 - WW1000
