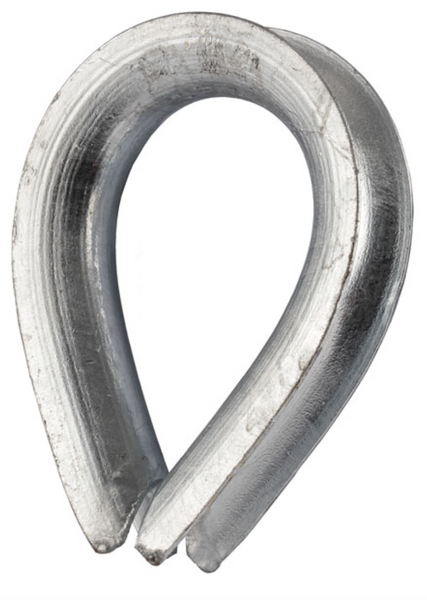

Wire Rope Thimble - BS Style

Green Pin SKU: 286-807-1

1 2

Wire Rope Thimble - BS Style to BS EN 13411-1 Mild steel. Hot dipped galvanised finish. Meets the performance requirements of BS EN 13411-1.* Meets the performance requirements of the withdrawn standard BS 464.* For use with wire ropes. Certification available Specification SKU Rope Dia A B L C S Weight inch mm mm mm m Read More

€0,68

RRP TODAY'S PRICE €0,68

Out of stock (0)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Wire Rope Thimble - BS Style to BS EN 13411-1

Mild steel.
Hot dipped galvanised finish.
Meets the performance requirements of BS EN 13411-1.*
Meets the performance requirements of the withdrawn standard BS 464.*
For use with wire ropes.
Certification available

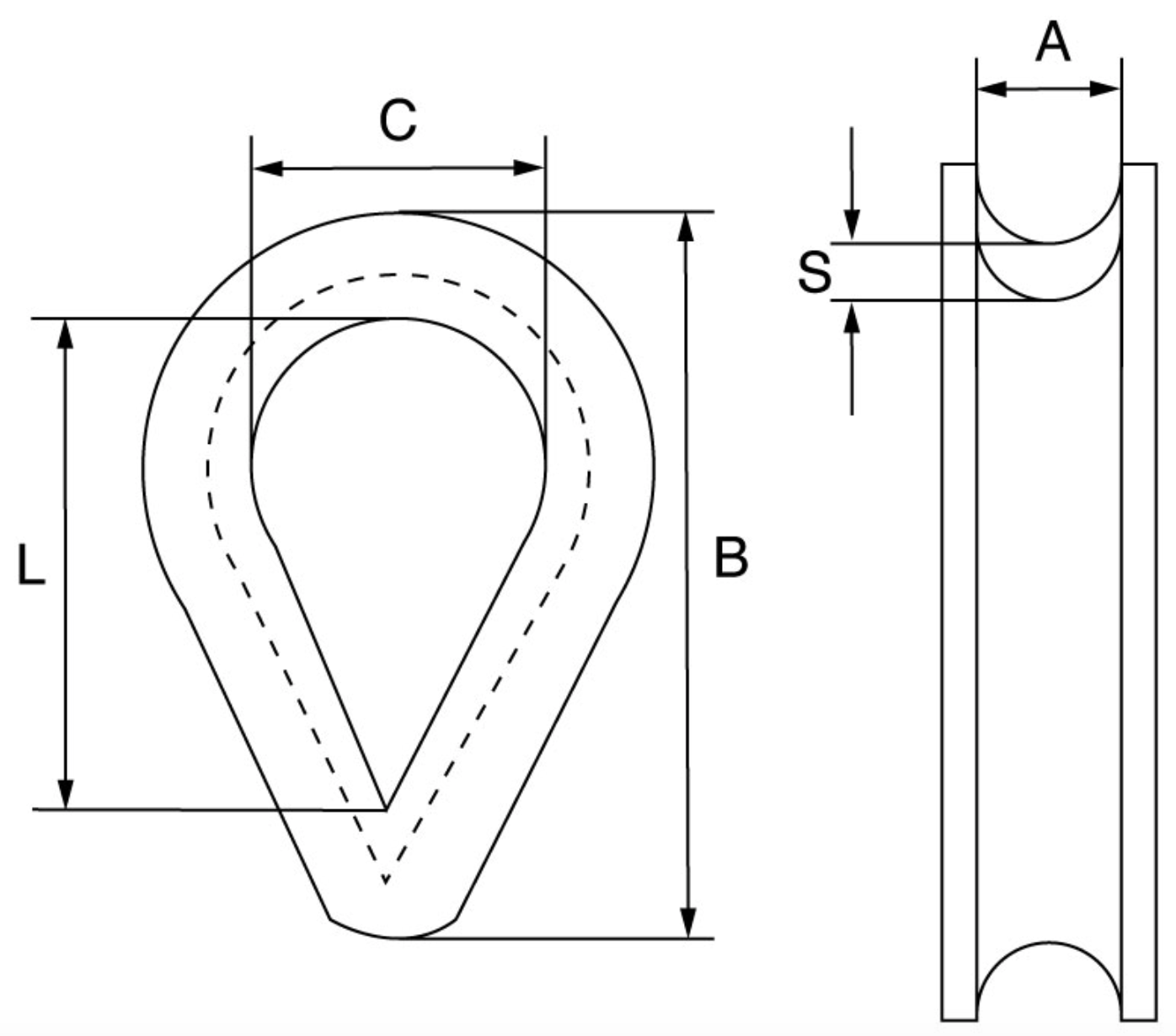

Specification

SKU	Rope Dia	A	B	L	C	S	Weight
	inch	mm	mm	mm	mm	mm	kgs/100
286-807-1	1/4	7	45	26	18	4	4.1
286-807-2	5/16	8	54	33	22	4	6.5
286-807-3	3/8	10	64	38	25	4.8	9.5
286-807-4	1/2	14	80	44	32	5.6	13
286-807-5	5/8	16	98	59	41	7.9	30
286-807-6	3/4	21	124	73	51	9.5	51.5
286-807-7	7/8	22	133	83	57	9.5	69.0
286-807-8	1	27	162	108	70	10.3	99.5
286-807-9	1 1/8	29	178	111	76	12.7	129
286-807-10	1 1/4	33	197	133	95	12.7	145
286-807-11	1 3/8	38	229	152	105	15.9	238
286-807-12	1 1/2	41	254	165	114	17.5	340
286-807-13	1 5/8	43	254	165	114	17.5	499
286-807-14	1 3/4	51	286	178	127	25.4	532
286-807-15	2	64	330	203	140	28.6	695
