Wire Rope Grip BS EN Style - Type A

GT SKU: 286-800-1

1 3

Wire Rope Grip BS EN Style - Type A

Wire Rope Grip BS EN Style - Type A Malleable steel ungrooved bridge. Mild steel u-bolt and nuts. Electro galvanised finish. Meets the performance requirements of BS EN 13411 Part 5... Read More

GT SKU: 286-800-1

€0,38

RRP TODAY'S PRICE €0,38

In stock

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

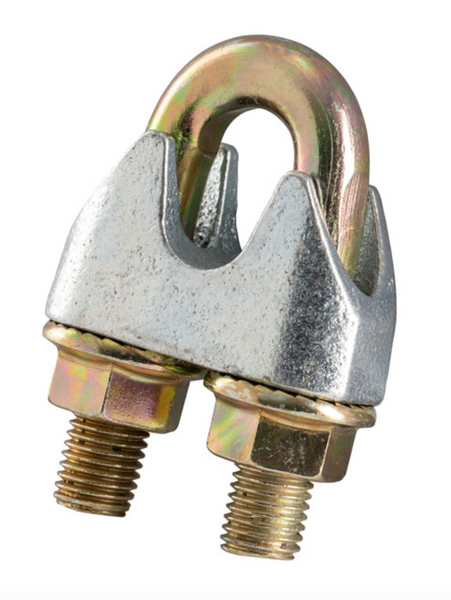

Wire Rope Grip BS EN Style - Type A

Malleable steel ungrooved bridge. Mild steel u-bolt and nuts.
Electro galvanised finish.
Meets the performance requirements of BS EN 13411 Part 5 Type A (Formerly DIN 1142). 13mm is additional and proportional to the standard.*
Marked with size on bridge and manufacturers ID on bridge and U bolt.
Certification available DoC

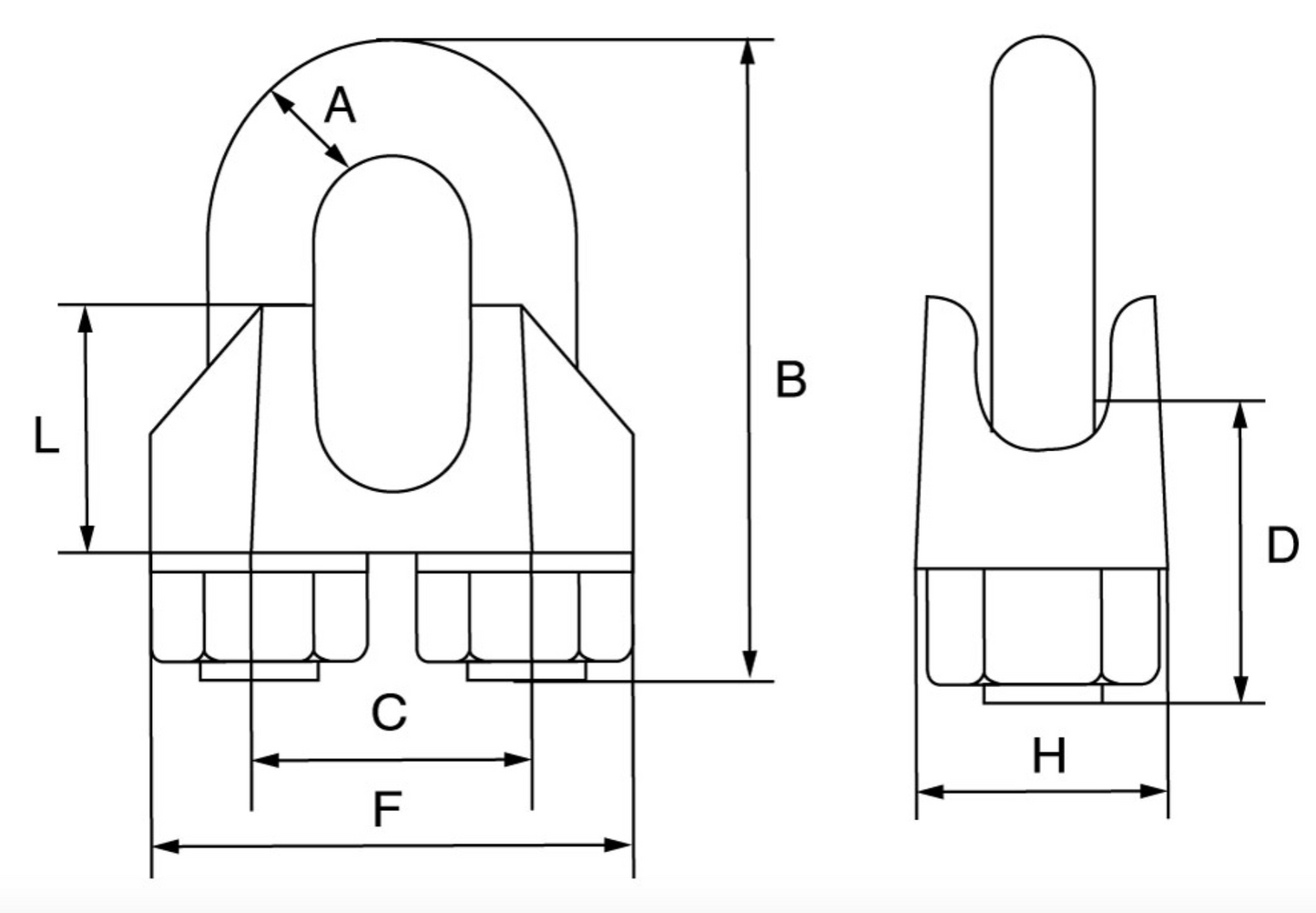

Spec

SKU	Rope Dia	A	B	C	D	F	H	L	Weight
	mm	mm	mm	mm	mm	mm	mm	mm	kgs/100
286-800-1	5	5	25	12	13	25	13	13	2.1
286-800-2	6.5	6	32	14	17	30	16	14	4
286-800-3	8	8	41	18	20	39	20	18	8.2
286-800-4	10	8	46	20	24	40	20	21	9.2
286-800-5	12	10	56	24	28	50	24	25	25
286-800-6	13	12	64	27	30	55	28	29	27.5
286-800-7	14	12	66	28	31	59	28	30	35
286-800-8	16	14	76	32	35	64	32	35	43
286-800-9	19	14	83	36	36	68	32	40	49
286-800-10	22	16	96	40	40	74	34	44	68
286-800-11	26	20	111	46	50	84	38	51	117
286-800-12	30	20	127	54	55	95	41	59	140
286-800-13	34	22	141	60	60	105	45	67	213
286-800-14	40	24	159	68	65	117	49	77	268
