Etter (WEBI) Pulleys

Polymide Pulley with Galvanised Bracket Type ETT-156P : 30-90kg

Polymide Pulley with Galvanised Bracket Type ETT-156P : 30-90kg

€10,80 EUR
€10,80 EUR
Sale Sold out
Taxes included.
Choose by Max Capacity - Pulley Dia and Max Rope Dia Below :

WEBI Pulley Type ETT-156P - Polymide (Nylon) Pulley with Galv Bracket (ETTER) - Ref: 155-11



  • WEBI Polyamide (Nylon) pulley with plain bearing and galvanised bracket Type ETT-156P
  • Capacities from 30kg -to 90kg
  • 5 models, to suit 8mm - 12mm wire rope (see specification PDF for full details)
  • Mounting hole diameter = 5mm
  • For use with diversion of rope is required in winching applications
  • SWISS MADE "ETTER"
  • Five model types available from stock
  • Suitable for applications in offshore, gas & oil, utliities, water treatment works

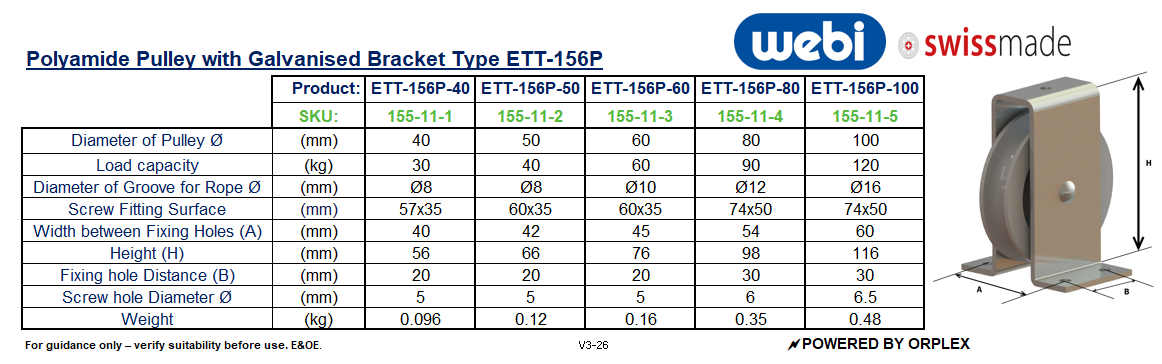

 Spec

Model Capacity Pulley Diameter Rope Diameter Weight
155-11-1 30 kg 40 mm 8 mm 0.09kg
155-11-2 40 kg 50 mm 8 mm 0.12kg
155-11-3 60kg 60 mm 10 mm 0.12kg
155-11-4 90kg 80mm 12 mm 0.35kg
155-11-5 TBC 100mm TBC TBC



Downloads

pulleyPulley Cat 2018

pulleyEtter 156P Pulley Data Sheet
