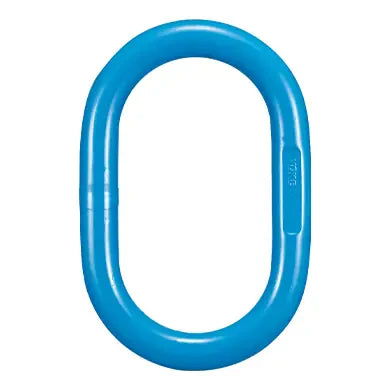

YOKE Grade 100 Master Link to suit 2-Leg Chain Slings

YOKE SKU: 276-54-21

1 2

YOKE Grade 100 Master Link to suit 2-Leg Chain Slings

YOKE Grade 100 Welded Master Link to suit 2-Leg Chain Slings Quenched and Tempered Alloy Steel At least 25% greater WLL than traditional Grade 80 products Manufactured... Read More

YOKE SKU: 276-54-21

€11,51

RRP TODAY'S PRICE €11,51

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

YOKE Grade 100 Welded Master Link to suit 2-Leg Chain Slings

Quenched and Tempered Alloy Steel
At least 25% greater WLL than traditional Grade 80 products
Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184
Certified by DGUV GS-OA-15-05
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
Design Factor 5:1
Fatigue rated to 20,000 cycles at 1.5 times the WLL
Tempering temperature at a minimum of 400°C
Welded Master Link designed for 1-2 legs Chain, Wire Rope and Webbing Slings

to suit 1-Leg Chain Sling - 276-54-1 / 12
to suit 2-Leg Chain Sling - 276-54-21 / 32

Each link is marked with batch number that links to the test certificate with full traceability to raw materials

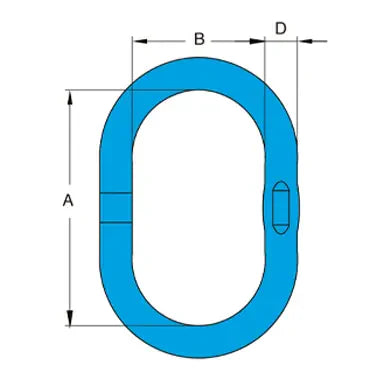

Spec

SKU	For Grade 100 Chain (mm)	Capacity (t)	Proof Load (kN)	Weight (kg)
276-54-21	6	2.8	69	0.5
276-54-22	7 , 8	4	98	0.8
276-54-23	10	6.7	164	1.2
276-54-24	10	8.9	208	1.7
276-54-25	13	11.5	282	2.5
276-54-26	13	13	319	4
276-54-27	16	17.1	417	5.2
276-54-28	20	24	588	7
276-54-29	22	28.1	688	9
276-54-30	26	38.3	938	12.9
276-54-31	26	45	1103	16.7
276-54-32	26	45	1103	16.7
