YOKE Grade 100 Eye Self Locking Hook

YOKE SKU: 276-57-1

1 2

YOKE X025 Grade 100 Eye Self Locking Hook Quenched and Tempered Alloy Steel At least 25% greater WLL than traditional G80 products Manufactured in accordance with EN 1677- 3... Read More

€40,65

RRP TODAY'S PRICE €40,65

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

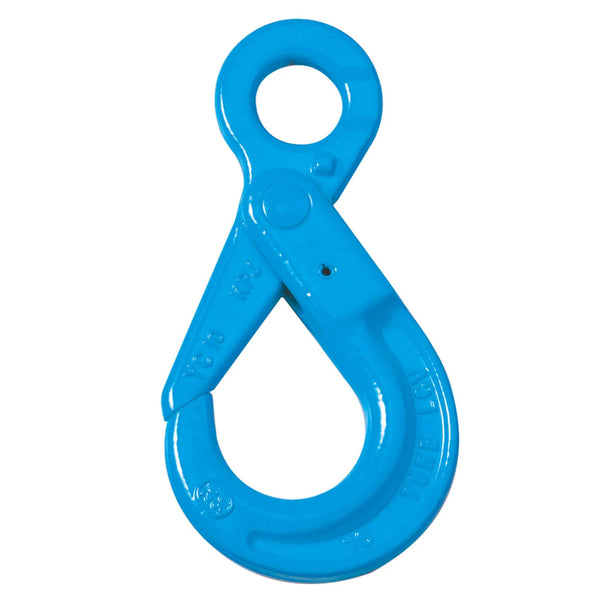

YOKE X025 Grade 100 Eye Self Locking Hook

Quenched and Tempered Alloy Steel
At least 25% greater WLL than traditional G80 products
Manufactured in accordance with EN 1677- 3 and ASME B30.26, ASME B30.10
Certified by DGUV GS-OA-15-05
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
Design Factor 4:1
Fatigue rated to 20,000 cycles at 1.5 times the WLL
Tempering temperature minimum 400°C
Magnaflux crack detection is performed 100% on each batch

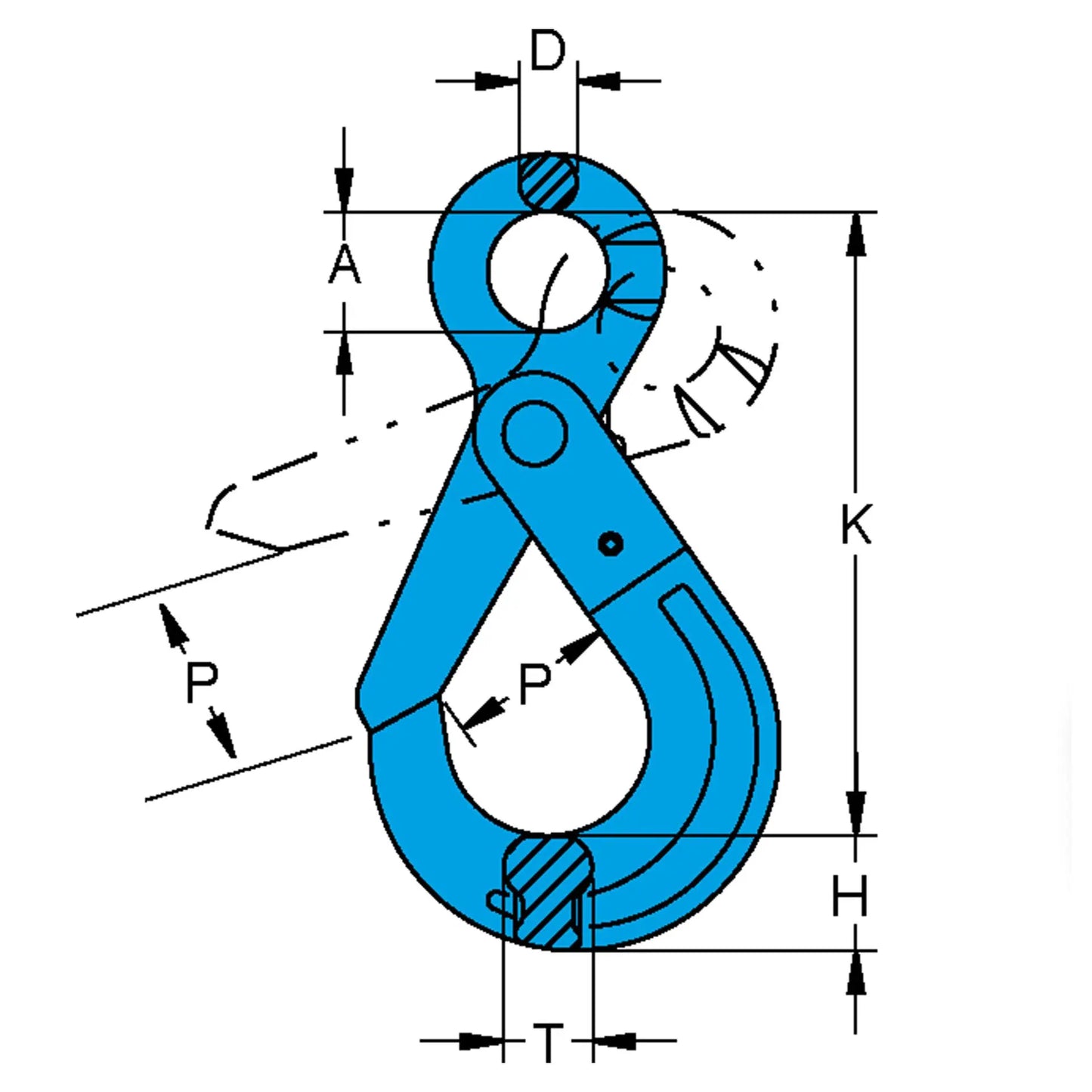

Specification

SKU	Capacity (t)	For Grade 100 Chain (mm)	Weight (kg)
276-57-1	2.5	7, 8	0.9
276-57-2	4	10	1.58
276-57-3	6.7	13	3.25
276-57-4	10	16	6
276-57-5	16	22	10.5
276-57-6	19	26	13.25
276-57-7	26.5	32	16
