YOKE Grade 100 Clevis Grab Hook

YOKE SKU: 276-60-1

1 3

YOKE Grade 100 Clevis Grab Hook

YOKE Grade 100 Eye Grab Hook Quenched and Tempered Alloy Steel At least 25% greater WLL than traditional G80 products Manufactured in accordance with DIN PAS 1061,... Read More

YOKE SKU: 276-60-1

€17,32

RRP TODAY'S PRICE €17,32

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

YOKE Grade 100 Eye Grab Hook

Quenched and Tempered Alloy Steel
At least 25% greater WLL than traditional G80 products
Manufactured in accordance with DIN PAS 1061, EN 1677-1 and ASTM A952/A 952M
Certified by DGUV GS-OA-15-05
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
Design Factor 4:1
Fatigue rated to 20,000 cycles at 1.5 times the WLL
Tempering temperature minimum 400°C
Not for use with Omega Link
Enables full WLL while in use, thanks to supporting wings which prevent chain link deformation

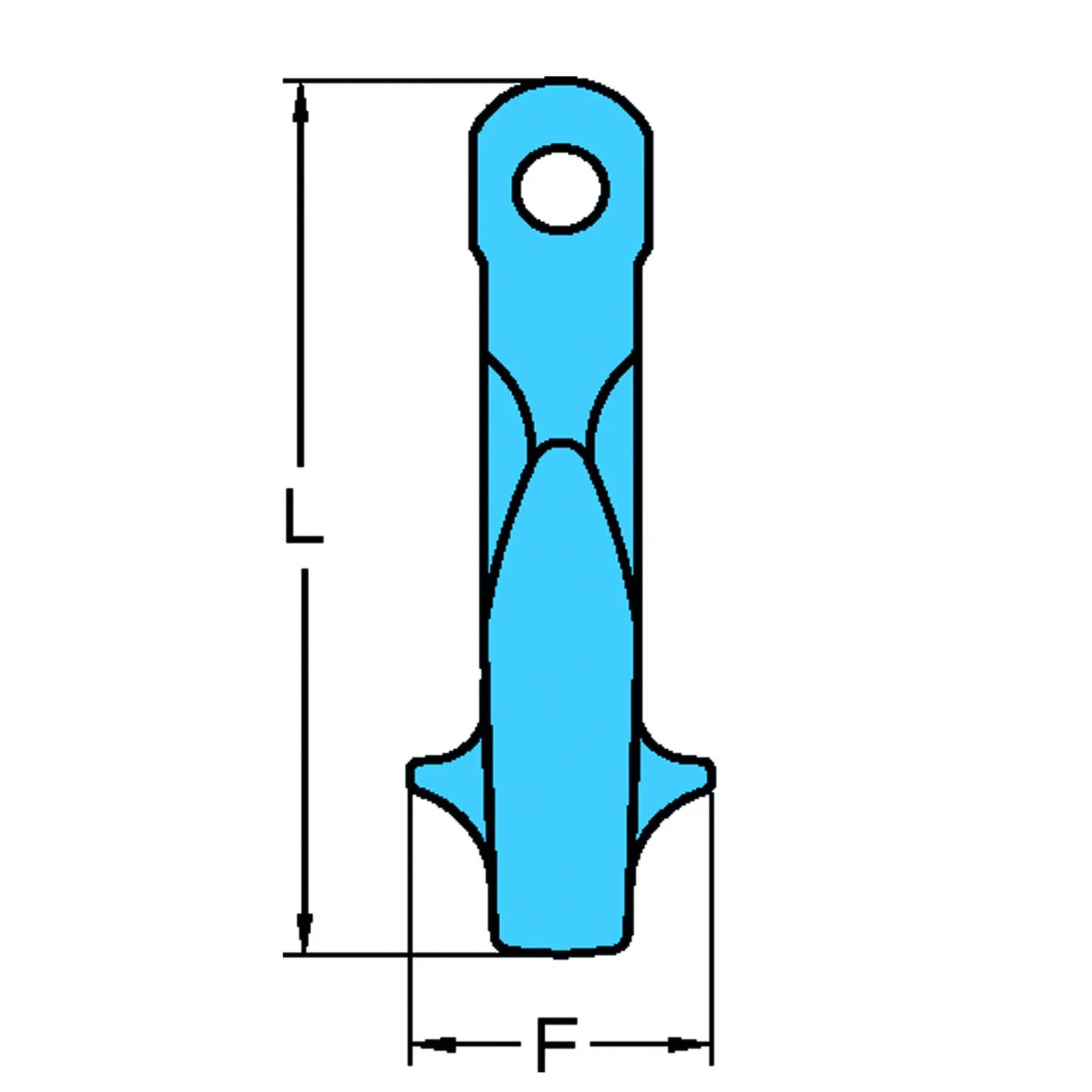

Spec

SKU	Capacity (t)	For Grade 100 Chain (mm)	Weight (kg)
276-60-1	2.5	6	0.4
276-60-2	4	7, 8	0.8
276-60-3	6.7	10	1.6
276-60-4	10	13	2.7
276-60-5	16	16	4.8
276-60-6	19	20	6.4
