Description
Description
YOKE G80 Insulated Blank Swivel
- Design factor 4:1 proof tested and certified
- With ball bearing
- Individually tested to resist 1000 Volts insulated with Test Certificate
- Designed for the protection of overhead cranes during welding operations on suspended loads
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.

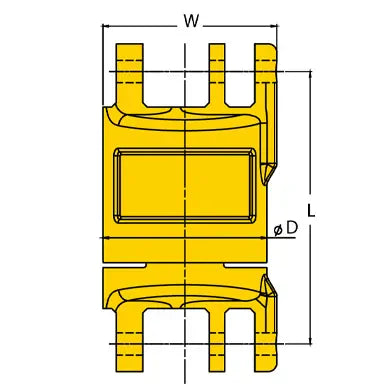

Spec
| SKU | Capacity (t) | For Grade 80 Chain (mm) | Weight (kg) |
| 276-11-1 | 2 | 7, 8 | 0.7 |
| 276-11-2 | 3.15 | 10 | 1.3 |
| 276-11-3 | 5.3 | 13 | 2.7 |
| 276-11-4 | 8 | 16 | 4.7 |
| 276-11-5 | 12.5 | 18, 20 | 7 |
