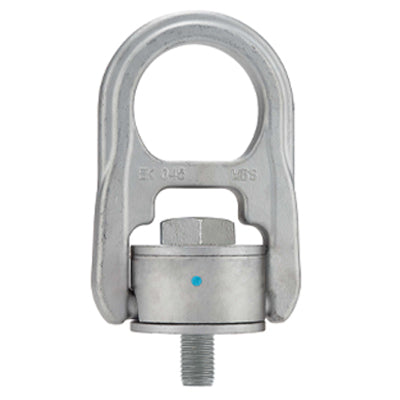

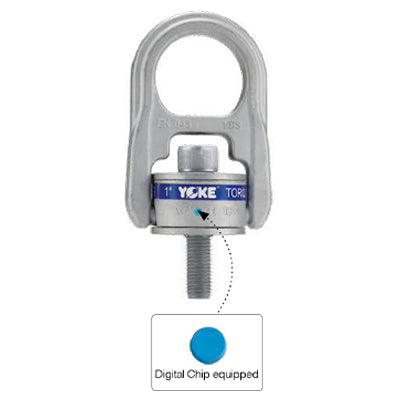

YOKE Digital Hoist Ring - UNC Thread

YOKE SKU: 276-9-1

1 3

YOKE Digital Hoist Ring - UNC Thread

YOKE Digital Hoist Ring - UNC Thread Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction Manufactured from forged alloy steel, quenched and tempered... Read More

YOKE SKU: 276-9-1

€66,54

RRP TODAY'S PRICE €66,54

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

YOKE Digital Hoist Ring - UNC Thread

Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction
Manufactured from forged alloy steel, quenched and tempered
Manufactured and tested in accordance with EN1677-1
Load rated parts are 100% magnaflux crack detected
Individual forged parts and cap screw are traceable to Test Certification
Bolts are UNC thread
Proof tested to 2.5 times the WLL
Fatigue rated to 20,000 cycles at 1.5 times the WLL
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
Quick and simple assembly, just a tapped hole is required

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.

Spec

SKU	Capacity (t)	Bolt Size (inch)	Torque (lbs)	Weight (kg)
276-9-1	0.4	5/16"	7	0.41
276-9-2	0.5	3/8"	12	0.41
276-9-3	1.25	1/2"	28	1.67
276-9-4	2	5/8"	60	1.8
276-9-5	2.5	3/4"	100	1.8
276-9-6	3.5	3/4"	100	3.96
276-9-7	4	7/8"	160	4.19
276-9-8	5	1"	160	4.28
276-9-9	7.5	1 1/4"	470	6.53
276-9-10	12	1 1/4"	800	15.84
276-9-11	15	2"	1100	15.84
