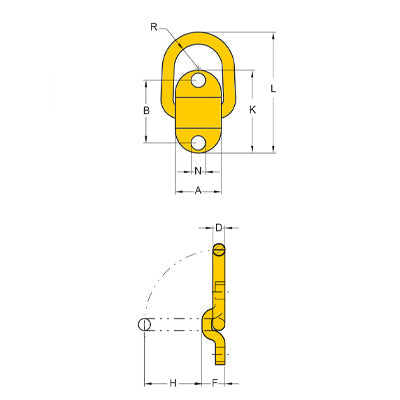

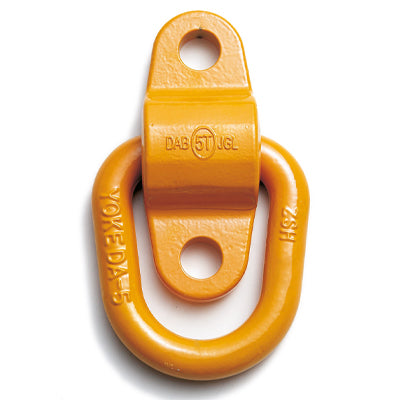

YOKE Bolt-On Tie Down

• Pivots through 180° and allows side load lifting
• Manufactured from forged alloy steel, quenched and tempered
• Manufactured and tested in accordance with EN1677-1
• Load rated parts are 100% magnaflux crack detected
• Individual forged parts are traceable to Test Certification
• Supplied without bolts; usage of Grade 10.9 or Grade 12.9 bolts is recommended
• Proof tested to 2.5 times the WLL
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
