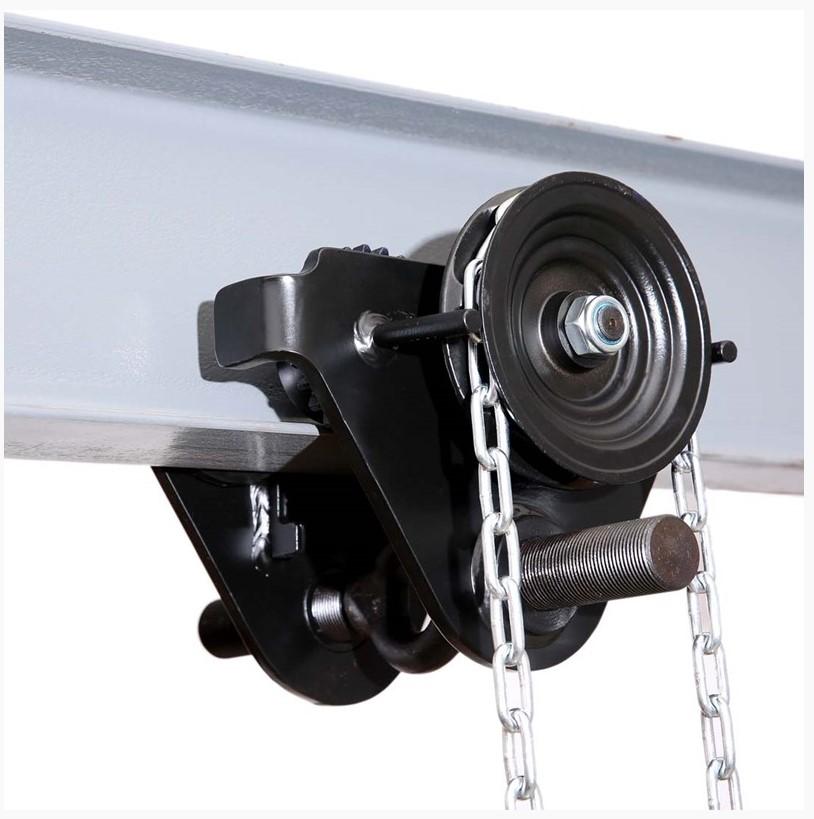

Tiger SGT Screw Bar Geared Trolley

SKU: 245-1-1

SKU: 245-1-1

€117,82

RRP TODAY'S PRICE €117,82

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

Versatile all-purpose geared travel trolley for use with any hook suspended hoist
Load Capacity: Range from 0.5t to 5.0t
Smooth Operation: Wheels run on sealed bearings for smoother rolling with less effort and maintenance
Geared Type: Comes with a hand chain length tailored to your requirements
Safety Factor: 4:1 factor of safety allows for use with manual or powered hoists
Safety Features: Anti-drop plates design ensures extra safety and prevents damage to the wheels when contacting end rail stoppers

Specification

SKU	CAPACITY (TONNE)	D - TRACK WIDTH		DIMENSIONS (MM)									MIN. CURVE RATIO (M)	NET WEIGHT (KG)	TECHNICAL DRAWING
SKU	CAPACITY (TONNE)	RANGE 1 (MM)	RANGE 2 (MM)	A	B	C	E	F	G	H	J	K	MIN. CURVE RATIO (M)	NET WEIGHT (KG)	TECHNICAL DRAWING
245-1-1	0.5	50-220		300	210	190	33	3				25	TBA	9.0
245-1-2	1.0	64-220		300	260	211	31	3				30	1.0	13.0
245-1-3	2.0	88-220		310	310	236	32	3				40	1.1	20.5
245-1-4	3.0	102-220		320	390	295	46	3				48	1.3	30.0
245-1-5	5.0	114-220		330	450	334	47	3				60	1.4	45.0
