Tiger Rated Offset Steel Scaffold Hook with Captive Pin / Twist Lock

Name: Tiger Rated Offset Steel Scaffold Hook with Captive Pin / Twist Lock
Brand: Tiger Products
SKU: 224-1-21
Price: 40.95 EUR
Availability: OutOfStock

Tiger Products SKU: 224-1-21

1 3

Tiger Rated Offset Steel Scaffold Hook with Captive Pin / Twist Lock Quick and versatile rigging point for personal fall protection equipment These units meet the requirements within EN 362:2004/B Minimum breaking strength 50kN... Read More

€40,95

RRP ~~€0,00~~ TODAY'S PRICE €40,95

Out of stock (0)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

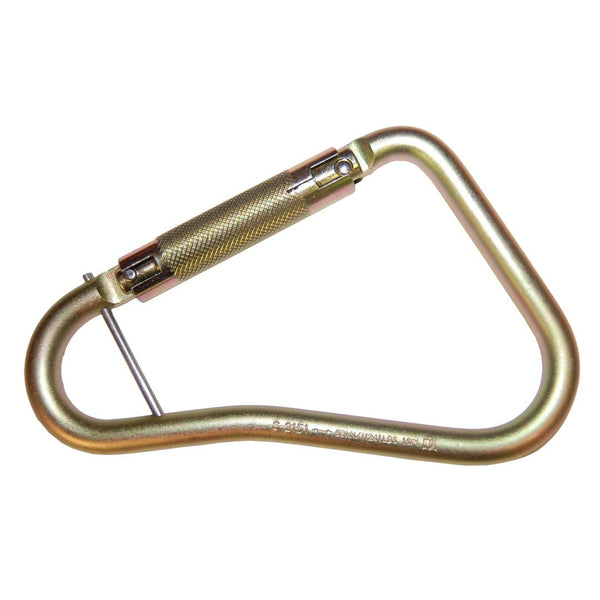

Tiger Rated Offset Steel Scaffold Hook with Captive Pin / Twist Lock

Quick and versatile rigging point for personal fall protection equipment

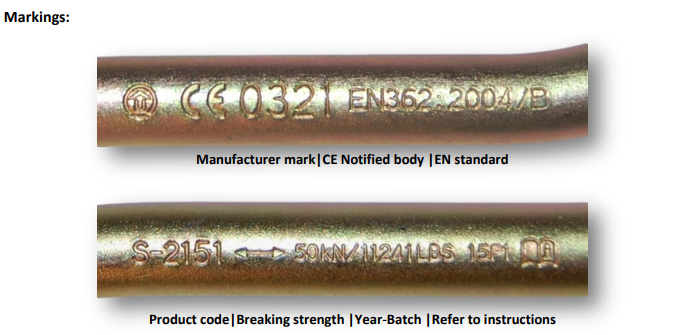

These units meet the requirements within EN 362:2004/B
Minimum breaking strength 50kN / 11240lb
High tensile steel
CE Certified - CE 0321
Scaffold hooks are provided with captive pins to prevent rotation during use

Specification

Product Code	Description	Minimum Breaking Strength	Dimensions (mm)			Weight (g)
			A	B	C
224-1-21	Offset Steel 'Scaffold' Hook with Captive Pin/Twist Lock	50kN / 11240lb	142	222	56	723

Tiger Rated Steel Scaffold Hook with Captive Pin / Twist Lock

Downloads

Tiger Rated Offset Steel Scaffold Hook with Captive Pin / Twsit lock from riggingUK

Product data sheet

Legislation

Certification:

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. Each unit is also supplied with Manufacturer’s Instructions for Use.

Recommendation:

We advise that structural calculations are carried out on all beams and supporting steel work by qualified engineering departments to ensure safe operation.
