TIGER RAIL CLAMP - CRT

Tiger Products SKU: 240-4-1

1 3

TIGER RAIL CLAMP - CRT Ref: 240-4 The Tiger rail clamp has been designed to facilitate the lifting of single rail sections safely and securely and is designed to fit most types of rail... Read More

€901,05

RRP ~~€901,05~~ TODAY'S PRICE €901,05

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

TIGER RAIL CLAMP - CRT Ref: 240-4

The Tiger rail clamp has been designed to facilitate the lifting of single rail sections safely and securely and is designed to fit most types of rail section sizes currently in use.

Each clamp is is marked with jaw width, working load limit, serial number and year of manufacture.
Narrow profile to enable attachment to an individual rail that is stacked side by side with other rails.
No tools required.
The clamp is locked onto the rail-head via a lever operated spring mechanism.
4:1 factor of safety.

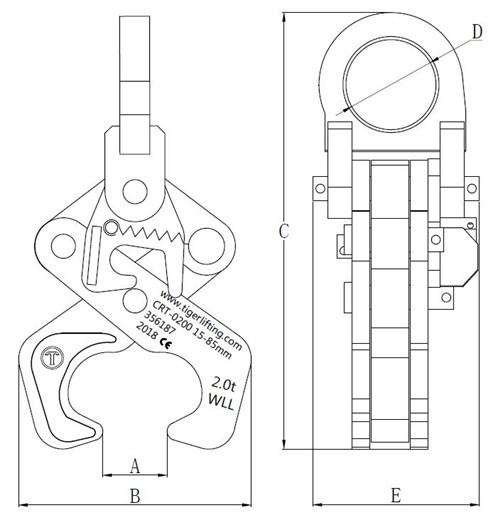

Product Code

Capacity (tonne)

Dimensions (mm)

Net Weight (kg)

Jaw Opening A (mm)

B Max

(mm)

C Max

(mm)

D

(mm)

E

(mm)

240-4-1

2.0t

15-85

170

302

60

111

6.2

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
