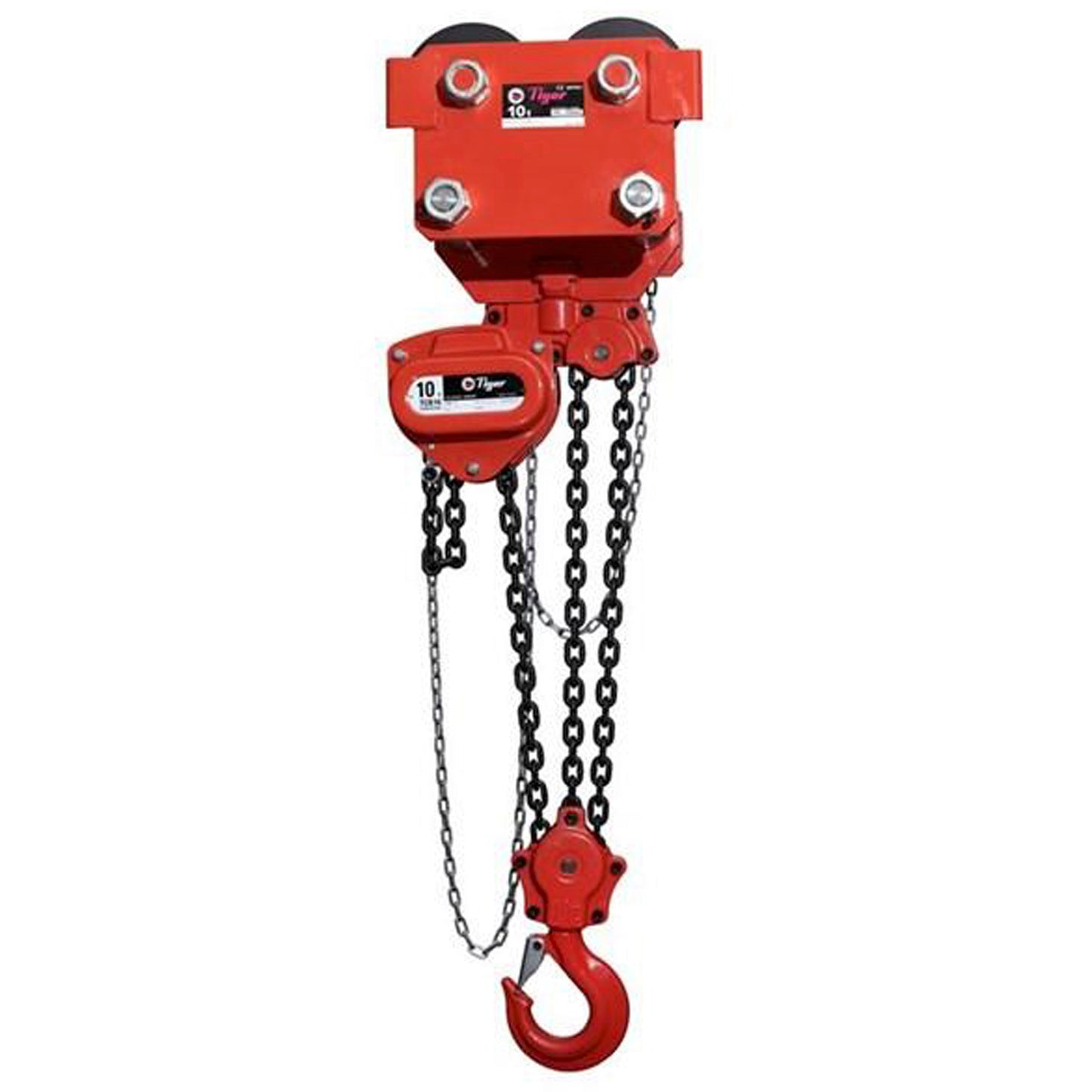

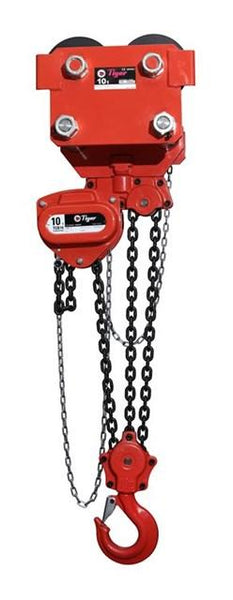

TIGER COMBINED CHAIN BLOCK & PUSH TRAVEL TROLLEY MODEL CCBTP, 2.0t CAPACITY, BEAM WIDTH 112-154mm

• 2.0t SWL Capacity, to suit a beam width of 112-154mm (ref 230-3)
• The CCBTP range is from 0.5t to 30.0t safe working load
• Twin bar or single bar trolley options possible
• The unit can be chained to any height of lift to meet your exact requirements

• Ideal for locations where headroom is limited
• Extended beam width available
• Chain carrier available

• Geared and plain trolley versions available
• Operating temperature of -30°C to +50°C (temperature range of -50°C to +50°C available as an option)
• Corrosion or Spark Resistant versions also available

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.

SINGLE BAR PLAIN COMBINATION UNITS

PRODUCT CODE	CAPACITY (TONNE)	D - TRACK WIDTH		DIMENSIONS (MM)				MIN. CURVE RATIO (M)	NET WEIGHT (KG)
		RANGE 1 (MM)	RANGE 2 (MM)	A	B	C	H
CCBTPS-0050	0.5	80-128	80-203	195	106	106	310	0.8	16.0
CCBTPS-0100	1.0	80-128	80-203	213	113	113	350	1.0	19.5
CCBTPS-0200	2.0	112-154	112-230	236	136	136	450	1.3	33.0
CCBTPS-0300	3.0	111-153	111-230	281	146	146	530	1.5	48.5

TWIN BAR PLAIN COMBINATION UNITS

PRODUCT CODE	CAPACITY (TONNE)	D - TRACK WIDTH		DIMENSIONS (MM)				MIN. CURVE RATIO (M)	NET WEIGHT (KG)
		RANGE 1 (MM)	RANGE 2 (MM)	A	B	C	H
CCBTPT-030T	3.0	105-153	105-230	320	142	142	435	1.5	45.5
CCBTPT-0500	5.0	126-194	126-305	352	167	166	545	1.5	69.0
CCBTPT-1000	10.0	125-320	N/A	460	255	255	730	2.7	185.0

Download - Technical-sheet-Combi-202409_eee1d0e2-f260-4e6a-b96a-9aa318a42884.pdf
