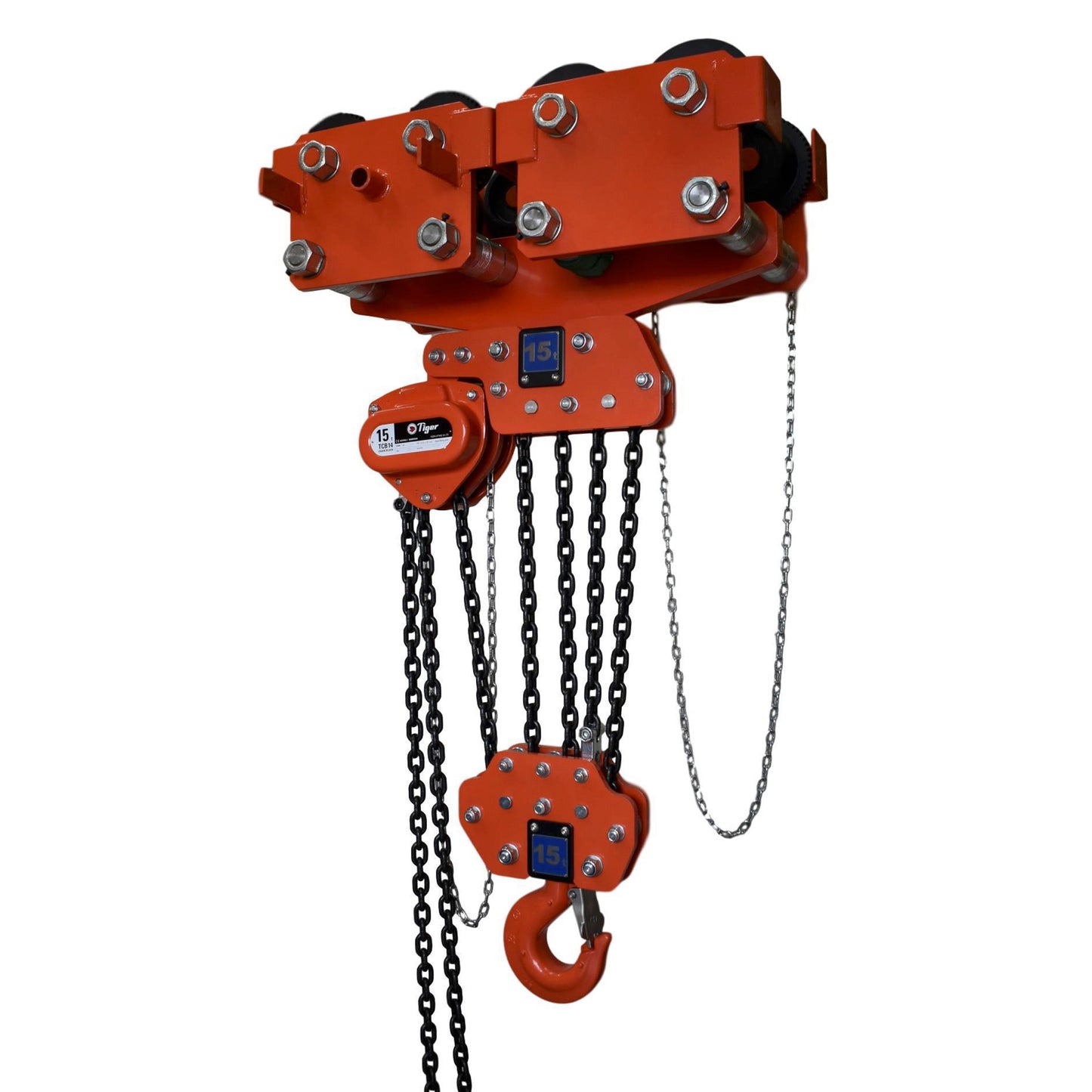

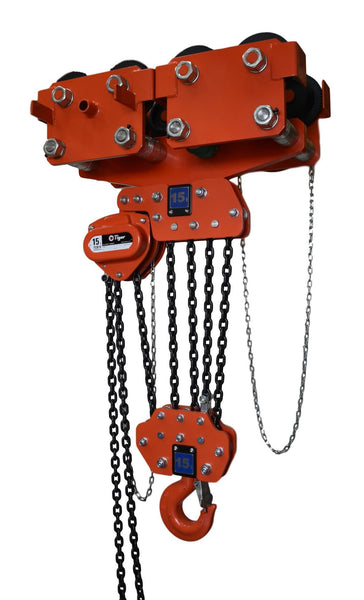

TIGER COMBINED CHAIN BLOCK & GEARED TRAVEL TROLLEY MODEL CCBTGS, 2.0t CAPACITY BW 112-154mm

• 2.0t SWL Capacity, to suit a beam width range of 112-154mm with a plain powder coated finish
• The CCBTGS geared trolley range is from 0.5t to 30.0t safe working load
• Twin bar or single bar trolley options possible
• The unit can be chained to any height of lift to meet your exact requirements

• Ideal for locations where headroom is limited
• Extended beam width available
• Tiger trolley wheels are specially designed with a convex profile eliminating potential point loading
• The wheels run on sealed bearings for smoother rolling with less effort and maintenance
• The anti-drop plates design ensures extra safety, and also prevents damage to the wheels when contacting end rail stoppers
• Chain carrier available

• Geared and plain trolley versions available
• The 5:1 factor of safety allows for use with manual or powered hoists
• Operating temperature of -30°C to +50°C (temperature range of -50°C to +50°C available as an option)
• Corrosion or Spark Resistant versions also available

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with our sales team when ordering.

Download - Tiger_Combined_Chain_Block_and_Geared_Travel_Trolley_D-Track_Widths_and_Dimensions_891da642-5b4b-44e5-86fe-09aae3861ab3.pdf
Download - Technical-sheet-Combi-202409.pdf
