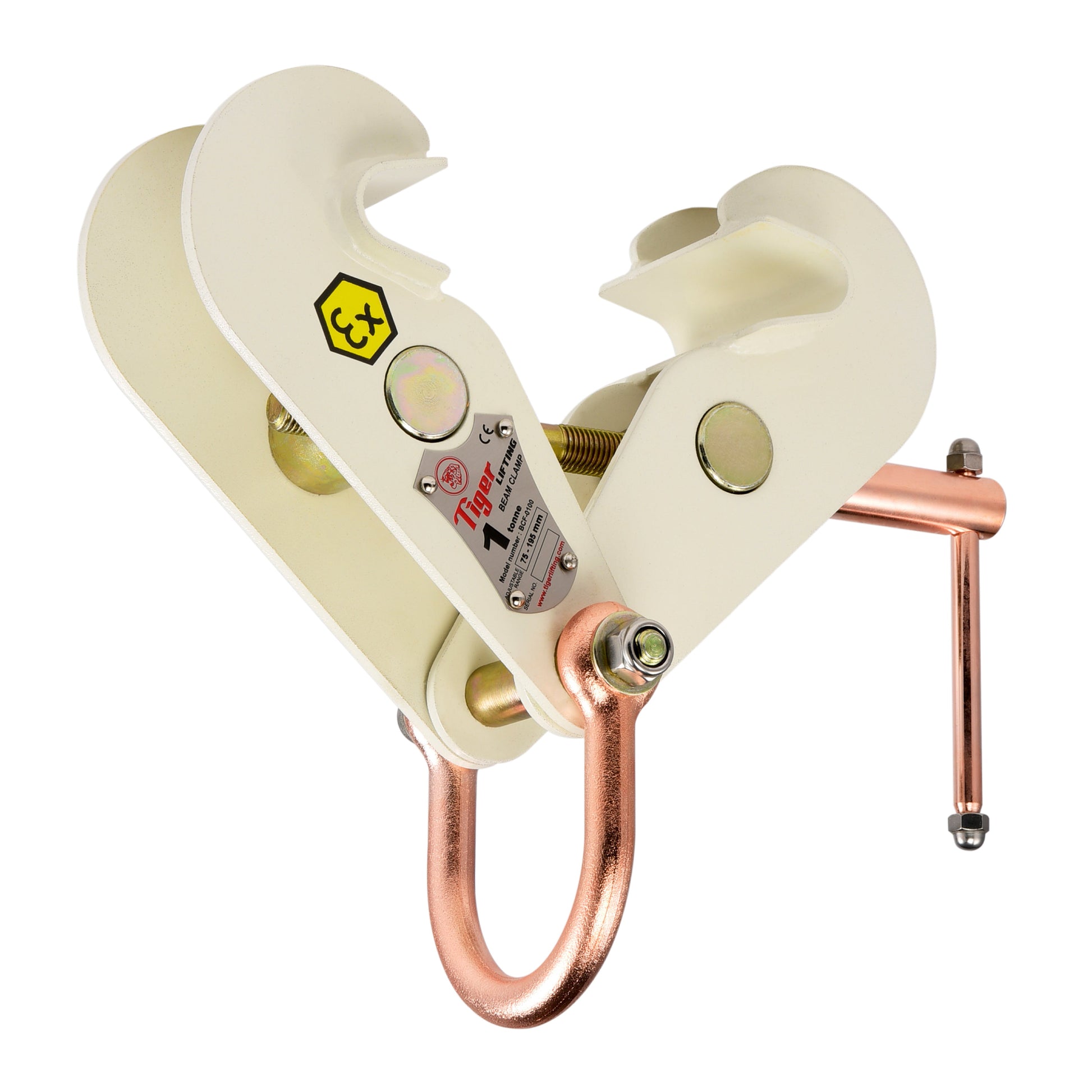

TIGER ATEX SPARK RESISTANT HEAVY DUTY BEAM CLAMP TYPE XBF

*** Up to 90° side loading with no deration ***

In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones. Tiger Spark Resistant products are manufactured in accordance with ATEX Directive 94/9/EC and the Machinery Directive 2006/42/EC. Our products are lightweight and durable with a proven track record. Atex marking: Ex II 2 GD c IIC T4 IIIC T135°C. Suitable for gas and dust hazardous areas: Zone 1 & 2 (gas) and Zone 21 & 22 (dust).

• Category II – high safety - Certification: Ex II 2 GD c IIC T4 IIIC T135°C
• Special coated units

• Manufactured in accordance with ATEX Directive 94/9/EC and Machinery Directive 2006/42/EC
• Copper plated suspension shackle and adjusting bar

• Developed for the use in potentially explosive atmospheres (ATEX zones)
• Beam locking device

These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991.

Certification: Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
