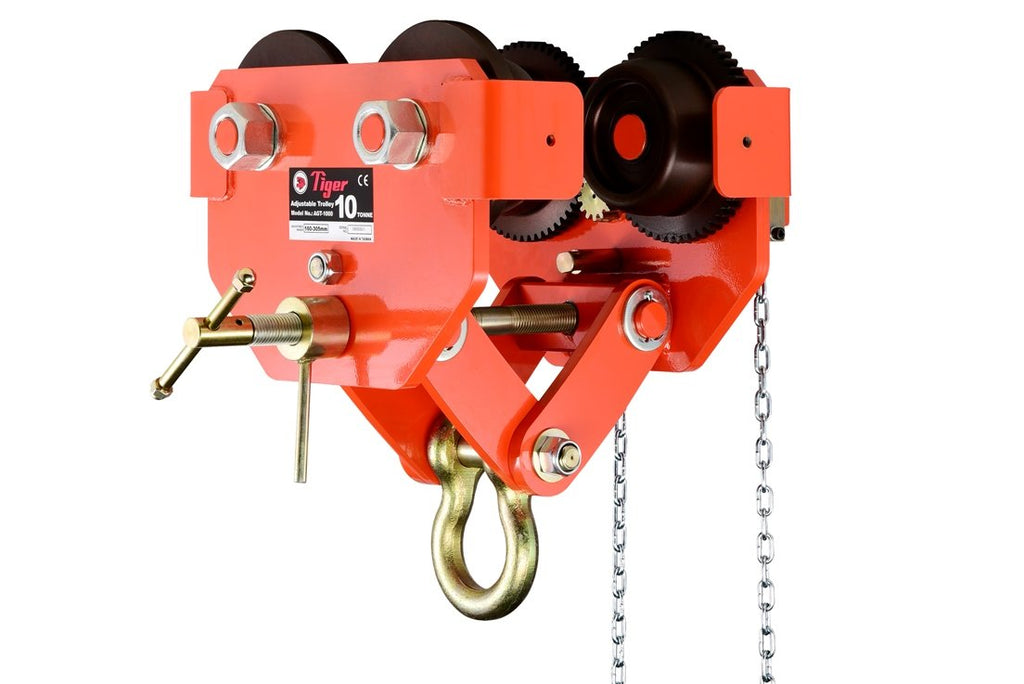

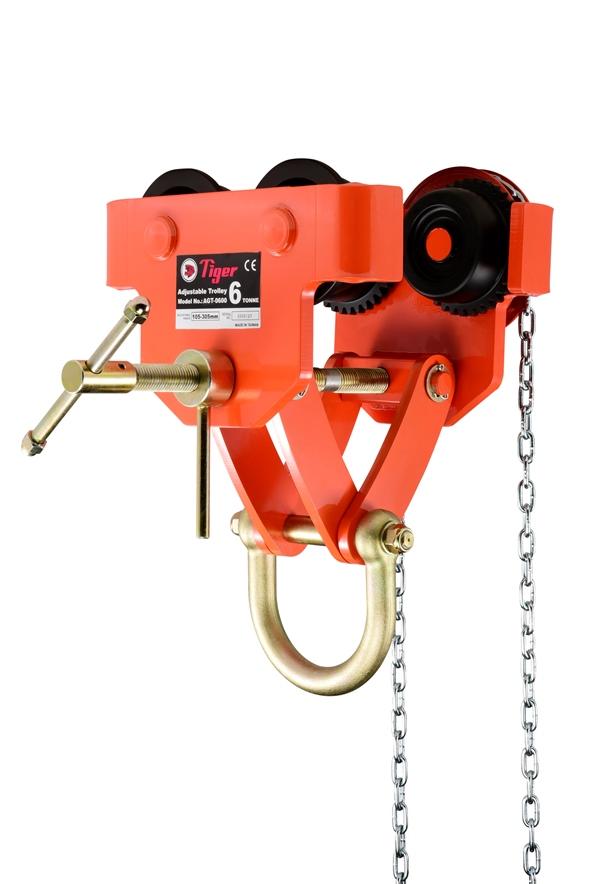

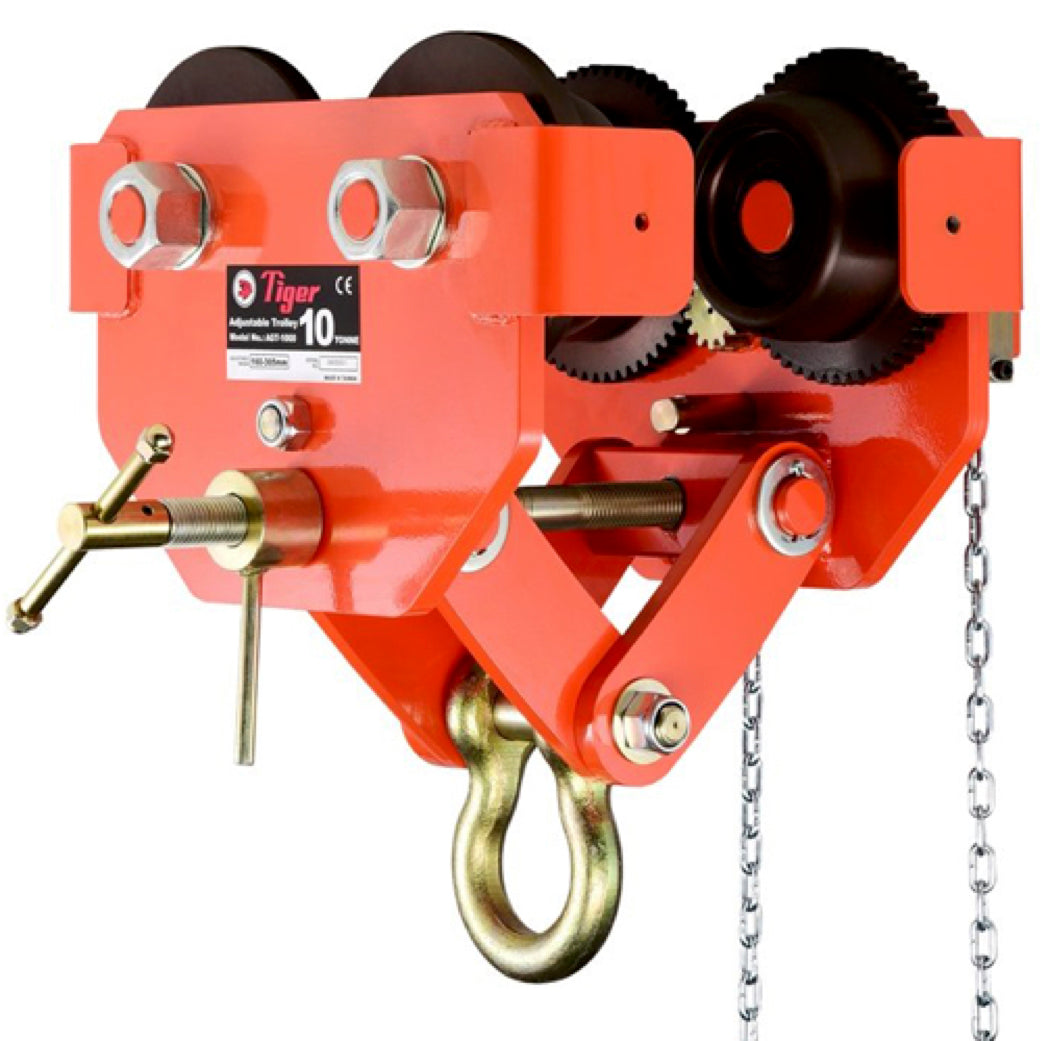

TIGER ADJUSTABLE GEARED TROLLEY TYPE AGT (with lockable adjustment to spindle bar)

A high quality, heavy-duty, easy to adjust trolleys allow you to suspend a lifting appliance or load and easily transport it along the length of a beam.

• Range from 1.0t to 10.0t.
• Fitted with a screw spindle which allows lockable adjustment to the various flange sizes within its capacity.
• The anti-drop plates design ensures extra safety, and also prevent damage to wheels when contacting end rail stoppers.
• Wheels run on sealed bearings for smoother rolling with less effort and maintenance.
• Powder coated universal wheels suit both tapered and flat flange beams
• Locking device with high clamping force.
• Designed to provide smooth and easy traversing.
• Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option).
• The 5:1 factor of safety allows for use with manual or powered hoists.

These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.

AGT - Adjustable Geared Travel Trolley

Certification: Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC

Derations to apply for using at angles away from the vertical:
