Tecpos SKU: 286-709-1
Tecpos Nut Splitter - TNS Series Capacity: 14 & 32.5 tonnes. Bolt range: 14 tonnes (M12 – M24), 32.5 tonnes (M20 – M33).... Read More
Tecpos SKU: 286-709-1
In stock
Please contact us via email for availability and delivery to Europe sales@rigging-eu.com
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

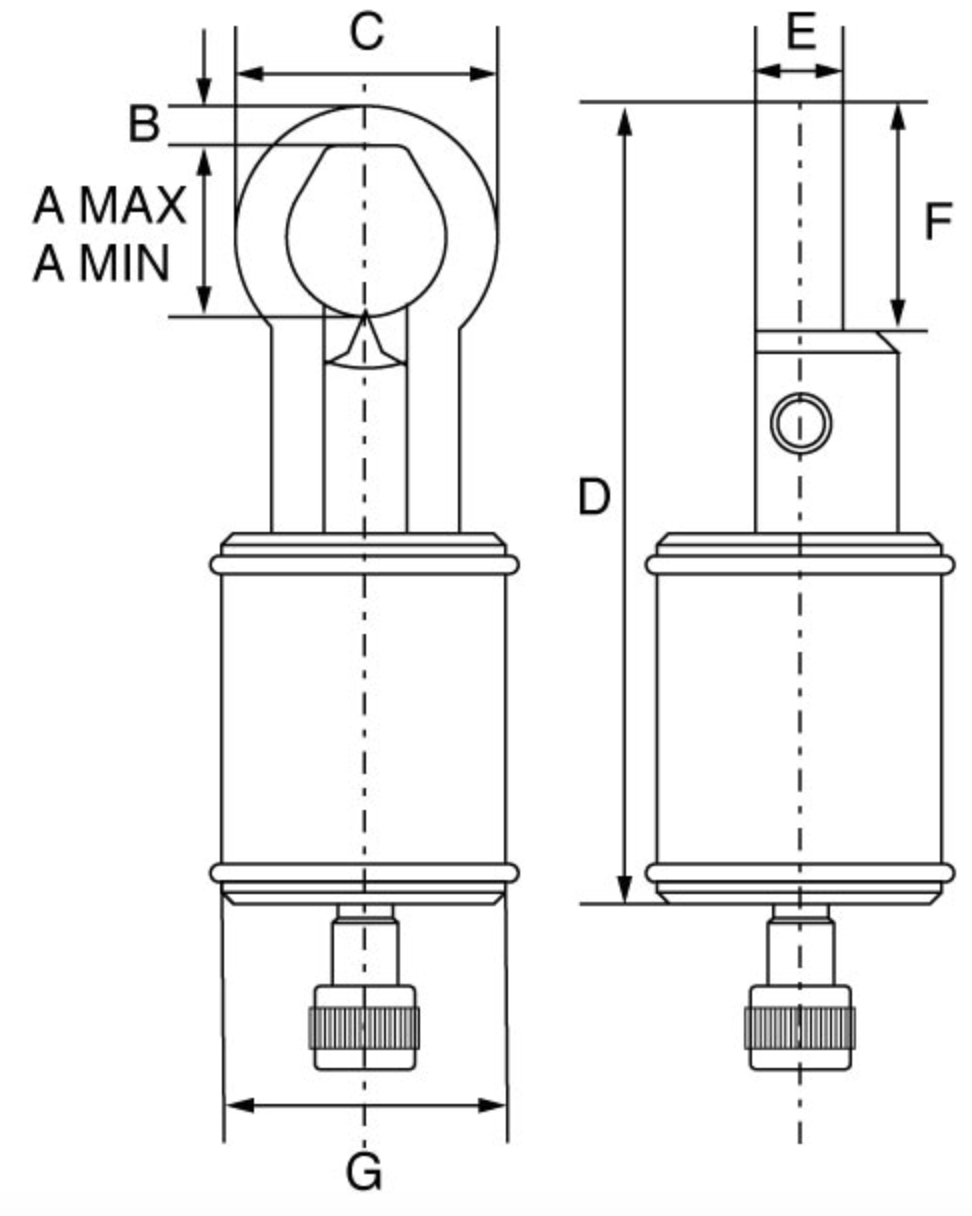

| SKU | Cylinder Capacity | Stroke | Cylinder effective | Oil Capacity | A max | A min | B | C | D | E | F | G | Weight | Pump |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| t | mm | cm(2) | cc | mm | mm | mm | mm | mm | mm | mm | mm | kgs | ||
| 286-709-1 | 14 | 15 | 41 | 26 | 45 | 15 | 12.5 | 73 | 221 | 23 | 62.5 | 78 | 5.2 | 1B or 1/3HP |
| 286-709-2 | 32.5 | 20 | / | 93 | / | / | / | / | / | / | / | / | 12 | 1B |
