GT
SKU: 286-1215-1
Read MoreIn stock (11)
If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigging-eu.co.uk
Through PayPal Credit - Find out more

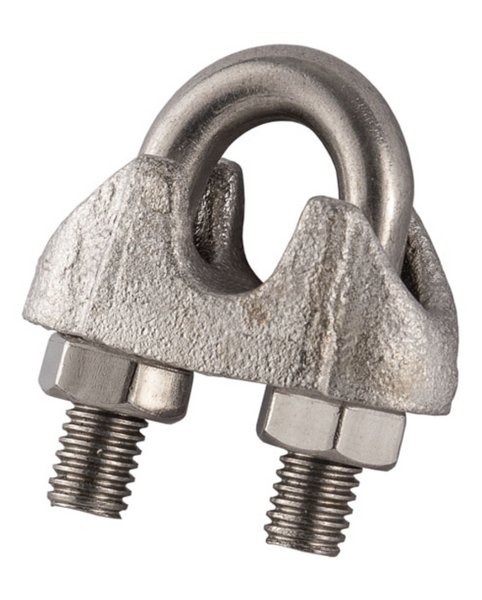

Stainless Steel Wire Rope Grip

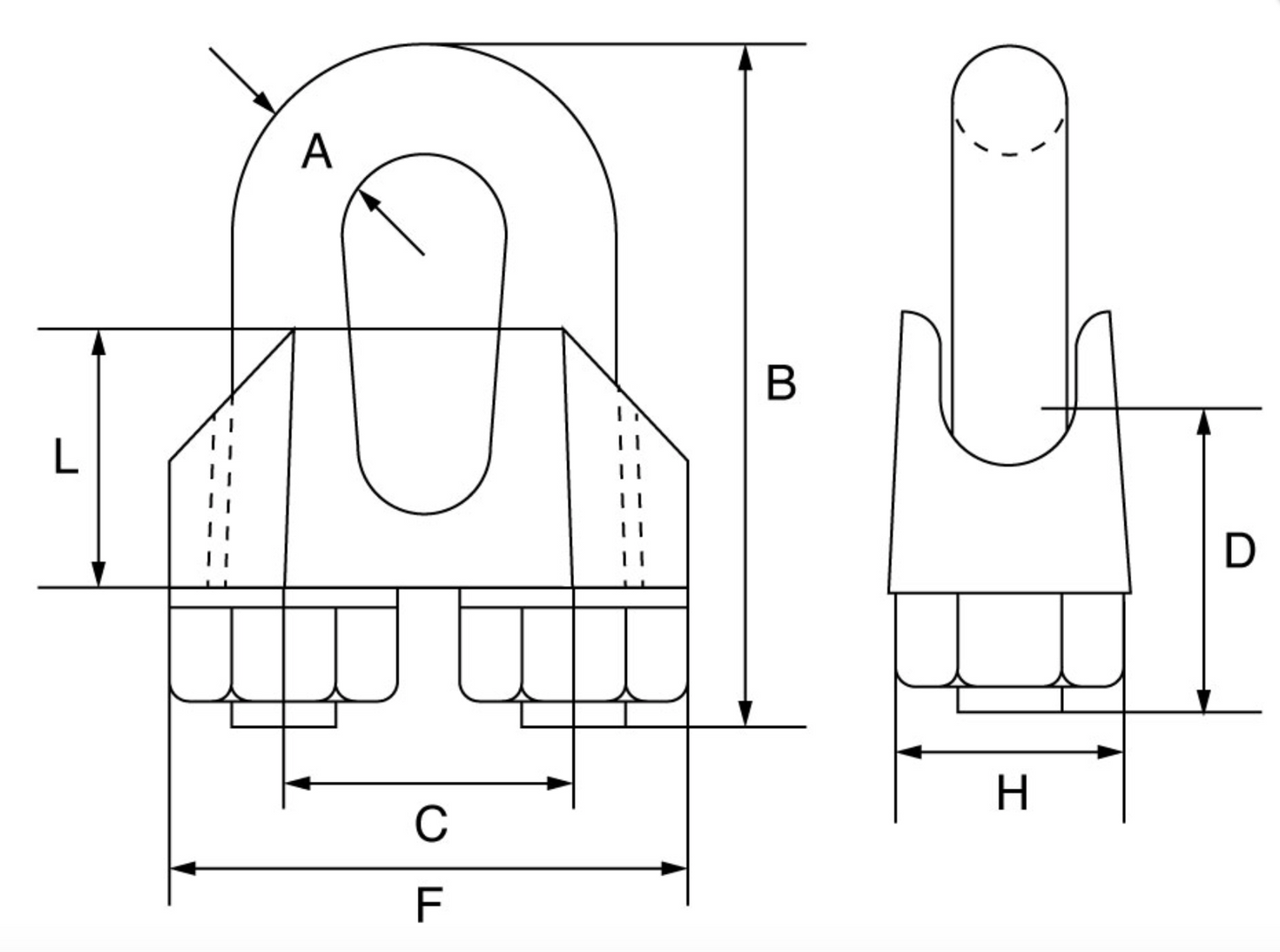

| SKU | Wire Rope Dia | A | B | C | D | F | H | L | Weight |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | kgs/100 | |
| 286-1215-1 | 3 | 4 | 20 | 9 | 12 | 21 | 10 | 10 | 1.4 |
| 286-1215-2 | 5 | 5 | 24 | 11 | 13 | 23 | 11 | 10 | 1.5 |
| 286-1215-3 | 6.5 | 5 | 28 | 13 | 15 | 26 | 12 | 11 | 2.1 |
| 286-1215-4 | 8 | 6 | 34 | 16 | 19 | 30 | 14 | 15 | 4.1 |
| 286-1215-5 | 10 | 8 | 42 | 19 | 22 | 34 | 18 | 17 | 6.8 |
| 286-1215-6 | 13 | 10 | 55 | 24 | 30 | 42 | 23 | 21 | 13 |
| 286-1215-7 | 16 | 12 | 63 | 29 | 33 | 50 | 26 | 26 | 21 |
| 286-1215-8 | 19 | 12 | 75 | 32 | 38 | 54 | 29 | 30 | 28 |
| 286-1215-9 | 22 | 14 | 85 | 37 | 44 | 61 | 33 | 34 | 40 |
