Stainless Steel Thimble - AISI 316 18mm

GT SKU: 286-1216-2

1 3

Stainless Steel Thimble AISI 316 stainless steel. Polished finish. For use with fibre and stainless steel wire ropes. Commercial quality, untested. With Certification Specification SKU Wire Rope Dia B C L Weight mm mm mm mm kgs/100 286-1216-1 2.5 14 8 21 0.2 286-1216-2 3 16 10 25 0.4 286-1216-3 4 19 11 28 0.5 286-1216- Read More

€0,50

RRP TODAY'S PRICE €0,50

In stock (5)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Stainless Steel Thimble

AISI 316 stainless steel.
Polished finish.
For use with fibre and stainless steel wire ropes.
Commercial quality, untested.

With Certification

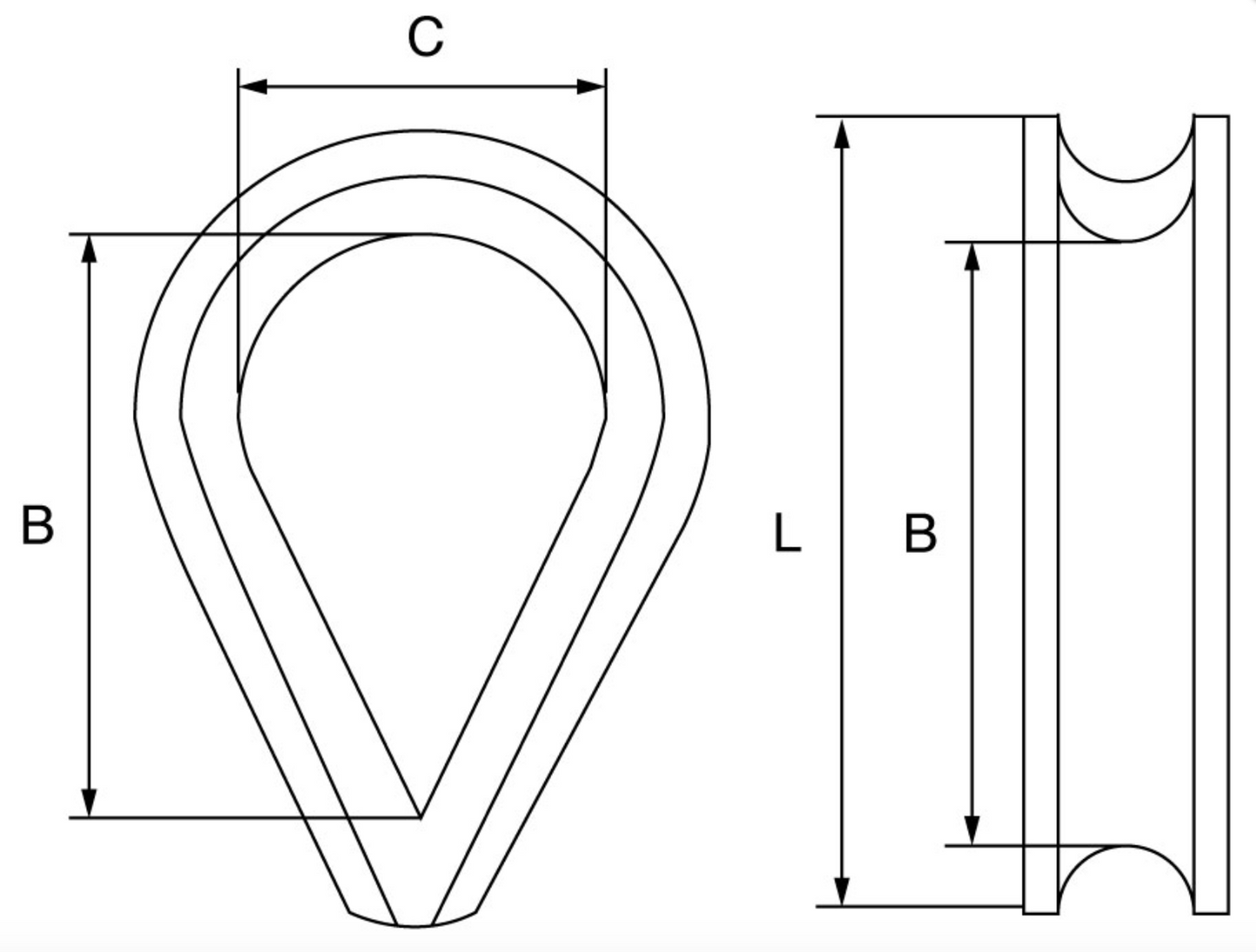

Specification

SKU	Wire Rope Dia	B	C	L	Weight
	mm	mm	mm	mm	kgs/100
286-1216-1	2.5	14	8	21	0.2
286-1216-2	3	16	10	25	0.4
286-1216-3	4	19	11	28	0.5
286-1216-4	5	23	13	32	0.7
286-1216-5	6	25	15	39	1
286-1216-6	8	32	18	49	2
286-1216-7	10	37	23	55	4.3
286-1216-8	12	44	27	70	5.2
286-1216-9	16	63	35	85	14.9
286-1216-10	18	49	40	95	16.7
286-1216-11	20	77	46	115	28.3
286-1216-12	22	88	50	125	32.7
286-1216-13	24	96	58	135	51
