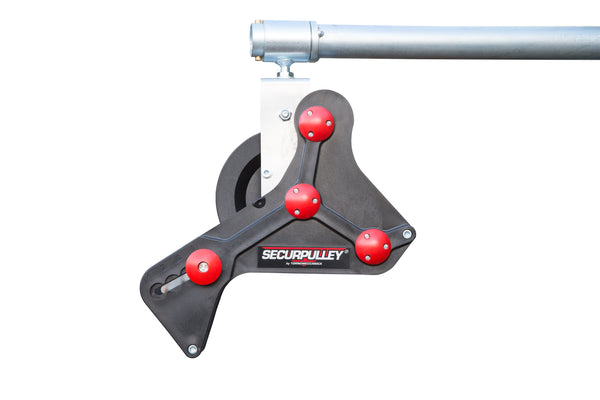

Securpulley Gin Wheel with Straight Arm Fixing Bracket and Kit Bag

This is the Securpulley Slewing Aluminium Model (Gin Wheel). It comes with the straight arm as standard. The Securpulley safety pulley is a Tornomeccanica patent intended to revolutionise the way you do your scaffolding work. This means you will also be eliminating the risk of a fall of the suspended loads.

The exclusive automatic braking system will stop the lifted load as the rope is being released by the operator.

The Securpulley is the contractors choice for lifting or lowering building materials onsite or at high working heights.

Without risk and with the possibility to interrupt the lifting for rest with heavy loads or high working heights.

The connection clamp made of hot printing and zincated steel assures maximum safety in case of emergency break of load thanks to its underforming property.

• Lifting of loads
• Lowering of loads
• Lowering of the empty rope
• Support load: 9.8Lbs
• Maximum working load: 110Lbs / 50kg
• Suitable for: Standard 48mm Scaffold Tubes.
• Minimum diameter rope used on a Securpulley has to be 18mm - anything smaller and the brake will not hold in position.

*ROPE NOT INCLUDED* (see 294-9 products for Securpulley with Polypropylene Rope included)

Link to 30m Length of Rope

Link to 60m Length of Rope
