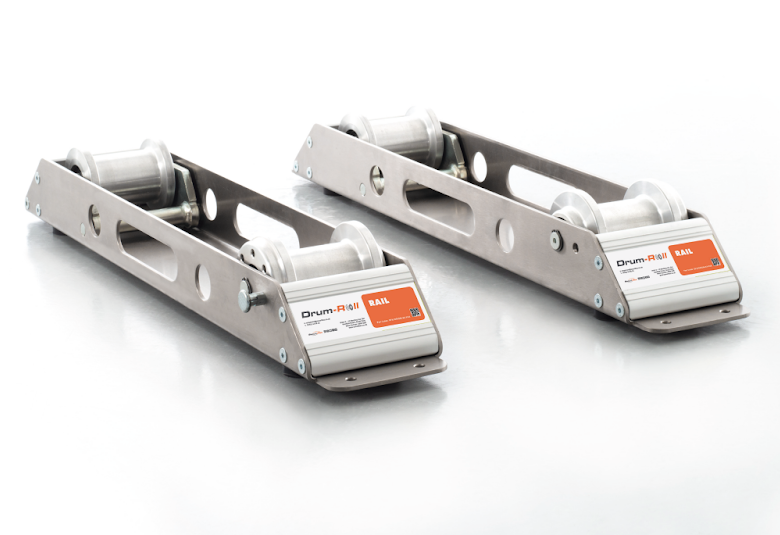

Drum-Roll RAIL Cable Drum Roller (Cable Drum Rotators)
Very light in weight - only 18kgs with a high maximum capacity of 1500kg.
For use with cable drums, 500 to 1400mm in diameter
Versatile Drum Compatibility: RAIL is compatible with cable drums ranging from 50 cm to 140 cm in diameter, accommodating a wide range of cable sizes and types.
High-Quality Supporting Rollers: Equipped with supporting rollers running on durable ball bearings, RAIL provides smooth and reliable unwinding of heavy cable products, ensuring efficient workflow.
Easy Drum Placement: The cable drums can be conveniently transported onto RAIL using a forklift, crane, or by manually rolling them onto the system.
Adjustable Swivelling Rollers: RAIL features swivelling rollers that can be easily adjusted to match the diameter of the cable drum, allowing for a secure and stable setup.
Simple Drum Removal: To remove the cable drum, the respective supporting roller can be locked in place, allowing for easy rolling of the drum out of the RAIL.
Durable Construction: Built with an all-metal design and a robust aluminium-steel construction, RAIL ensures long-lasting performance, even in demanding environments. The system is equipped with maintenance-free ball bearings for added durability.
Maximum Functionality: RAIL incorporates innovative technology that enhances its functionality, providing a seamless unwinding experience for maximum productivity.
Options and Accessories
There is a range of other Cable Handling Equipment and Accessories also available:
- Drum-Roll RAIL Cable Drum Roller (128-8-1)
- Drum-Roll JUMBO Cable Drum Roller (128-9-1)
- Drum-Roll CONTOUR Wheel (Pair) (128-10-1)
- Drum-Roll CARRYGRIP Carrying System for Cable Reels (Pair) (128-12-1)
Spec
| SKU |
Length (m) |
Width (m) |
Height (m) |
Load-Bearing Capacity (kg) |
Minimum Drum Diameter (mm) |
Max Drum Diameter (mm) |
Weight (kg) |
| 128-8-1 |
0.92
|
0.395
|
0.17
|
1500
|
500 |
1400
|
18
|
