SD500 - 500kg Swivel Hoisting Davit (Built in winch with 13m Cable)

Gebuwin has developed this modern designed folding swivel davit crane especially for lifting goods on location. This davit... Read More

Gebuwin SKU: 156-22-2

€2.213,11

RRP TODAY'S PRICE €2.213,11

In stock (2)

Tax included.

Product variants

Quantity

Buy from our UK store

Description

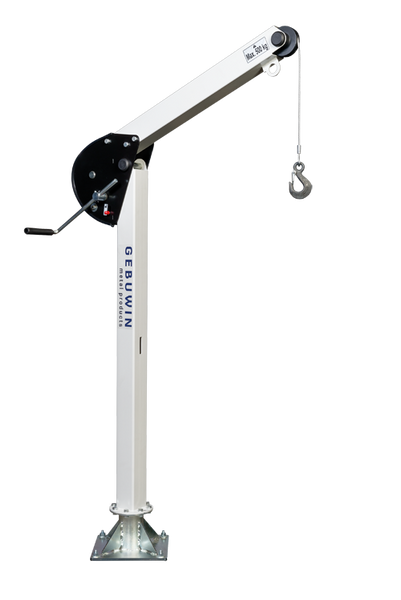

Gebuwin has developed this modern designed folding swivel davit crane especially for lifting goods on location. This davit crane helps you carry out your work efficiently without the risk of physical strain. Gebuwin produces three types of lifting davits, which vary in lifting capacity and length of the boom. Because of the integrated winch and cable, the davit crane is not only compact but also low-maintenance. The crank is also adjustable in length, so that the lifting speed can be adjusted. It is a very good solution to lift or lower a load in a very user-friendly way

Robust and safe lifting davit crane in compliance with EN13157
Ready to use in 5 seconds
Integrated winch and cable in an ergonomic modern design
Easy to transport
Load pressure brake with double ratchet system for safe stable hold of the load in any position
Possible to rotate 360° due to the use of ball bearings
Adjustable crank, with ergonomic grip
Maintenance free
The davit includes a 13 metre length wire rope (5mm diameter) with hook
Paint thickness on standard painted model is 60 – 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M – RAL 7035 (grey)
For enhanced corrosion resistant models with a either zinc or stainless steel finish, please contact our sales team sales@rigginguk.co.uk

Order as follows:

SKU 156-22-2 is for the Painted Finish Swivel Davit Only

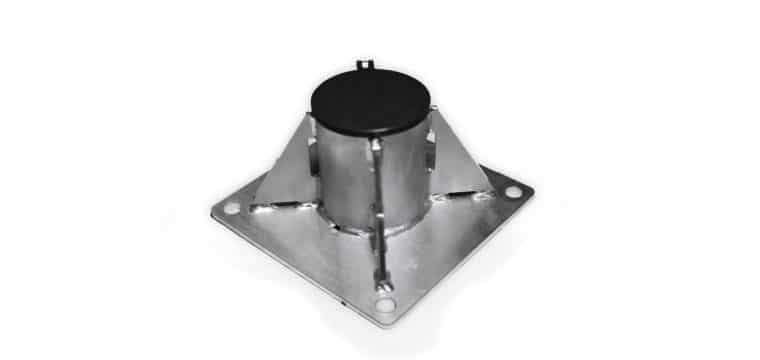

SKU 156-22-4 is for the Painted Finish Swivel Davit and Zinc Socket Box/ Base

Please note if these items are not in stock in our UK warehouse, the lead-time can be up to 3 weeks from order and will be confirmed at point of order.

Technical Info

Options	ATEX certified
Capacity 1st layer	500 kg
Capacity top layer	268 kg
Rope diameter-Ø	5 mm
Rope storage top layer	13 meter
Lift per crank rotation	20 mm
Crank effort at full load	10 daN
Weight Swivel davit	30 kg
Weight floor-socket	8,9
Type name	SD500
