Runpotec
RUNPOTEC - RUNPOCAM RC2 - 30 M INCL. RUNPOSTICKS STANDARD
If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigging-eu.co.uk
RUNPOCAM RC2 multifunctional camera with cable lengths of 10 m, 30 m and 50 m with coil including monitor bracket. In W-Boxx system case - compatible with Sortimo. Extra large 3.5" TFT LCD 16 m colour display, protection class IP67, battery operation up to 6 hours. Evidence preservation/storage function: photo, video (HD) and audio. CAMERA HEAD with 6 integrated LEDs, enclosed in robust stainless steel head (Ø 13 mm) with RTG Ø 6 mm internal thread.
Compatible to all RUNPOTEC products with RTG Ø 6 mm thread (POWER REX, RUNPOSTICKS, RUNPO 1, glass fibre rod Ø 4.5 - 6 - 7.5 - 9 - 11 - 15 mm).
Optimal field of application: For pipe inspections over long distances of up to 50 m. As of 14 mm inner diameter (corresponds to empty pipe Ø 20 mm), but also for larger pipe cross-sections (ventilation systems, drainage systems, sewage pipes etc.). In combination with the RUNPOSTICKS, excellent for cavity wall inspections, suspended ceilings (above high ceiling profiles), manhole and underfloor ducts, maintenance and system inspections. Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com. Scope of delivery: RUNPOCAM RC2 with cable including reel in system case.
Accessories: RUNPOGLEITER with front thread, system slide, LED-battery high performance 320 lumen lamp, Micro Memory Card 8 GB, magnetic catch set, connecting thread set RG Ø 6 mm, catch hook, 2-fold USB charging plug 12 V, flexible attachment 12 cm, USB cable 3 m, 2-fold USB charging plug 230 V, threaded attachment RC 2, USB charging cable for LED-battery lamp
RUNPOSTICKS Comfort – 19 parts
The new basalt technology allows extreme bending radii, however, the rods retain high dimensional stability. All connections have a RUNPOTEC RTG Ø 6 mm thread, have no butt edges or thread transitions. Objects weighing up to 2.5 kg can be held with the magnet. In combination with the magnet, the ball chain enables targeted locating or guiding to wall openings. In addition, the Comfort package includes the special sliding hook and can easily overcome obstacles up to 8 cm high thanks to the tilt function. The shockproof LED lamp also included has a very high luminosity and extremely long illumination time due to its AAA Duracell battery. All accessories can be perfectly stored in the practical storage bag with carrying strap. Optimal area of application: suspended ceilings, cable ducts, hollow walls, retroactive cabling for non-routed cables, underfloor shafts, various bushings and much more. Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com. Scope of delivery: 5 x RUNPOSTICKS red (hard) Ø 7.5 mm, 3 x RUNPOSTICKS black (medium) Ø 5.5 mm, 2 x RUNPOSTICKS yellow (soft) Ø 4.5 mm, 1 x RUNPOGLEITER, 1 x extra strong magnet, 1 x ball chain, 1 x eyelet with ring, 1 x catch hook, 1 x connecting thread, 1 x storage bag, 1 x special sliding hook, 1 x shockproof LED lamp

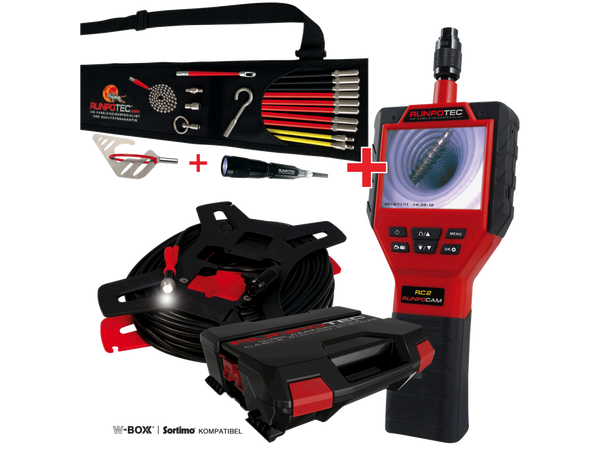

Application video:a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com. Scope of delivery:RUNPOCAM RC2 with cable incl. reel in system case. Accessories: RUNPOGLEITER with front thread, system slide, LED-battery high performance 320 lumen lamp, Micro Memory Card 8 GB, magnetic catch set, connecting thread set RG Ø 6 mm, catch hook, 2-fold USB charging plug 12 V, flexible attachment 12 cm, USB cable 3 m, 2-fold USB charging plug 230 V, threaded attachment RC 2, USB charging cable for LED-battery lamp, RUNPOSTICKS Comfort – 19 parts
ADVANTAGES

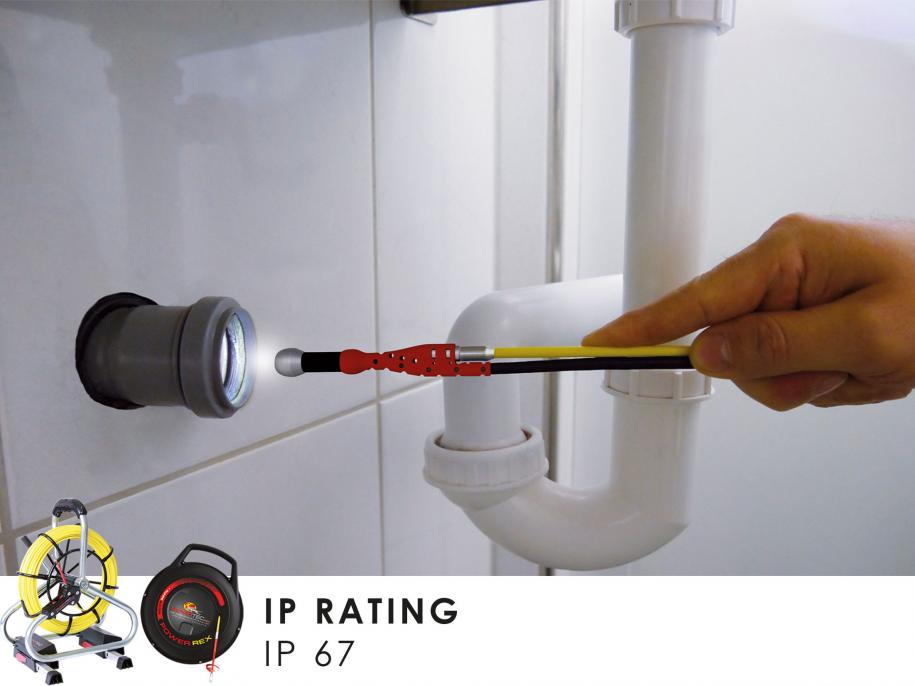

Protection class IP67
Pipe inspection from Ø 14 mm (inside) Ventilation pipes, drainage pipes, sewage pipes and much more
Also for cavity inspection and suspended ceilings lengths 10 m, 30 m or 50 m
Memory function/documented evidence Photo (JPG), Video HD (AVI) and Audio
Spool with camera cable can be easily unwound or rewound via the X BOARD series
Spec
Dimensions:
L 442 x B 404 x H 142 mm
Recommended tube-Ø:
As of 14 mm inner diameter
Case size:
B 395 x L x 434 mm - H 135 mm
Monitor:
3.5" TFT LCD Monitor 16 M color
Camera probe:
345.000 Pixel (640 x 480)
Illumination:
6 x LED (integrated in camera probe)
Protection rating:
IP 67 (camera probe and cable)
Field of view:
64 °
Focussing distance:
30 mm - 80 mm
Power Supply:
230 V or battery-operated (battery included)
Languages:
DE, EN, FR, ES, PT, IT, NL, DA, SE, NO, FI, PL, CS, HU, RU, IS, LT, SK, SLO, HR, TR
