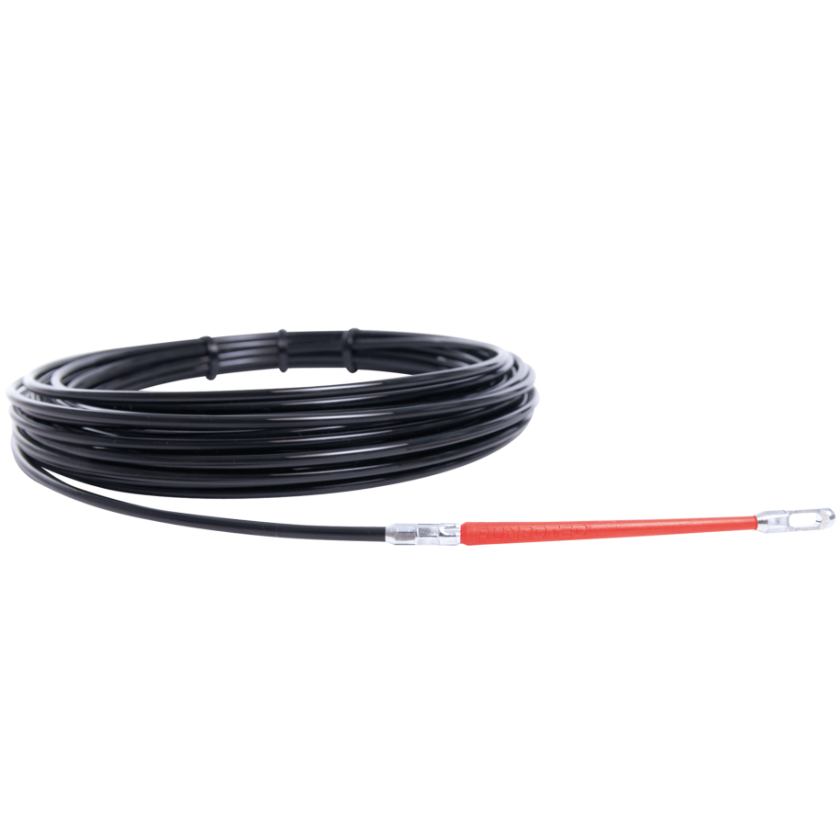

The RP1 - special plastic strap Ø 4 mm with the  RG6 guiding head the tip and a detachable eyelet head at the end, is a favourable variant to the RP5. is a favourable variant to the RP5. Perfectly suited for small pipe dimensions and shorter sections. The RG6 guiding head with large eyelet hole, the high total breaking load of 170 kg and the bending radius of 15 mm make the RP1 a pull-in tool which is far ahead of conventional nylon straps.

Optimal application area: for pipe inner diameter Ø 9 mm - 25 mm

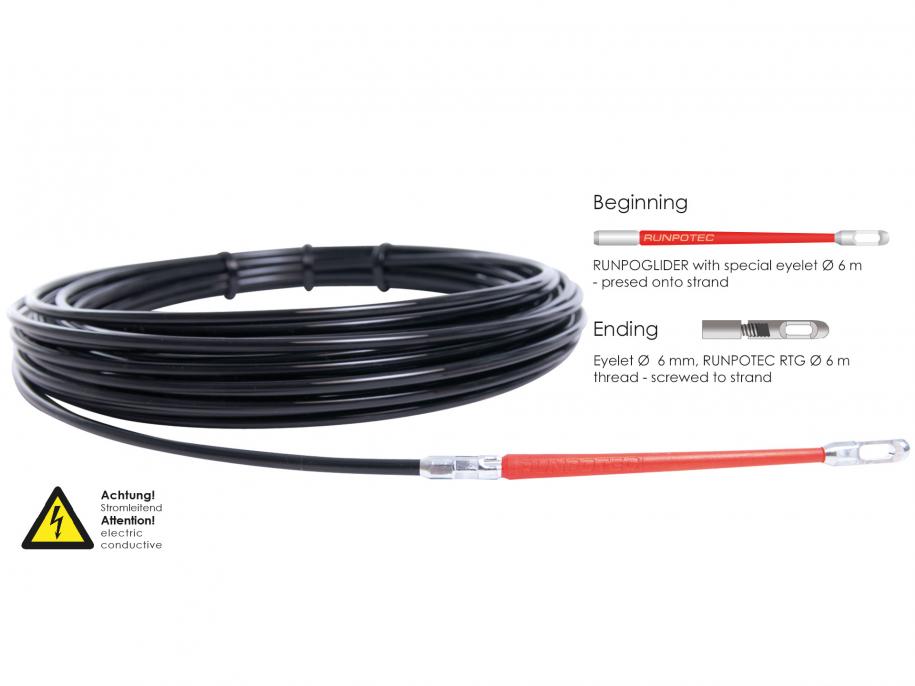

Scope of delivery: RP1 incl. 1 x pressed RG6 RUNPOGLEITER (guiding head) without swivel at the strap tip and 1 x screwed eyelet head (RUNPOTEC RTG Ø 6 mm) at the strap end.

Advantages

• Fracture stable
• 170 kg total breaking load
• Patented RUNPOGLEITER with eyelet
• Strap end RUNPOTEC RTG Ø 6 mm thread

Download - EN-RUNPOTEC-Data-sheet-RP1-Cable-pulling-tool-30027-30043.pdf
