Quick Link Standard Type

GT SKU: 286-1404-1

1 2

Quick Link Standard Type This QUICK LINK is designed to be used as a connecting part between components. Manufactured from mild steel with an electro galvanised finish. Commercial quality, untested. Not to be used for height safety, PPE or climbing applications. Choose from sizes starting at 3mm diameter up to 12mm dia Read More

€0,75

RRP TODAY'S PRICE €0,75

In stock (64)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

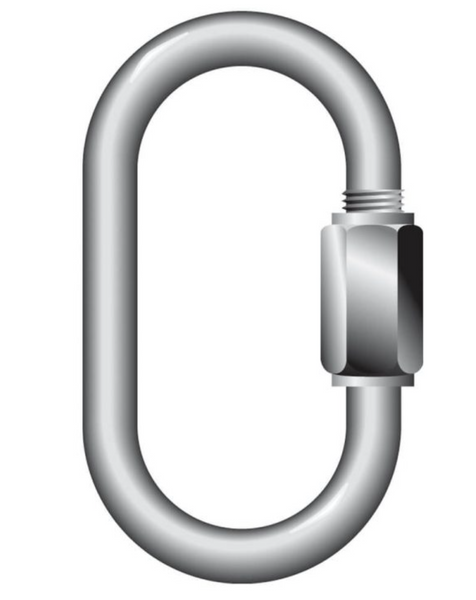

Quick Link Standard Type

This QUICK LINK is designed to be used as a connecting part between components.
Manufactured from mild steel with an electro galvanised finish.
Commercial quality, untested. Not to be used for height safety, PPE or climbing applications.
Choose from sizes starting at 3mm diameter up to 12mm diamater.
Supplied with Declaration of Conformity.

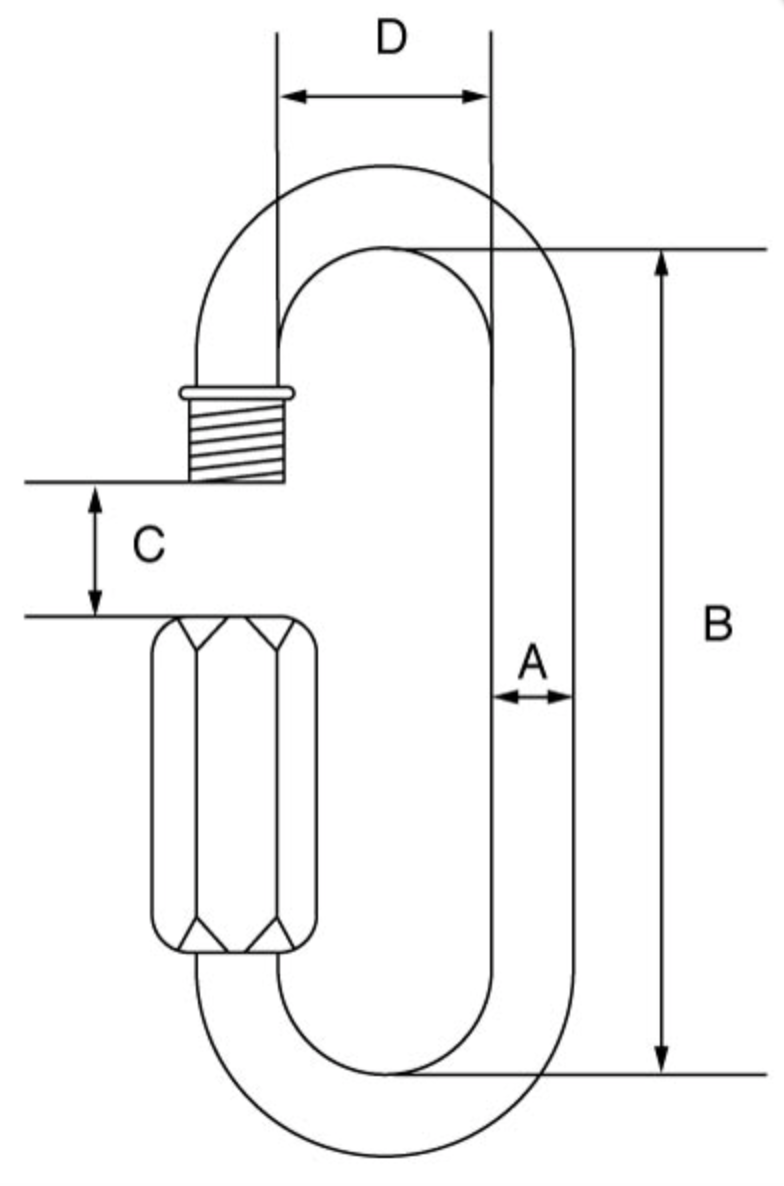

Specification

SKU	A	B	C	D	Weight
	mm	mm	mm	mm	kgs/100
286-1404-1	3.5	29	5	10	1.2
286-1404-2	4	31.5	5.5	11.5	2.1
286-1404-3	5	38	6.5	13	2.2
286-1404-4	6	45	7.5	14	3.6
286-1404-5	7	52	8	16	5
286-1404-6	8	60	10	18	7.8
286-1404-7	9	63	11	19	10
286-1404-8	10	69	12	20	13.8
286-1404-9	12	83	15	25	20
