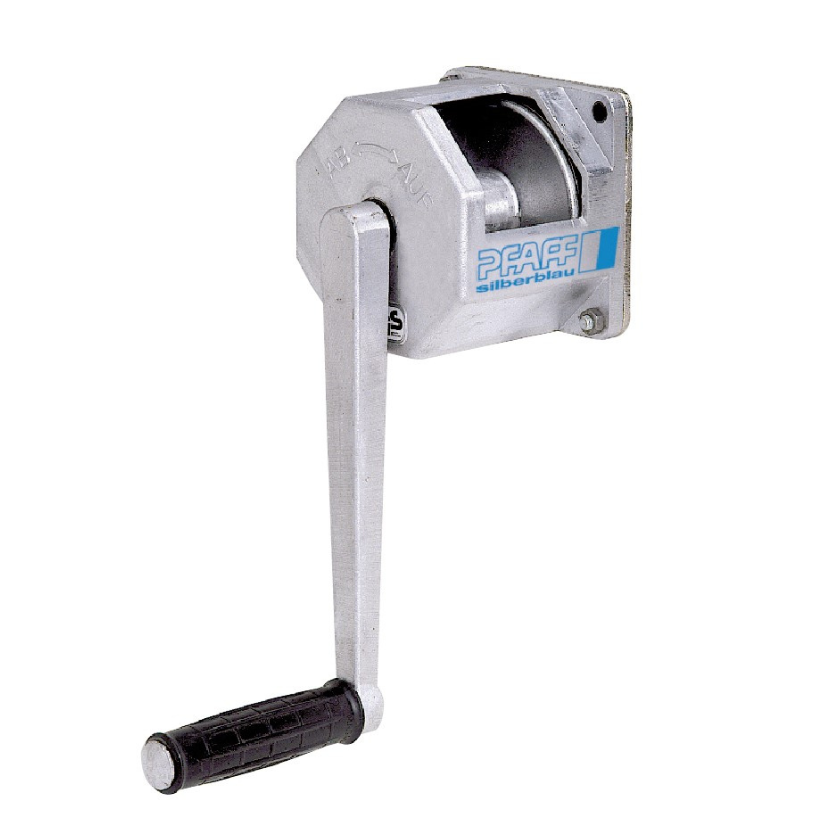

Pfaff SW-W (SG) 125 Wall-Mounted Winch - 125kg Capacity with Aluminium Housing

Wall-mounted rope winches of the SW-W model range are intended for fixed stationary mounting inside a building, this model supports loads up to 125kg. The steel wire rope is guided to the required suspension point of the load by means of deflection sheaves.

Features and benefits include:

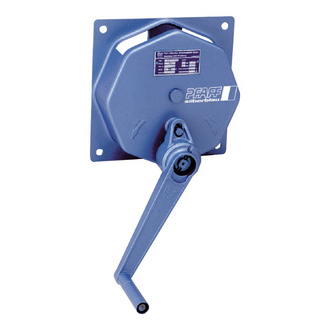

• Robust aluminium housing for models SW-W 80 and SW-W 125, proven steel plate design for models SW-W 300 - 750.
• Spur gear drive for optimal efficiency and comfortable handling. Direct drive for loads up to 125 kg.

• The low-noise safety spring brake safely holds the load in every position.
• Removable hand crank for models SW-W 80 and SW-W 125, foldable crank for models SW-W 300 - 750.
• Easy and quick mounting onto walls.
• Wire rope sold separately.


Recommended Wire Rope: DIN EN 12385 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.

UKCA / CE Mark where required and with Certification

Download - pfaff-sw-w-manuals.pdf

Download - pfaff-sw-w-ds.pdf
